Mofo RC | BAM Brushless Motor & High Speed Race Mount Combos (For Axial® SCX24™)

Mofo RC | BAM Brushless Motor & High Speed Race Mount Combos (For Axial® SCX24™)

Regular price $98.00 CAD
Regular price Sale price $98.00 CAD
Sale Sold out
Shipping calculated at checkout.
Mofo RC | BAM Brushless Motor 1900Kv - 2200Kv - 4100Kv (For Axial® SCX24™) (Kv Rating)

The BAM high speed race motor combos are for those looking for the most overall torque, power, and speed. With the multiple KV options, you can find the best motor for your setup. For the fastest speed, run 2s and the 4100Kv option. Looking to use 3-4s? Run the 1900Kv or 2200Kv for the best overall performance.

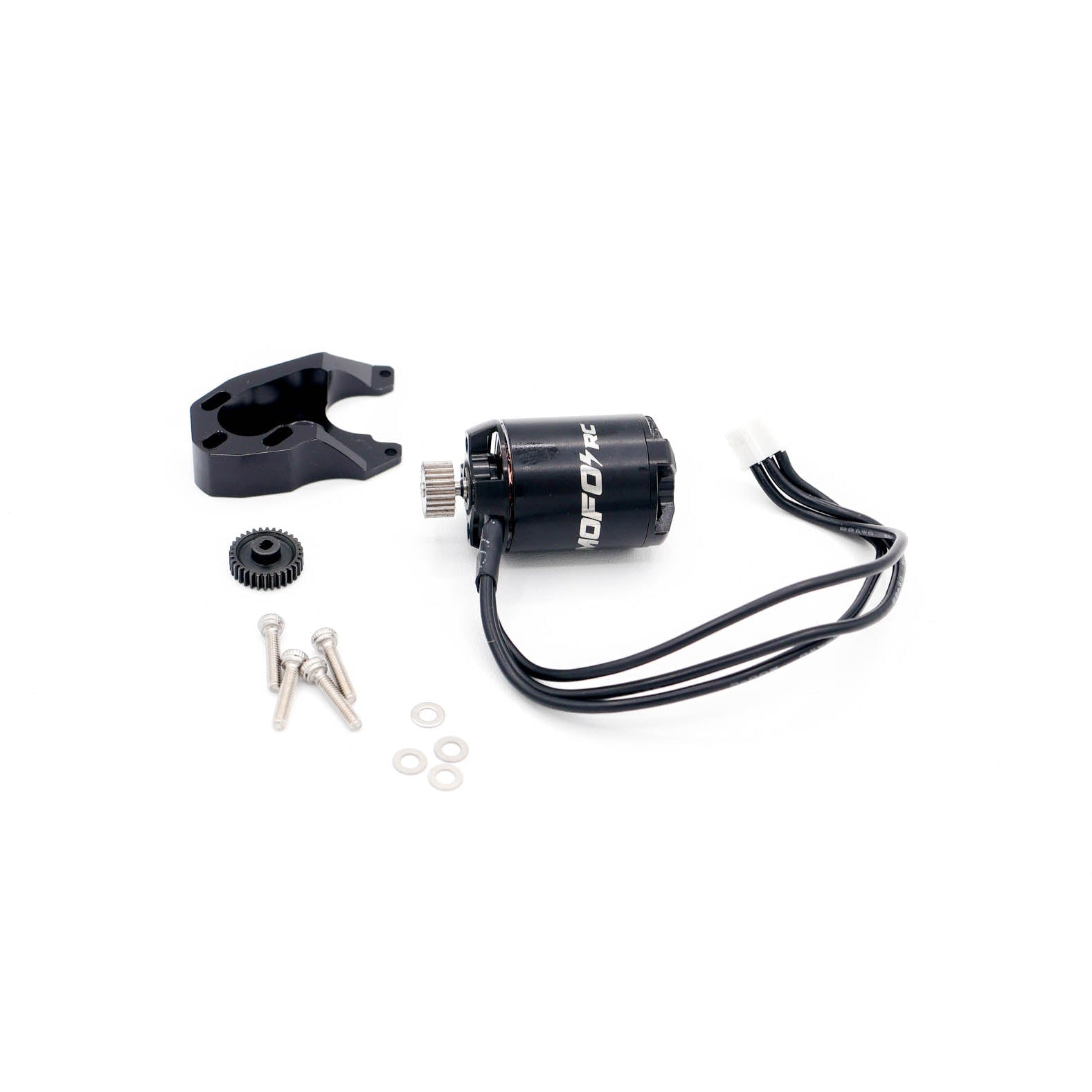

This combo includes:

  • Mofo RC | BAM Brushless Motor of choice
    • Includes Mod.3 24t pinion installed
  • Mofo RC | 12mm Race Motor Mount
  • Mofo RC | 32t Mod.3 Tiny Spur Gear

Note: This combo has a very tight clearance and may take some time to get things just right.  With these setups, it is very important that you monitor your motor temperatures closely. This is good practice for any motor system in our hobby. Running these very tall geared setups can overheat when running hard, with excess drivetrain drag, or on very hot days.

Specs and Dimensions

Kv 1900, 2200, 4100
Voltage 2-4s Lipo (1900/2200Kv), 2s (4100 Kv)
Bolt Pattern 12mm
Poles 12 Pole, 9 Slot
Stator Diameter/Length 13mm x 16mm
Shaft Diameter 2mm (Accepts Press-Fit Pinions Only)
Case Diameter/Length 18mm x 28mm
Weight 28 grams
Wire Length 125mm
Connector Standard PH2.0 3 pin
