Mofo RC | NanoBAM 3500Kv Brushless Motor/Reaper ESC/ Forward Mount/Trans Combo (For Axial® SCX24™)

Mofo RC | NanoBAM 3500Kv Brushless Motor/Reaper ESC/ Forward Mount/Trans Combo (For Axial® SCX24™)

Regular price $210.00 CAD
Regular price Sale price $210.00 CAD
Sale Sold out
Shipping calculated at checkout.
Mofo RC | NanoBAM 3500Kv Brushless Motor (Select Motor only or With gear)
Mofo RC | Bulletproof Transmission - Aluminum or Brass (For Axial® SCX24™/AX24™) (Material)
Mofo RC | Bulletproof Transmission - Aluminum or Brass (For Axial® SCX24™/AX24™) (Color)

The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body.

Includes

  • Mofo RC | NanoBam 3500kv Motor w/ Pinion of Choice
    • Mod.3 is most common
      • 11t is standard
      • 14t is slightly faster
  • Mofo RC | 9mm Aluminum Forward Facing Mount
  • Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
    • Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.

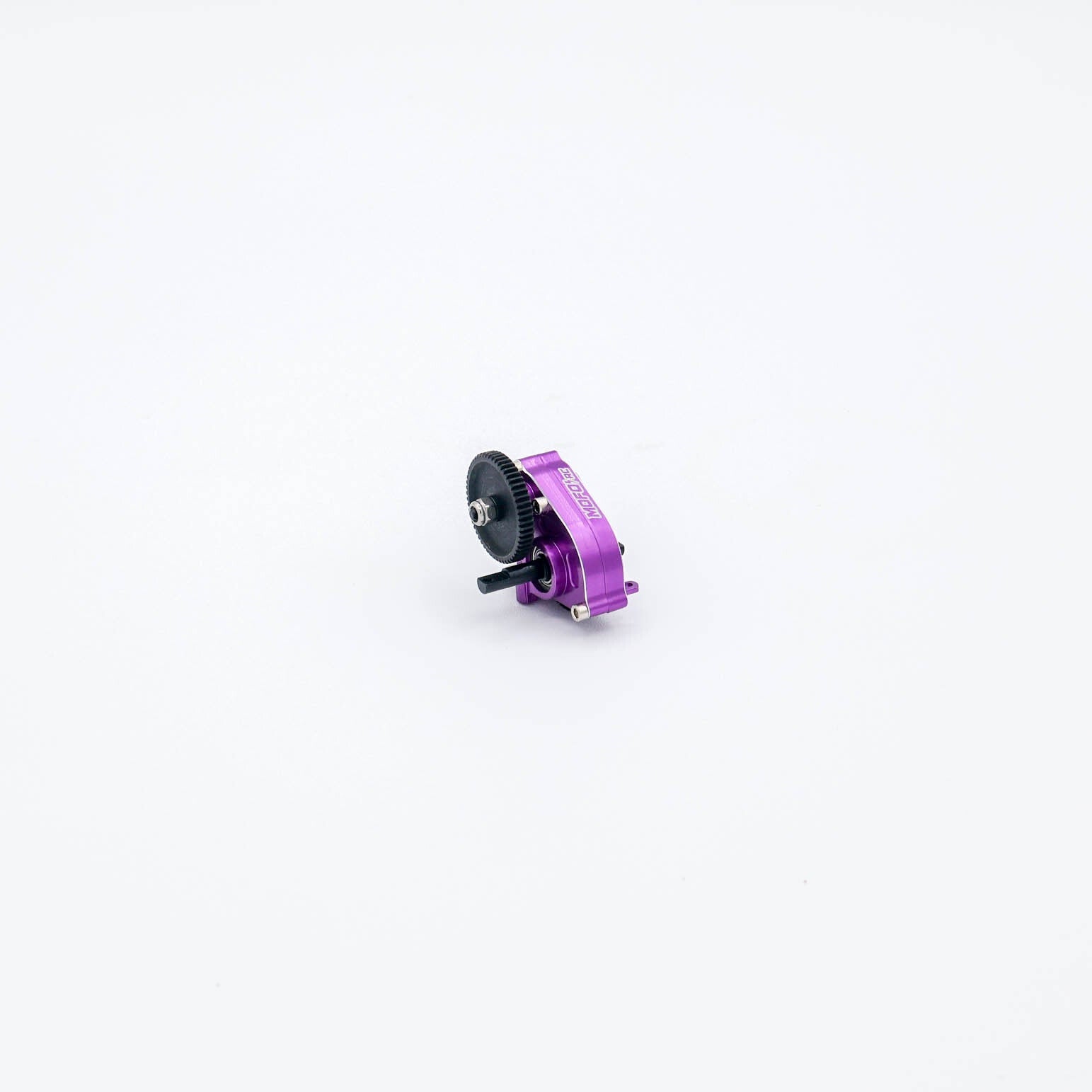

  • Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
    • Includes both Mod.3 and Mod.5 Spur Gears

Specs and Dimensions

KV 3500
Voltage 2-3s Lipo
Bolt Pattern 9mm
Poles 12 Pole, 9 Slot
Stator Diameter/Length 12mm x 11mm
Shaft Diameter 1.5mm (Accepts Press-Fit Pinions Only)
Case Diameter/Length 16.3mm x 21mm
Weight 16 grams
Wire Length 125mm
Connector Standard PH2.0 3 pin


Notes: This combo may require some plastic trimming in stock vehicles or moving of components like the battery tray.
