Medium Velocity Pancake, "MVP" Brushless Motor / Aluminum Mount for scx24

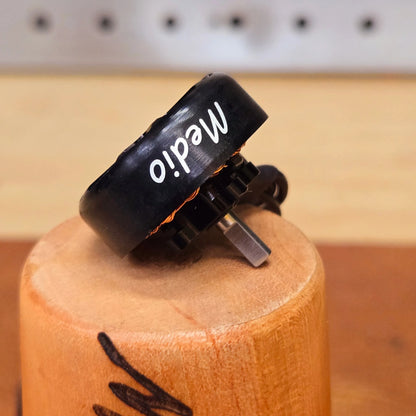

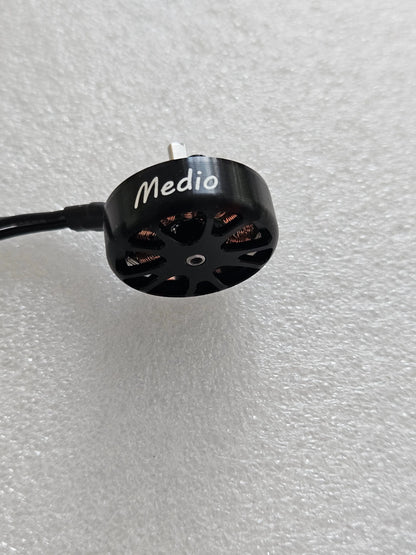

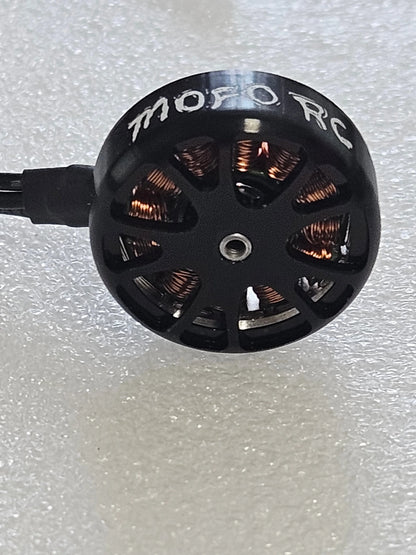

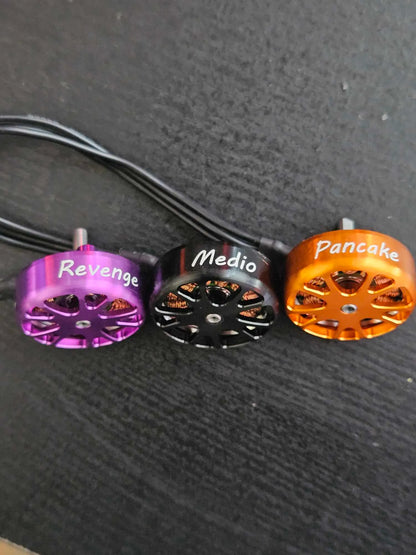

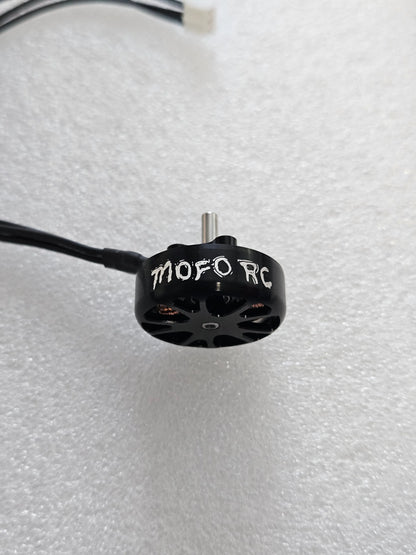

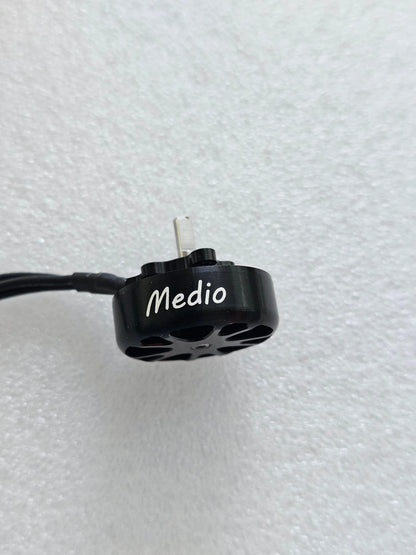

This is the new Pancake motor from Mofo Rc, It is the Medio, The MVP, The Medium velocity pancake, Just like the name suggests it is 50% faster than the SMP, and 50% slower than the ROP.

For those looking for a good all around go between from the Normal speed SMP and the High Speed ROP now you get a go to if you just need something in the middle.

The motor is 2550 KV is capable of both 2s and 3s or even 4s power. The motor is extremely smooth and precise. Has a ton of torque and superior low speed control especially when paired with the Rockwolf esc.  Aluminum mount is for 12mm bolt pattern motors, It has room for gears up to 24T mod.3 or 14T mod.5 Also uses 3 mounting hole pattern for superior strength and heat distribution.

 The options will be as follows

Mod.3 with mount will come with a 18T mod.3 Steel pinion gear pre-installed and pressed on, And a forward facing aluminum Mount as shown, This would be the option if you are using the stock scx24 spur gear or an aftermarket spur gear that is mod.3 pitch.

Mod.5 with mount will come with a 11T mod.5 Steel pinion gear pre-installed and pressed on, And a forward facing aluminum Mount as shown, This would be the option if you are using an aftermarket spur gear that is mod.5 pitch, Not the stock scx24 spur gear.

Motor Only no gear or mount, This will be the motor only, It will come with the wires and connector installed but no motor mount and no pinion gear installed. You will need a mount and you will have to use a pinion gear that is designed for a 3mm shaft, This DOES have the cutout for use with a pinion gear that uses a set screw or you can use the press on 3mm gears at moforc.com

The motor has a 10th scale size 3mm shaft with the cutout for use with either press on 3mm gears that are sold on this site or can also be used with set screw style 3mm pinion gears. The motor mount bolt spacing is 12mm center to center,

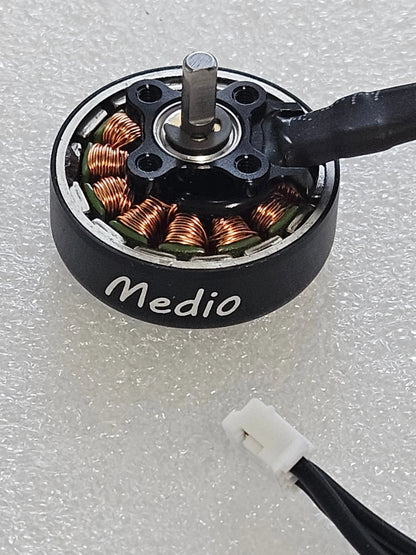

Motor outside diameter is appx 26mm wide. The depth of the motor is just 13mm, The KV is 2550, The motor has 14 magnetic poles and 12 stationary slots. Motor weight is 18 grams.
