MEUS Racing | Isokinetic V2 Metal +5mm SCX24 Front & Rear Axle Set with 3-Section CVD

Key Features:

• V2 upgraded version of MEUS Racing SCX24 Isokinetic axles, suitable for Axial 1/24 RC crawler, Axial SCX24 Deadbolt C10 JLU Gladiator Bronco.

• The spherical design differential shell and axle housing are made of aluminum alloy with an anodized surface. The front axle is 83g and the rear axle is 32g.

• Comes with brass steering knuckles and diff cover to increase the weight on the front axle to improve traction, climbing ability, and steering response.

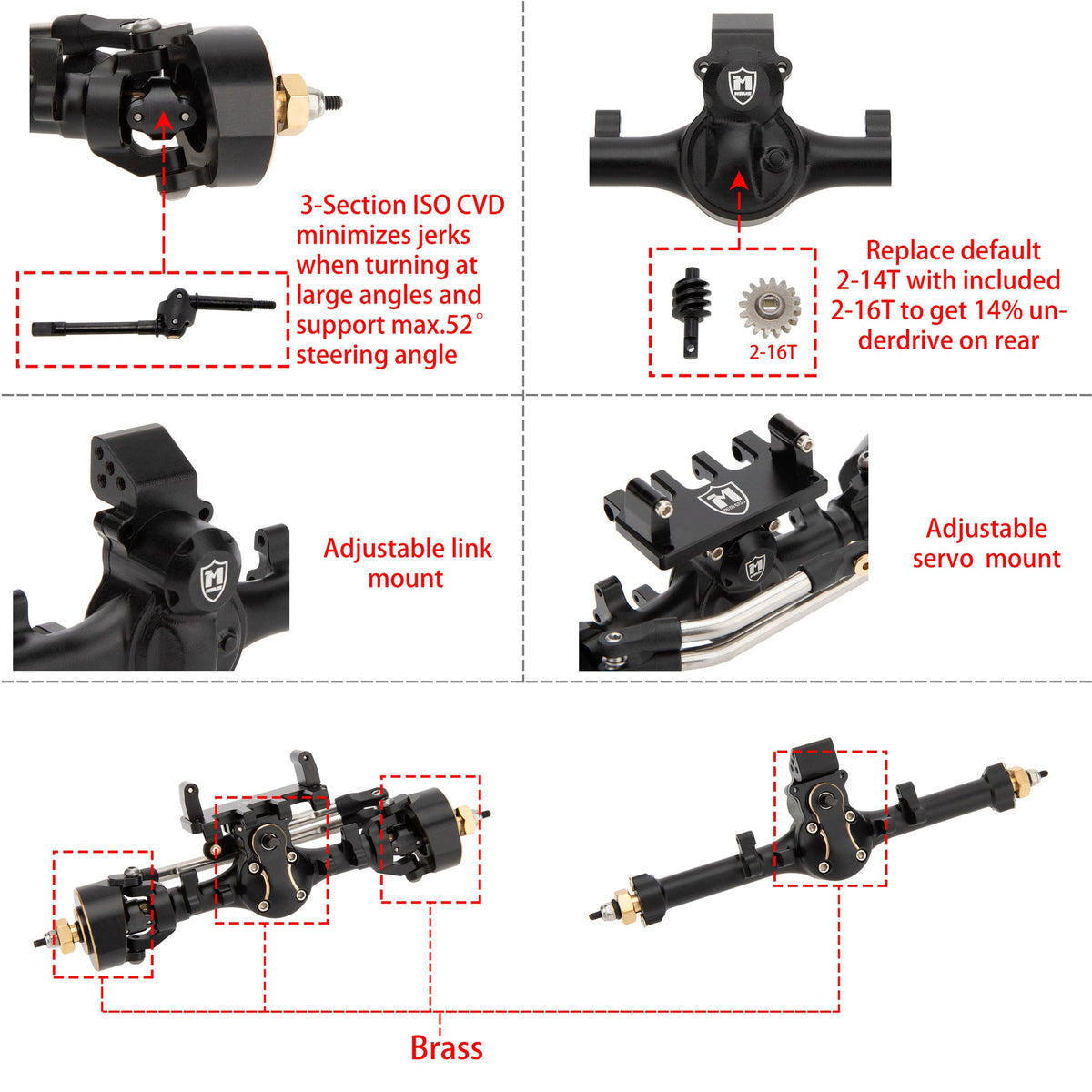

• US patented (Patent No.: US D1,052,393 S) Isokinetic 3-section CVD effectively minimizes the jerks when turning at large angles and supports a max.52° steering angle.

• Front axle equipped with customized thickened 2-14T gears, and the rear axle equipped with a conventional 2-14T gear. Front axle is not compatible with standard SCX24 gears.

• The rear axle comes with 2-16T gears to get underdrive to increase front wheel speed and prevent the buggy from rolling over when climbing.

• If you want the front wheels to overdrive, please change the differential gear of the front axle to our customized thickened 2-12T.
• The front and rear axles are +5mm wider on both sides, with a 10° kingpin inclination angle, and feature Ackerman steering. The rear axle adds an integrated rear riser truss.


Specifications:

• Axle housing material: Aluminum Alloy
• Steering knuckle material: Brass
• Diff cover material: Brass
• Servo mount material: Aluminum Alloy
• Front axle weight: 83g(Including the servo mount and steering links)
• Rear axle weight: 32g

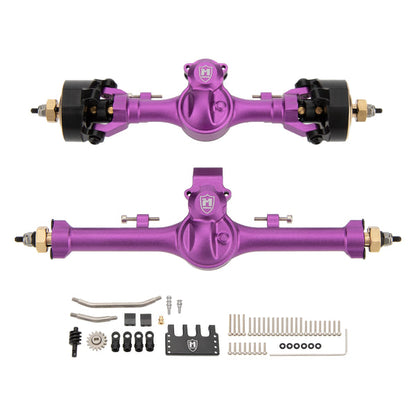

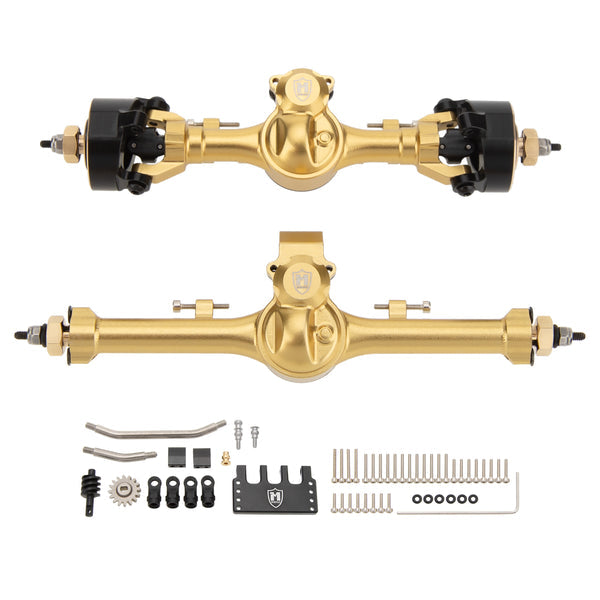

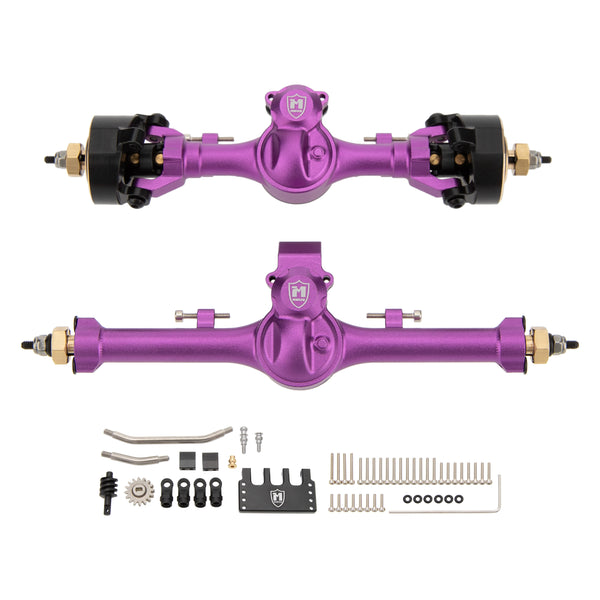

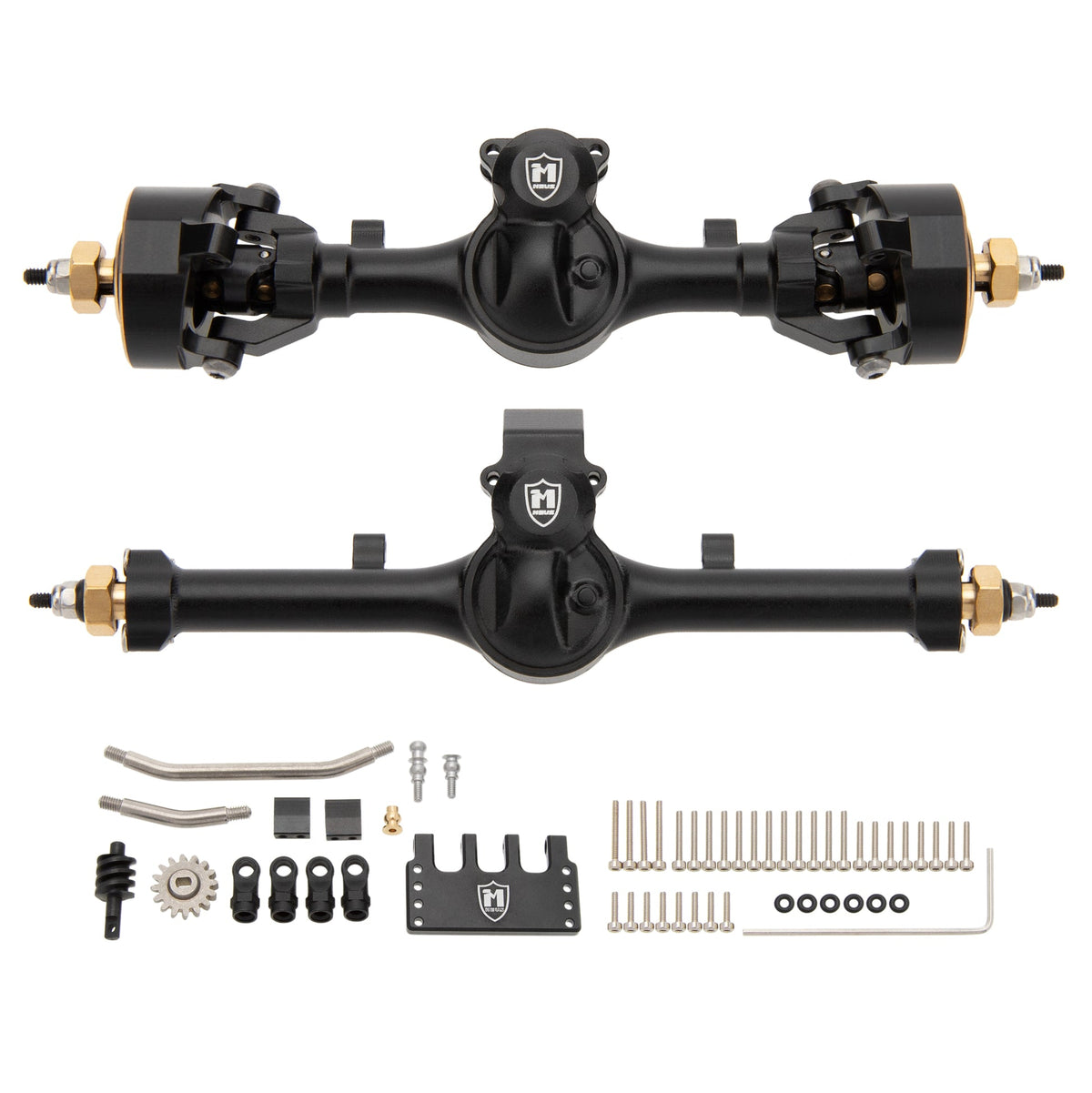

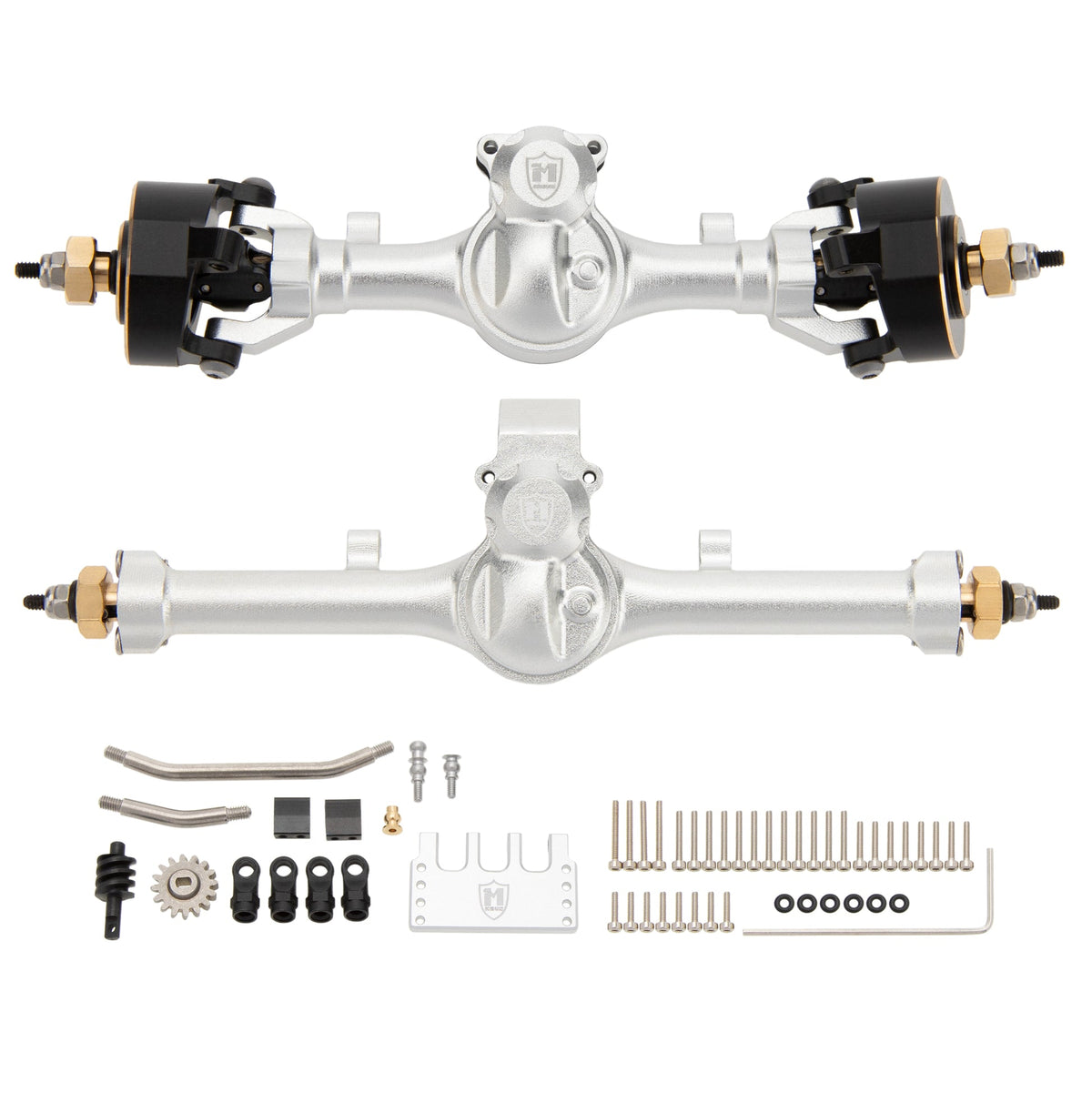

• 1 × SCX24 Metal Isokinetic front axle

• 1 × SCX24 Metal rear axle
• 1 × Steering Links
• 1 × 2-16T rear axle underdrive diff gear
• 1 × Servo Mount

• 1 × Screws set and screw tool
• 1 × Rubber O-rings
