Mofo RC | NanoBAM 3500Kv Brushless Motor & Reaper ESC Combo w/ LCG Standard Mount (For Axial® SCX24™/AX24™)

Mofo RC | NanoBAM 3500Kv Brushless Motor & Reaper ESC Combo w/ LCG Standard Mount (For Axial® SCX24™/AX24™)

Regular price $175.00 CAD
Regular price Sale price $175.00 CAD
Sale Sold out
Shipping calculated at checkout.

The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body.

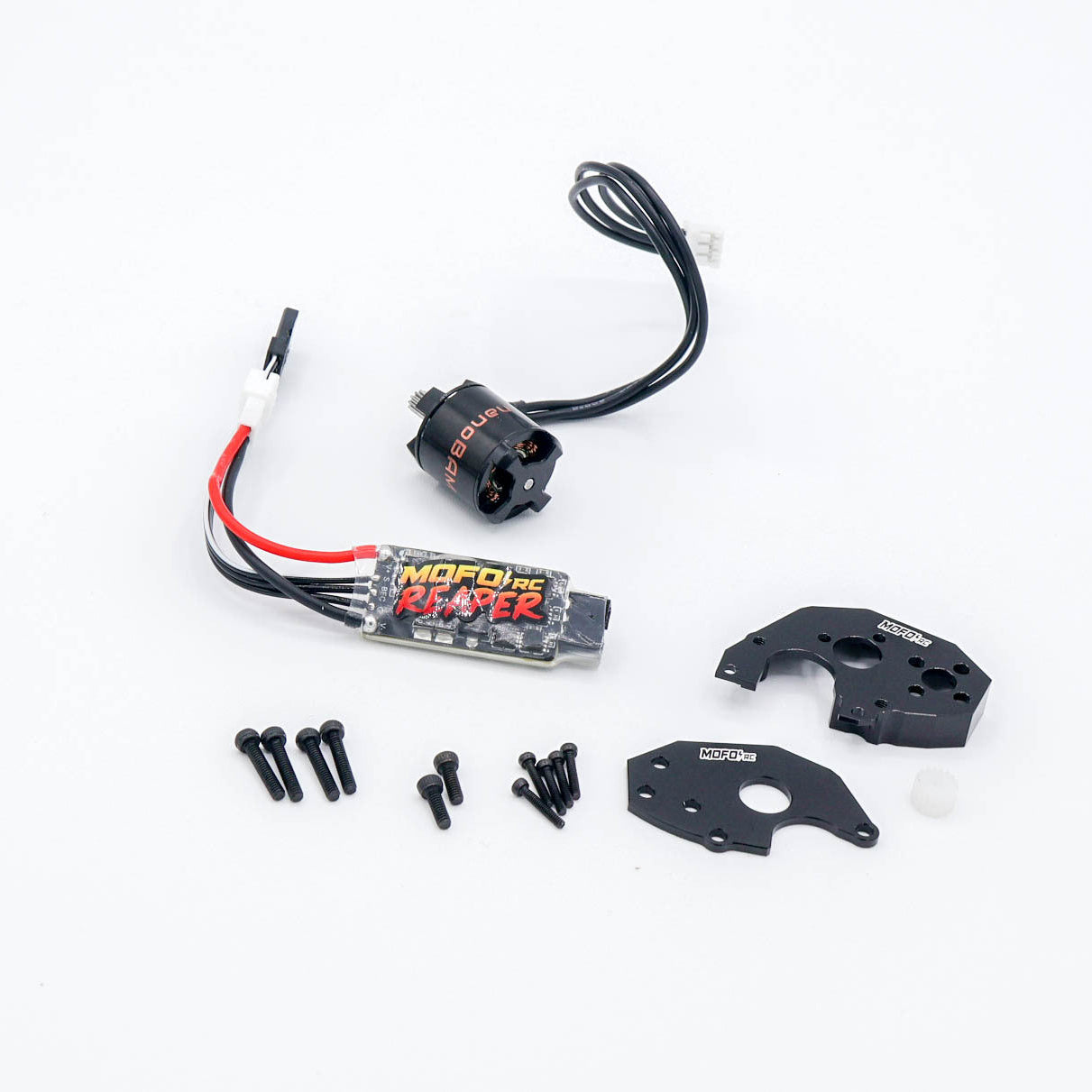

Includes

  • Mofo RC | NanoBam Motor w/ Mod.3 11t Pinion
  • Mofo RC | 9mm Aluminum Forward Facing Mount
  • Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
    • Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.

Specs and Dimensions

KV 3500
Voltage 2-3s Lipo
Bolt Pattern 9mm
Poles 12 Pole, 9 Slot
Stator Diameter/Length 12mm x 11mm
Shaft Diameter 1.5mm (Accepts Press-Fit Pinions Only)
Case Diameter/Length 16.3mm x 21mm
Weight 16 grams
Wire Length 125mm
Connector Standard PH2.0 3 pin


Notes: This combo may require some plastic trimming in stock vehicles or moving of components like the battery tray.
