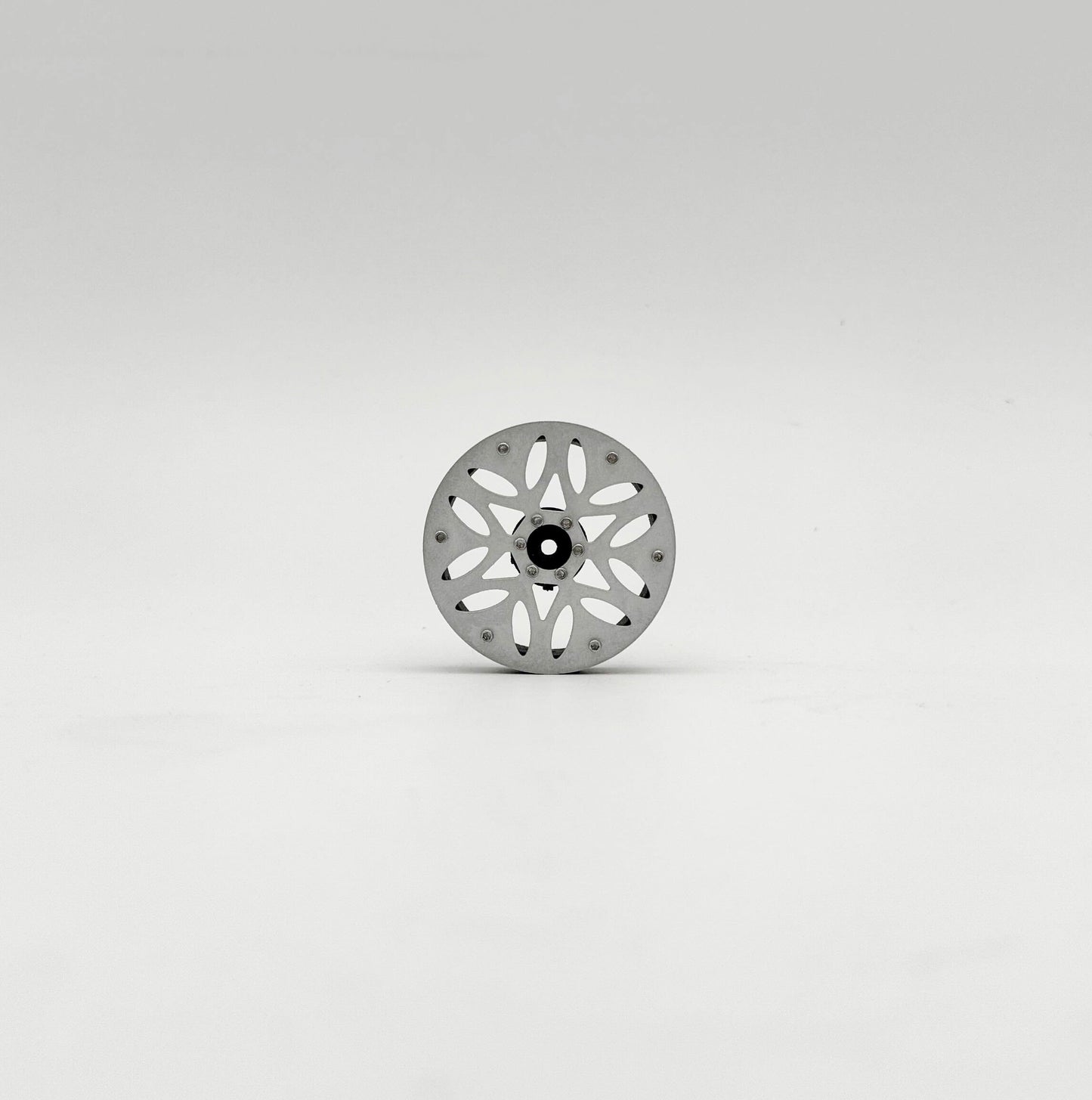

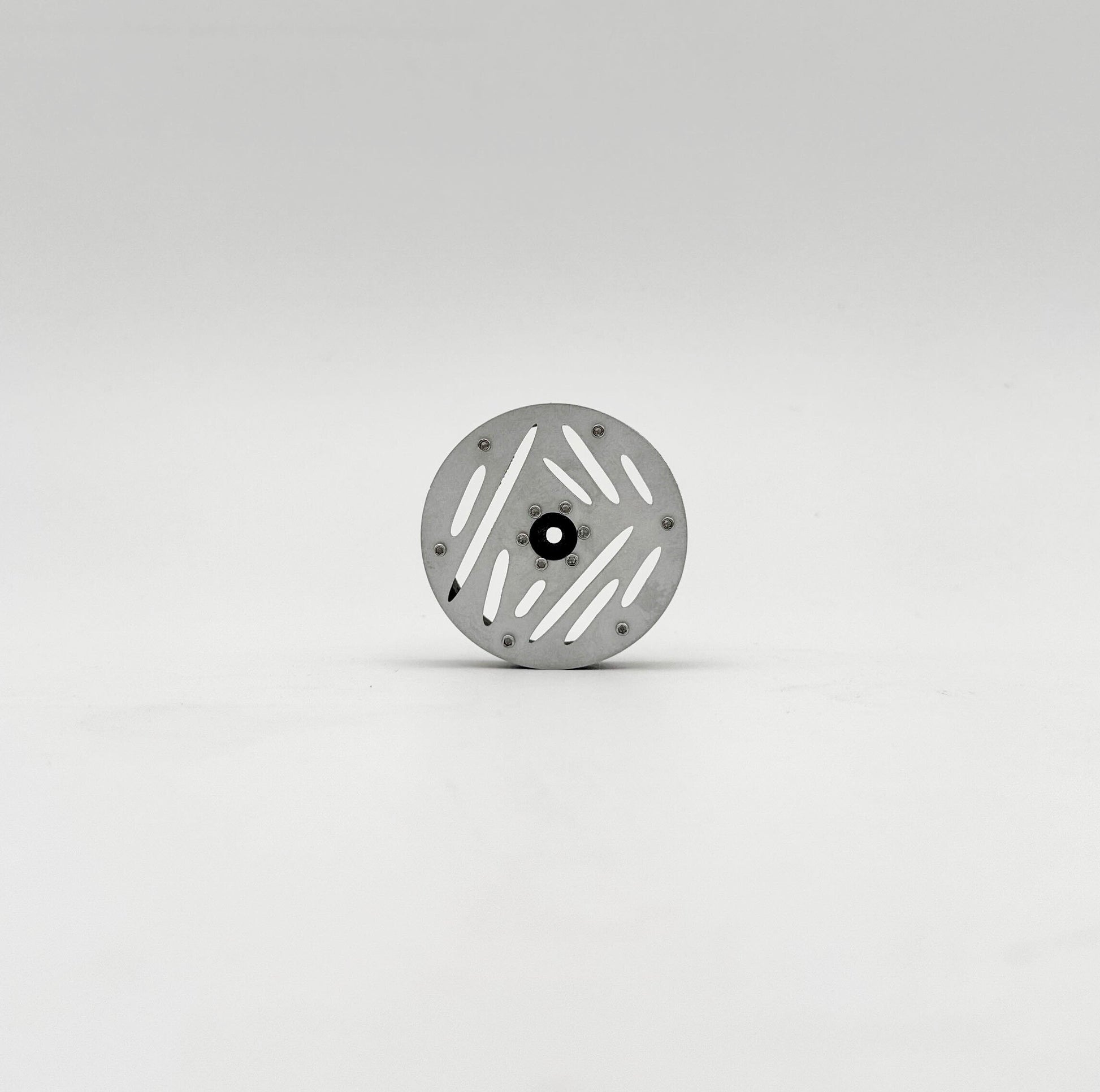

Mofo RC | RidgeBeast Super 1.8" Wheel Series (Aluminum)- Made in Texas

Our RidgeBeast Super 1.8" wheel series is manufactured entirely in Texas and is exactly what you need to take your Class 3 crawler to the next level.

Design a wheel set perfectly suited to your needs. By combining materials on the inner and outer faces, you can customize the weight distribution to optimize your vehicle’s performance. Need extra weight up front? Simply add stainless steel inner rings. For even greater control, mix stainless steel with aluminum faces. Since stainless steel weighs twice as much, it’s the ideal choice to add weight exactly where you want it, enhancing your vehicle’s balance and handling.

Features

• Adjustable Weight Bias
• Vented Nylon Barrels
• Multiple Hub Options
  • Use Included Nylon M1.4 Hubs for Scale Looks
  • Use our optional MF6 M2 Hubs for more width and weight options.
• M1.4 Hardware or M2 Option
• Compatible with other manufacturer rings/Barrels, ex: HardPark RC
• Tire Compatibility: 1.0" 57MM+ Diameter or 1.3"
  • Choice depends on your tire profile requirements

Dimensions

• Barrel Diameter: 49mm
• Barrel Width: 11mm
• Inner Wheel Clearance: 37.5mm

Weights

• Vented Barrel: 3g Each
• Face
  • Aluminum: ~5g each
  • Stainless: ~13g each
• Inner Ring
  • Aluminum: 2g each
  • Stainless: 6g each
• Nylon Hub: 0.5g each
• Assembled
  • Aluminum: ~12g
  • Stainless: ~24g

Includes:

• 4 x Nylon Wheel Barrels
• 4 x Aluminum Front Faces
• 2 x Front Inner Ring of Choice
• 2 x Rear Inner Ring of Choice
• 1 x Nylon Hub Tree
• 1 x Tire Cutting Jig
• M1.4 Hardware Bag

Installation Steps

1. Insert ring into tire with cutting circle on face of tire.
2. Trace along outer ring with marker.
3. Cut tire along line.
4. Repeat on each side.

Note: These wheels are larger than our previous super wheels and match industry standards. The weight will vary slightly based on the exact design chosen. Also, our current MF6 hubs utilize a lip. This may prevent the hub from sitting fully flush.
