Mofo Rc

Mofo RC | ROP 3400Kv Brushless Pancake Motor/Reaper ESC/Mount + Transmission Combos- (For Axial® SCX24™/AX24™)

Mofo RC | ROP 3400Kv Brushless Pancake Motor/Reaper ESC/Mount + Transmission Combos- (For Axial® SCX24™/AX24™)

Regular price $203.00 CAD
Regular price Sale price $203.00 CAD
Sale Sold out
Shipping calculated at checkout.
Mofo RC | ROP 3400Kv Brushless Pancake Motor (With or Without pinion gear installed)
Mofo RC | Bulletproof Transmission - Aluminum or Brass (For Axial® SCX24™/AX24™) (Material)
Mofo RC | Bulletproof Transmission - Aluminum or Brass (For Axial® SCX24™/AX24™) (Color)

The Mofo RC "ROP" Revenge Of Pancake 3400Kv Brushless Motor delivers exceptional speed and power, featuring twice the RPM of the SMP motor. Engineered for those who demand kick-in-the-pants performance, it offers ultra-smooth low-end torque alongside a powerful surge at high speeds, making it the ideal choice for maximizing your crawler's acceleration and power. Perfect when paired with our Reaper ESC.

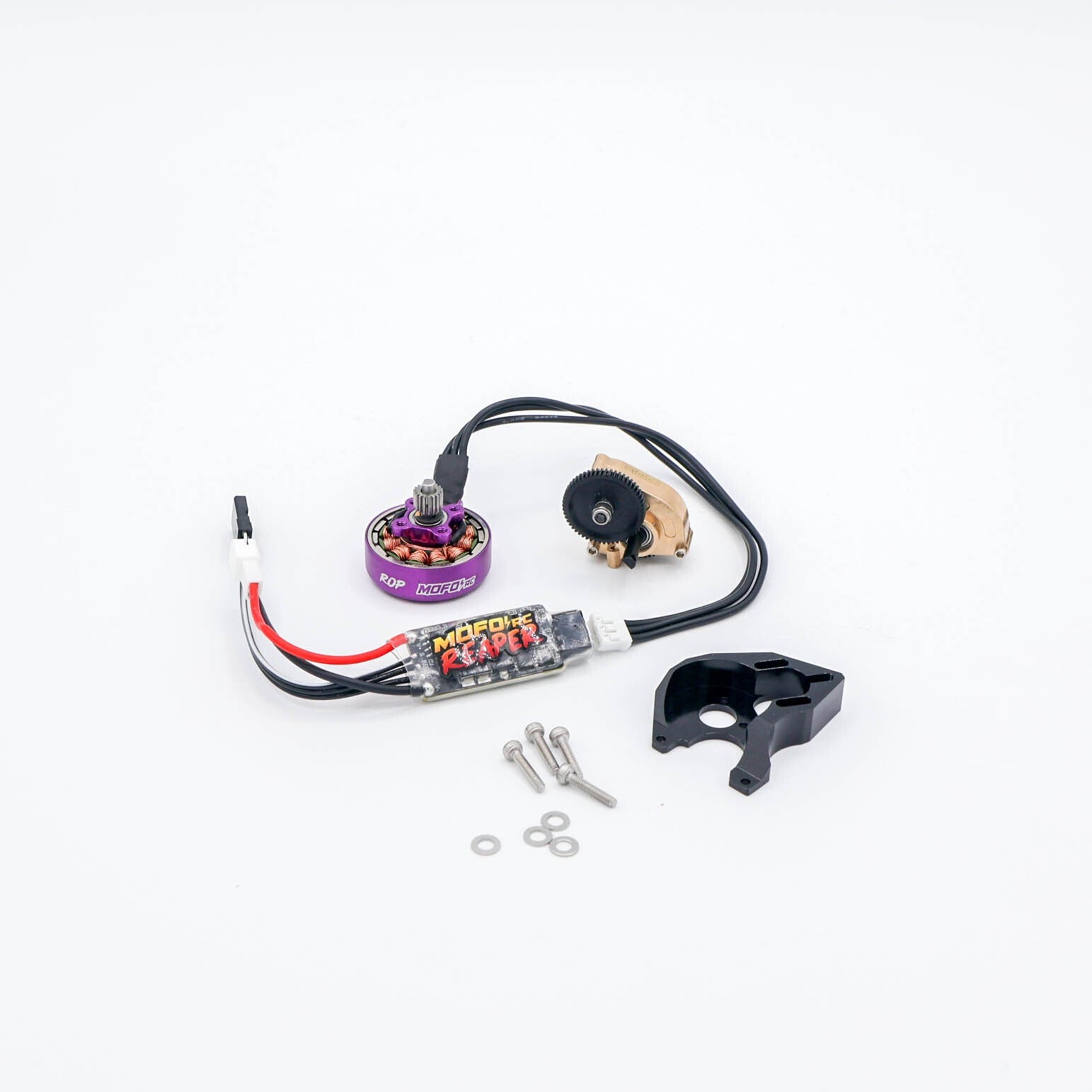

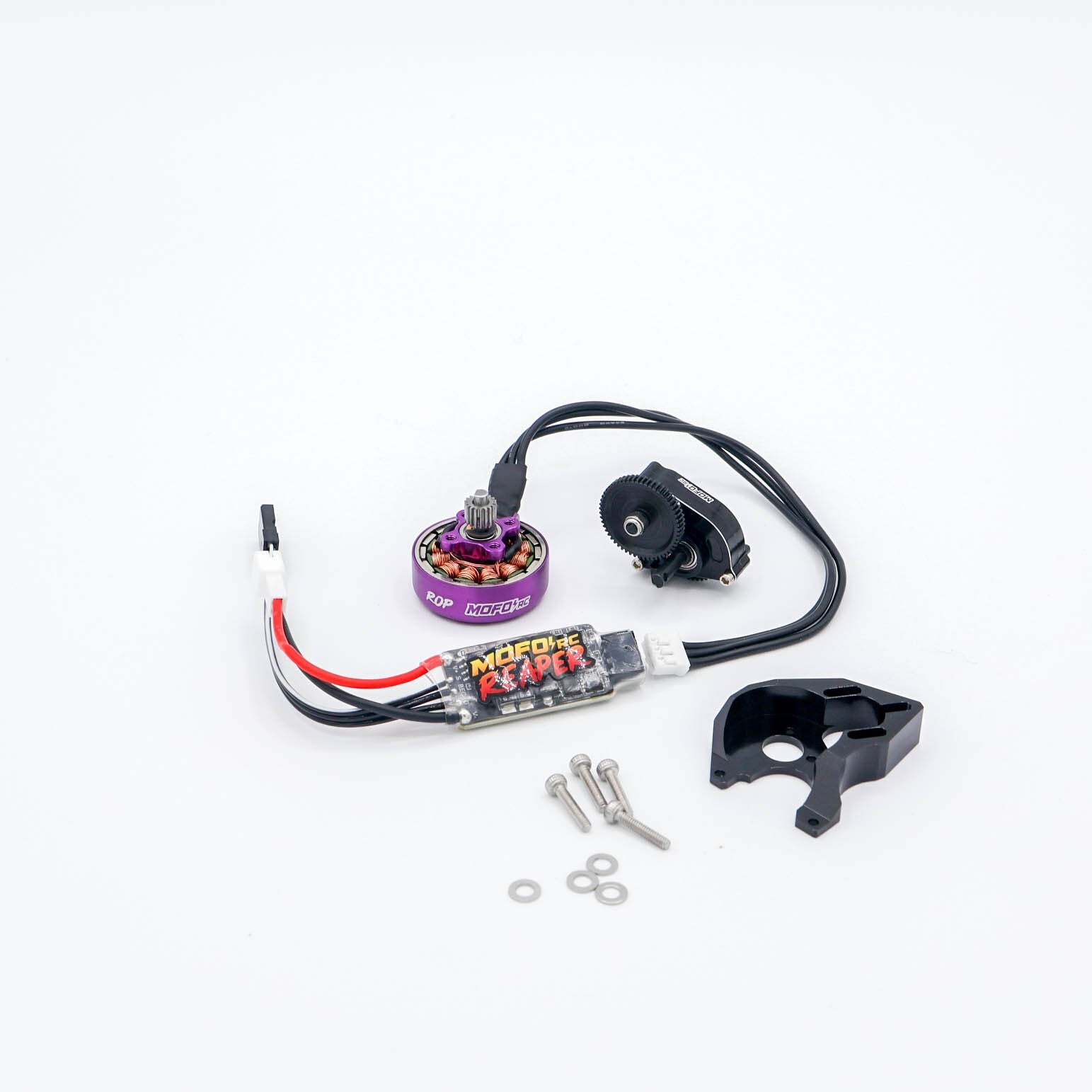

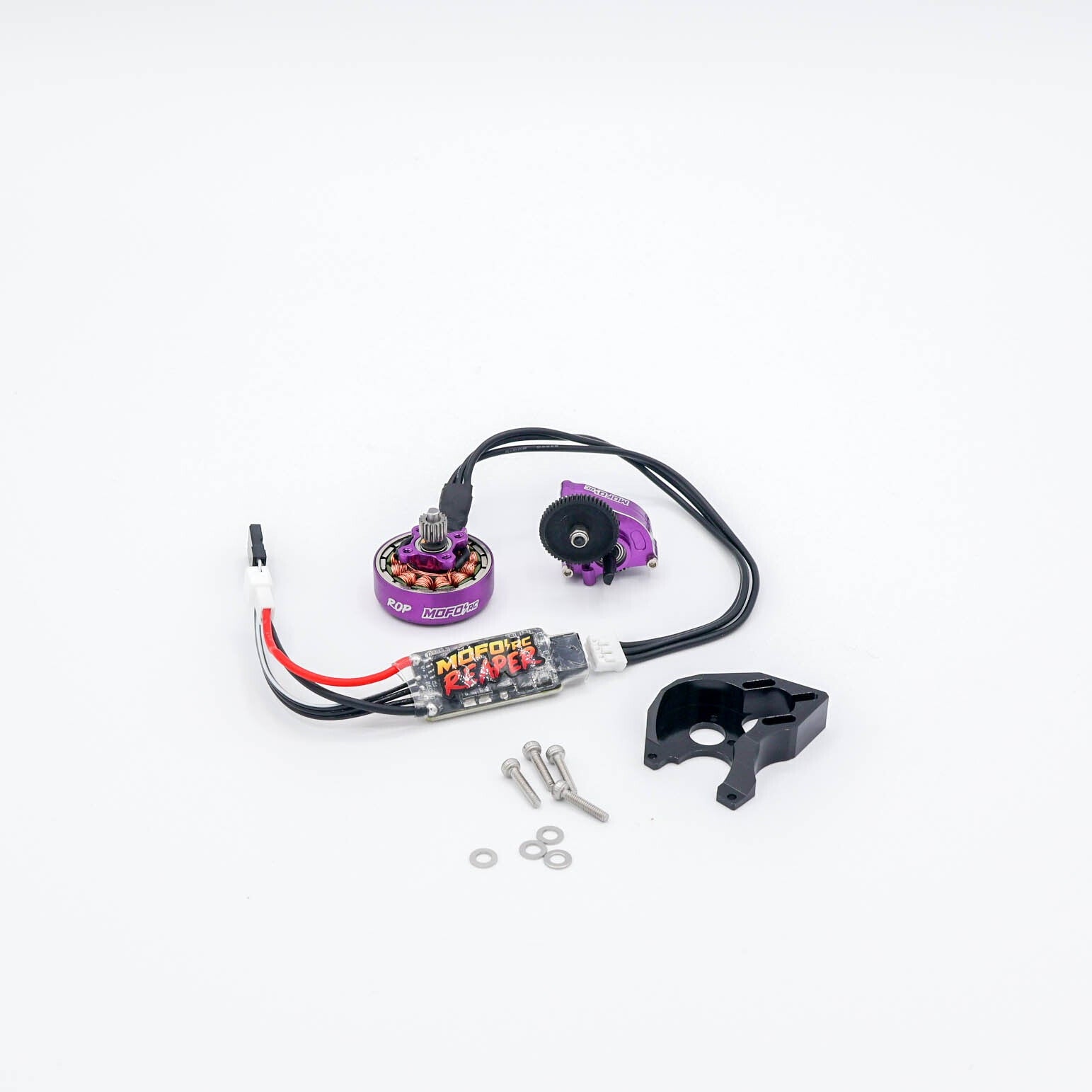

Includes

  • Mofo RC | ROP Motor with/without pinion of choice
  • Mofo RC | 12mm Aluminum Forward Facing Motor Mount
  • Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
    • Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.
  • Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
    • Includes both Mod.3 and Mod.5 Spur Gears

Gear Options

  • Mod.3
    • 18t Pinion Gear- Most Popular
  • Mod.5
    • 11t Pinion Gear

Specs and Dimensions

KV 3400
Voltage 2-3s Lipo
Poles 14 Pole, 12 Slot
Stator Diameter/Length 20mm x 4mm
Shaft Diameter 3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions)
Case Diameter/Length 25.6mm x 13.4mm
Weight 18 grams
Wire Length 160mm
Connector Standard PH2.0 3 pin



Note: Due to the high KV, you will sacrifice some smoothness relative to the lower KV options we have like the SMP.
