Mofo RC | Stainless Steel High Clearance Link Set (For Axial® SCX24™) - Made In Texas

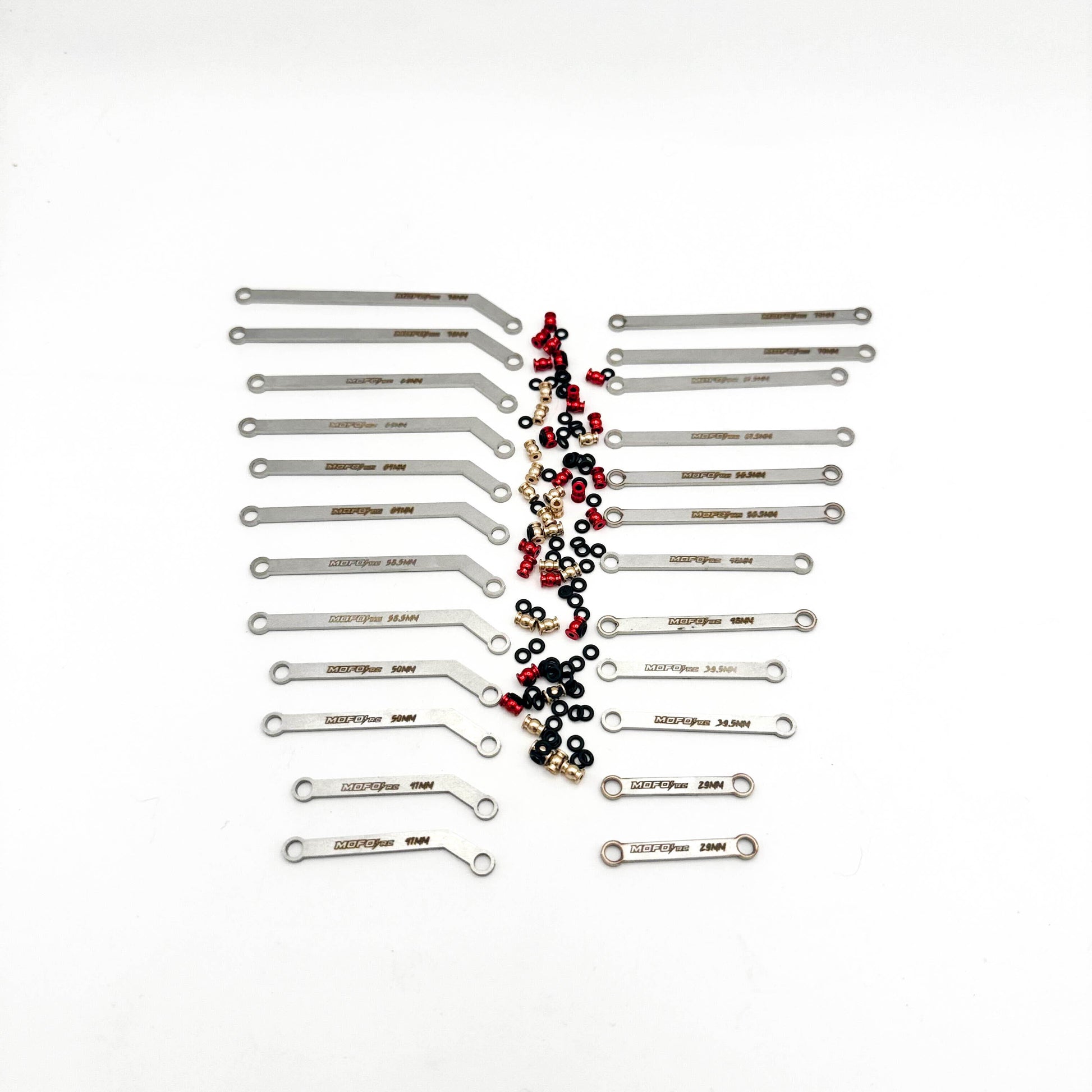

These High Clearance Single Bend Links are designed with lower links bent near the axle mount to increase clearance under the rig, while the upper links are straight. Both upper and lower links can be adjusted side-to-side for extra clearance if required. Made from durable, heavier stainless steel, the set includes either aluminum or brass link balls. Links can be bent slightly side to side to achieve any desired clearance. The kit is sold by location and length, with each complete set containing four front and four rear links. Front or rear sets will be available separately soon. Lengths may differ slightly from other brands but remain largely compatible.

Weight Range (More weights coming soon):

• Deadbolt Front: 6.5g (Without Link Balls)
• Gladiator Rear: 14g (Without Link Balls)
• Brass Link Balls: 5.5g per vehicle
• Aluminum Link Balls: 2.5g per vehicle

SEE BELOW THE CHART FOR MORE INFO ON SIZING

           Front                Lower Link Length      Upper Link Length

• Deadbolt Front        41 mm                    29 mm
• C10 Front                50 mm                     39.5 mm
• XL FRONT               58.5 mm                   48 mm

             Rear               Lower Link Length      Upper Link Length

• C10 Rear                 58.5 mm                   51 mm
• Lexus Rear               64 mm                     56.5 mm
• Deadbolt Rear         69 mm                     61.5 mm
• Gladiator Rear         78 mm                     70 mm

MORE INFO ON SIZING - Some sizes may not be listed but would be compatible

1. Deadbolt front is the same as Betty and Lexus front
2. C10 front is the same as Basecamp, JLU, Bronco, Gladiator and Power wagon front
3. XL front is a Hybrid size that would be considered C10/JLU Rear adapted for Front
4. C10 Rear is the same as JLU, Bronco, and Basecamp Rear
5. Lexus Rear I believe is only for the Lexus Currently but obviously can be elsewhere
6. Deadbolt Rear is the same as Betty rear
7. Gladiator Rear is the same as Power Wagon rear
