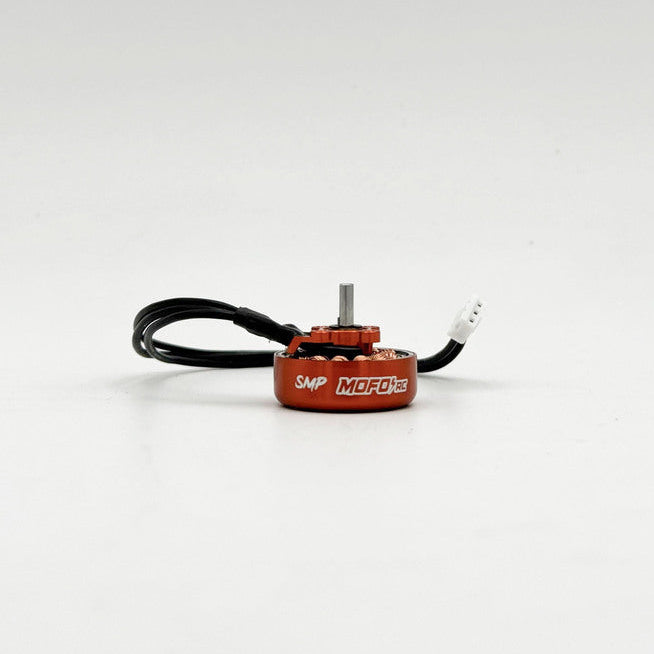

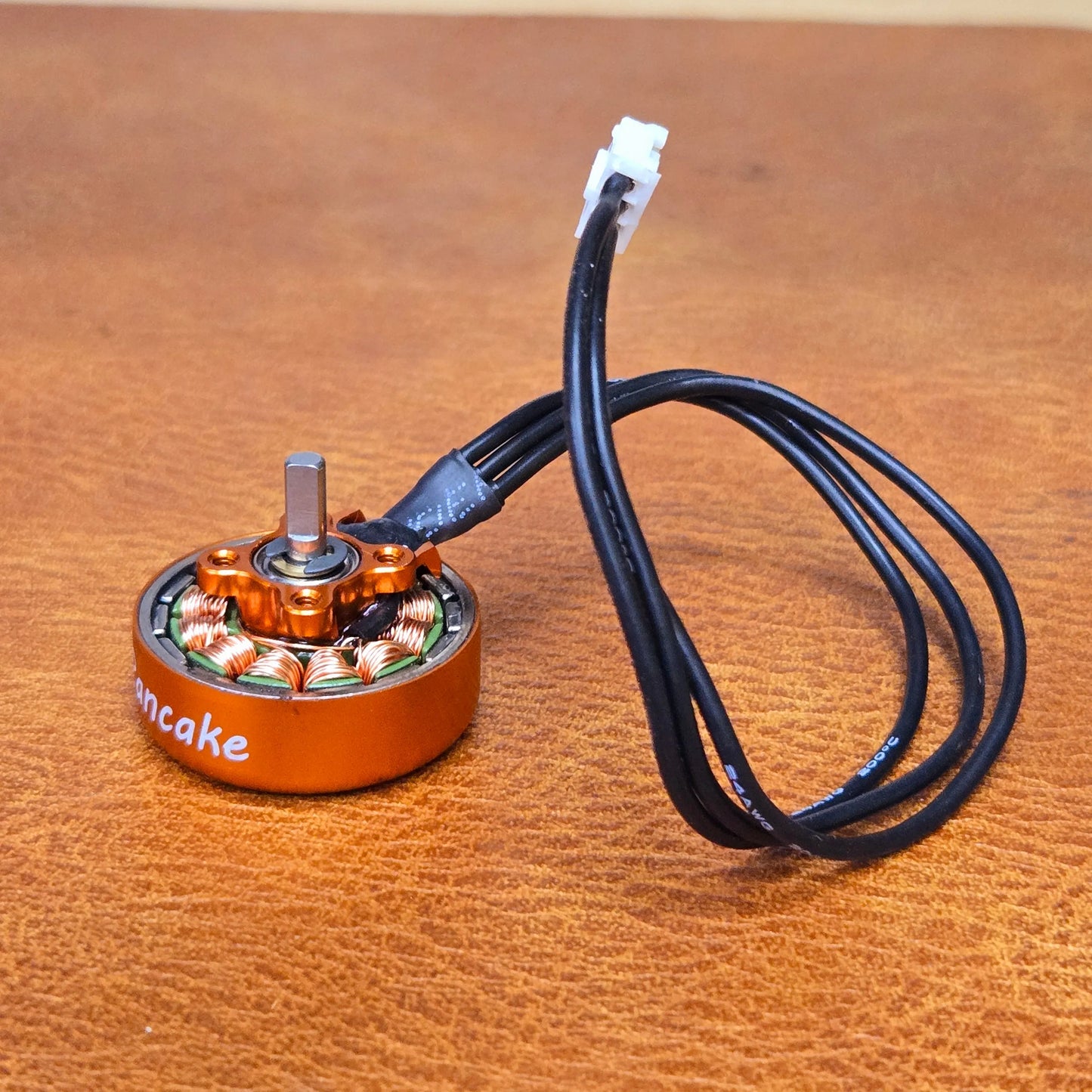

Mofo RC | SMP 1700Kv Brushless Pancake Motor

Mofo RC | SMP 1700Kv Brushless Pancake Motor

Regular price $42.00 CAD
Regular price Sale price $42.00 CAD
Sale Sold out
Shipping calculated at checkout.
With or Without Steel pinion gear installed

The SMP Motor from Mofo RC features a 1700 Kv rating and supports 2s, 3s, and even 4s power configurations. Renowned for its exceptional smoothness and precision, it delivers substantial torque and refined low-speed control, particularly when paired with the Rockwolf ESC.

Click here for the Motor Mount

Specs and Dimensions

KV 1700
Voltage 2-4s Lipo
Poles 14 Pole, 12 Slot
Stator Diameter/Length 20mm x 4mm
Shaft Diameter 3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions)
Case Diameter/Length 25.6mm x 13.4mm
Weight 18 grams
Wire Length 160mm
Connector Standard PH2.0 3 pin

Gear Options

  • Mod.3
    • 18t Pinion Gear- Standard
    • 20t Pinion Gear- Slight Speed Boost
  • Mod.5
    • 11t Pinion Gear- Standard
    • 13t Pinion Gear- Slight Speed Boost
