UAF6 6x6 Titanium Scx24 Chassis

Pre-Sale for Patreon Members, Limited pictures and info, more info soon

Currently chassis only in titanium, Other chassis materials to come later.

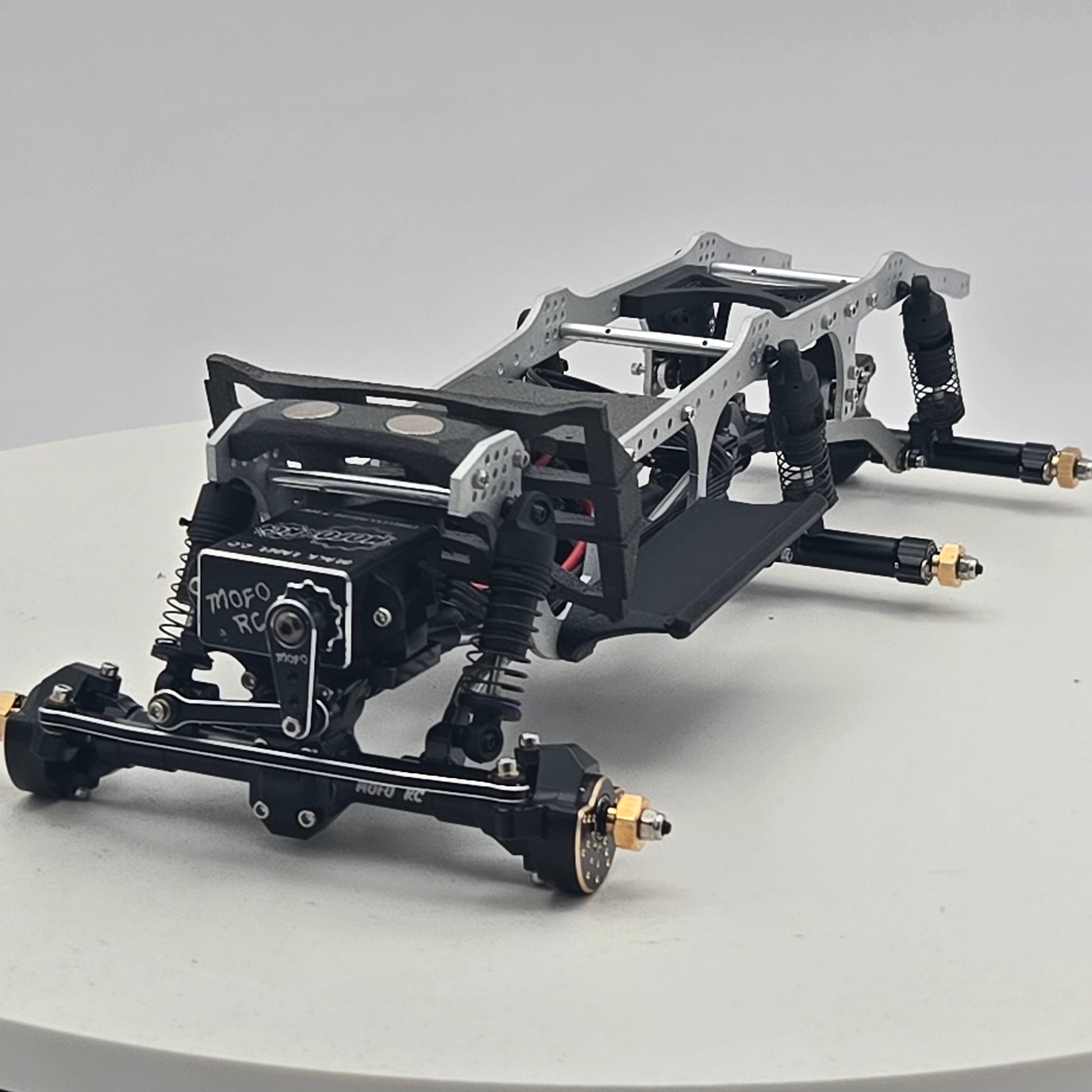

This is the Mofo Rc Ugly 6x6 chassis, It uses the scx24 platform parts to complete it.
The links that will be required are the C10 / bronco / JLU Link set. This will be the front 4 wheels. The rear Links are a set of Titanium Flat links that will be included with the Kit. The sizes for the rear 3rd axle are deabolt lower for the lower links, And C10/JLU Upper for the upper links.

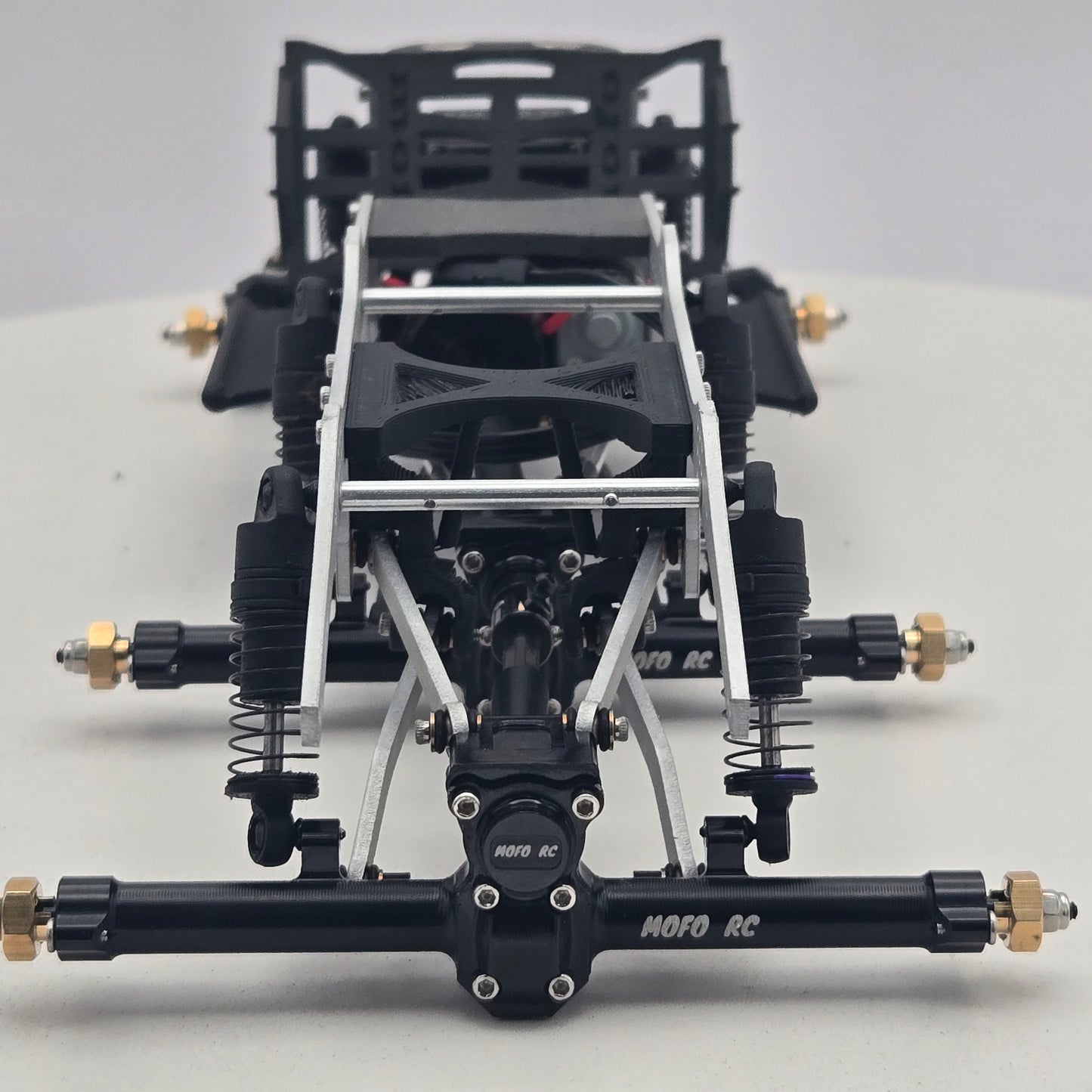

The rear 3rd axle has a captured style block with offset link mounting points the links attach to, This provides and extra durable mounting and allows the use of full articulation due to the locations not being limited to the outer attachment point only. And superior strength being captured inner and outer. And ease of installation not needing to use nuts to hold the links while providing a long term solution.

The chassis is based on the Most recent generation of the Ugly Chassis and most parts are interchangeable. Frame upright support for use of smartly placed electronics / battery trays, And Forward based Low mounted Battery tray helps keep the weight biased forward. The Unique design also allows the use of over 100 different motor mounting combinations and orientations.

Kit will include the following

• Chassis Frame Rails - Currently will be Titanium. Aluminum and Stainless steel to follow soon.

• Forward Mounted Battery Tray.
• Multi-location Esc Tray
• 4x titanium rear 3rd axle suspension links
• Rear axle link attachment Block.
• Medium hardware pack with assortment of m1.4 screws, brass spacers, aluminum crossbraces, m1.4 nuts.
• Sidemounted slider boards.
• Servo light bracket for mounting led lights to the servo.
• possibly some chassis mounted body mounts that will use 8mm x 2mm magnets.

Needed to complete,

• 3 scx24 axles
• C10/JLU front driveshaft for 3rd axle, Some may need to be even longer than C10 front or require custom fabricated length, Make your measurements before ordering driveshaft.
• pass through gear for center axle.
• Lots of other stuff....
