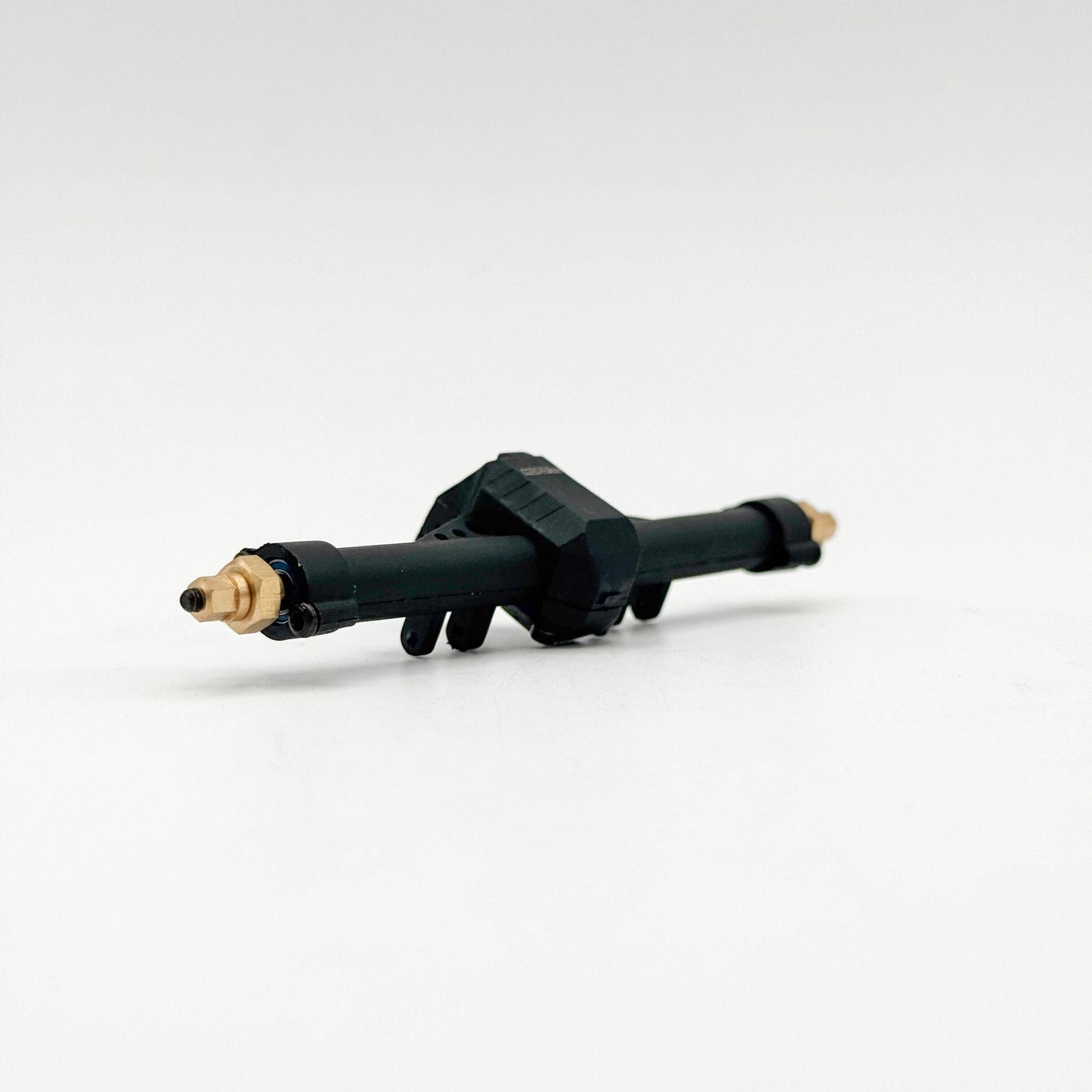

Mofo RC | X15 Rear Nylon Axle (For Axial® SCX24™/AX24™)

Mofo RC presents the X15 Axles, designed as the 1-ton scale equivalent for 1/24 scale models, surpassing the typical 1/2 ton axles found elsewhere. These axles handle higher power and extreme gear ratios that standard axles cannot withstand. Compared to stock SCX24/AX24 axles, the X15 offers approximately 5.5mm extra width on each side, totaling 11mm wider. The V2 version features an underdriven setup and maintains compatibility with all standard 1.4mm SCX24/AX24 link balls and shocks, eliminating the need for 1.6mm upgrades. Please see important notes below.

Check out the steering comparison here

Features

• 11mm wider (+5.5mm per side)

• These are now stock ratio instead of 50% underdriven.
  • Compatible with any stock style SCX24 axle gears

• High Speed Bearings
• 3x Thicker CVD Axle Shafts than stock, 2x the size of typical SCX24 axle shafts
• Slippery nylon material for limited hang-ups over rocks

• Stock shock and link mounting positions
• Built-in Rear Axle Link Riser
• Rear Exit Axle Covers
  • Prevents dirt and debris from getting inside

Specifications

• 97mm Width Hex Face to Hex Face
• 2.5mm Axle Thread
  • Includes 4mm Brass Wheel Nuts
  • Scale Wheel Hub Nuts Available
• Stock Ratio Axle Gears NEW
  • Steel Top Worm Gear
  • Brass Ring Gear
    • Allows for a failure point in any serious bind situation and limits any "break-in"
•

• Weight

  • Rear Axle 25g

Includes

• 1x Pre-Assembled Rear Axle
• 2x Brass Wheel Nuts, Hexes, & Pins
• Optional 5mm Nylon Hex Nuts

Upgrade Parts

1. Black Brass +5mm Hex Extenders
2. Black Brass Axle Housings
3. Black Brass Rear Axle Weights
4. Black Brass Diff Cover
5. Scale Hub Wheel Nuts

Important Notes

1. The axles are shipped dry. You must disassemble and grease the differential gears thoroughly as well as the axle shafts ideally.
   1. Cow RC Udder Butter is recommended
2. To install the servo mount, begin by attaching the plate to the axle, followed by securing the included screws to support the servo upright posts. Afterward, mount your servo carefully. Proceed slowly and carefully; if the upright posts become damaged, replacement parts are readily available here
3. Blue threadlocker is recommended for the brass wheel nuts
4. The stock SCX24 link screws may be somewhat short and may not provide optimal grip. For improved performance, consider using M1.4x10mm screws for the lower links. The stock screws are sufficient for rear and front 4-link upper connections, and a M1.4x12mm screw is included for those utilizing the stock front upper Y-link.

Recommended Tools

1. 0.050" Hex Driver
2. 1.5mm Hex Driver
3. 4.0 Nut Driver
4. 5.0 Nut Driver (For optional hex nuts)
