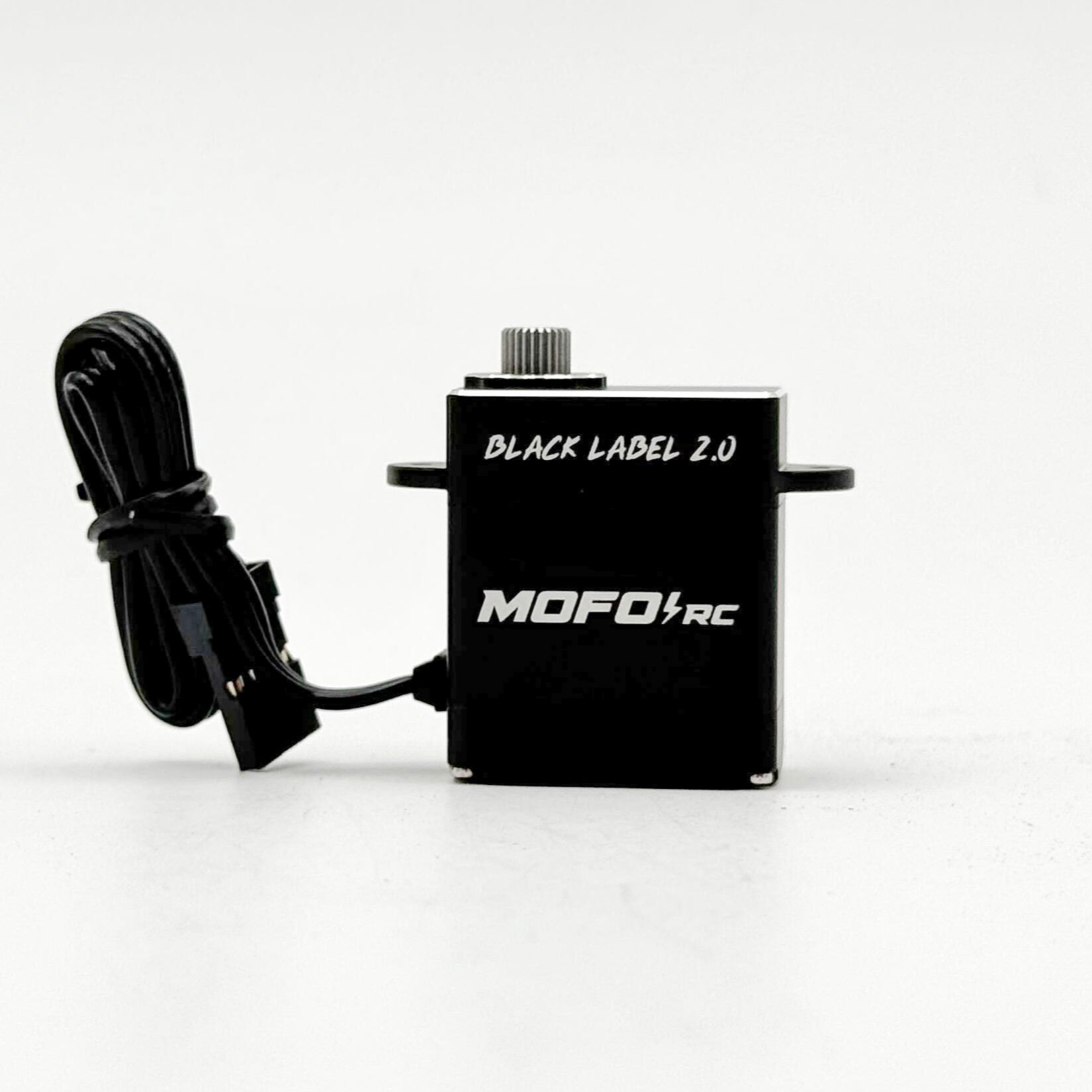

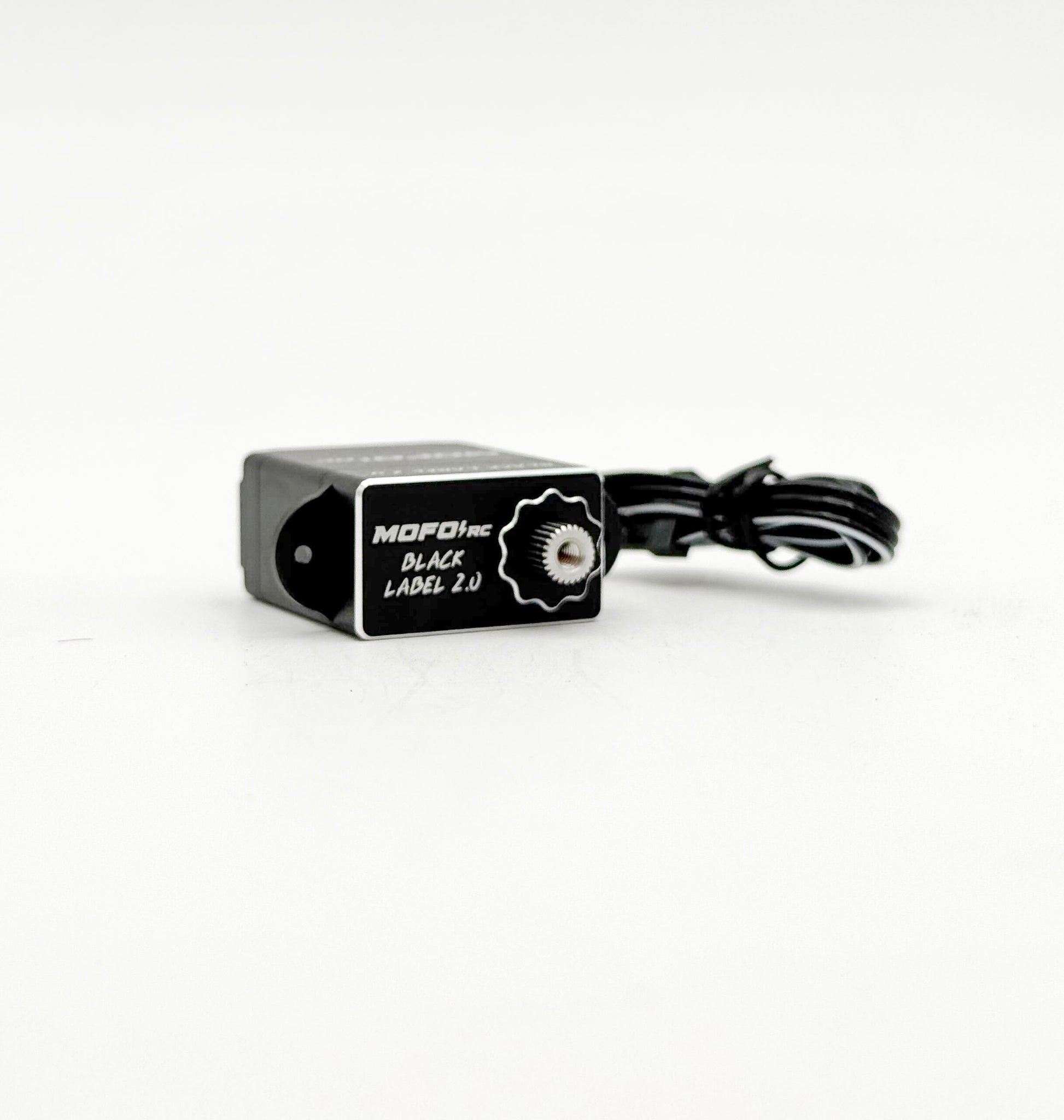

Mofo RC | Black Label 2.0 Micro Servo - Aluminum

Mofo RC | Black Label 2.0 Micro Servo - Aluminum

$54.99 USD
$54.99 USD $54.99 USD
Sale Sold out
Shipping calculated at checkout.

The Black Label 2.0 is one of our most popular servos providing a huge upgrade for micro crawlers and other small scales. Now, with up to 25% higher torque specs to more accurately reflect this awesome servo. Still offered at the same great value.

Specs

  • Case/Horn Material: 7075 Aluminum
  • Gears: Hardened Steel
  • Motor: Coreless
  • Voltage Range: 4.8v-8.4v
  • Water-Resistant- O-ring Sealed Case
  • Mounting Holes: 1.4mm, Can easily be drilled out for other sizes
  • Weight: 23g
  • BEC: Not Required, but may be recommended if running 2 in a vehicle.
  • Machined Aluminum Horn w/ M1.4 Threads included w/miscellaneous mounting hardware.
Voltage Stall Torque  Operating Speed
4.8V 108 OZ-in (6.8KG-CM) 0.155 Sec/60*
6.0V 134 OZ-in (7.5KG-CM) 0.132 Sec/60*
7.4V 156 OZ-in (8.8KG-CM) 0.105 Sec/60*
8.4V 179 OZ-in (10.2KG-CM) 0.093 Sec/60*

Dimensions

  • Height: 31.6mm
  • Width: 23mm
  • Thickness: 13.4mm

Fits

  • SCX24
  • TRX4M
    • May need to drill out mounting holes to accommodate larger mounting screws.
    • Included horn will also need to have holes enlarged to 2.5mm or use an alternate horn.
  • Redcat
  • FMS
    • May need an alternate servo horn depending on model.

GET REPLACMENT GEAR SETS HERE

Warranty

  • 90 Day Warranty
  • 1 Year Warranty on Gears
  • Must return for inspection
