Mofo RC | Black Label 3.0 Micro Servo w/ Dual-Exit Wire - Brass

Mofo RC | Black Label 3.0 Micro Servo w/ Dual-Exit Wire - Brass

$69.99 USD
$69.99 USD $69.99 USD
Sale Sold out
Shipping calculated at checkout.

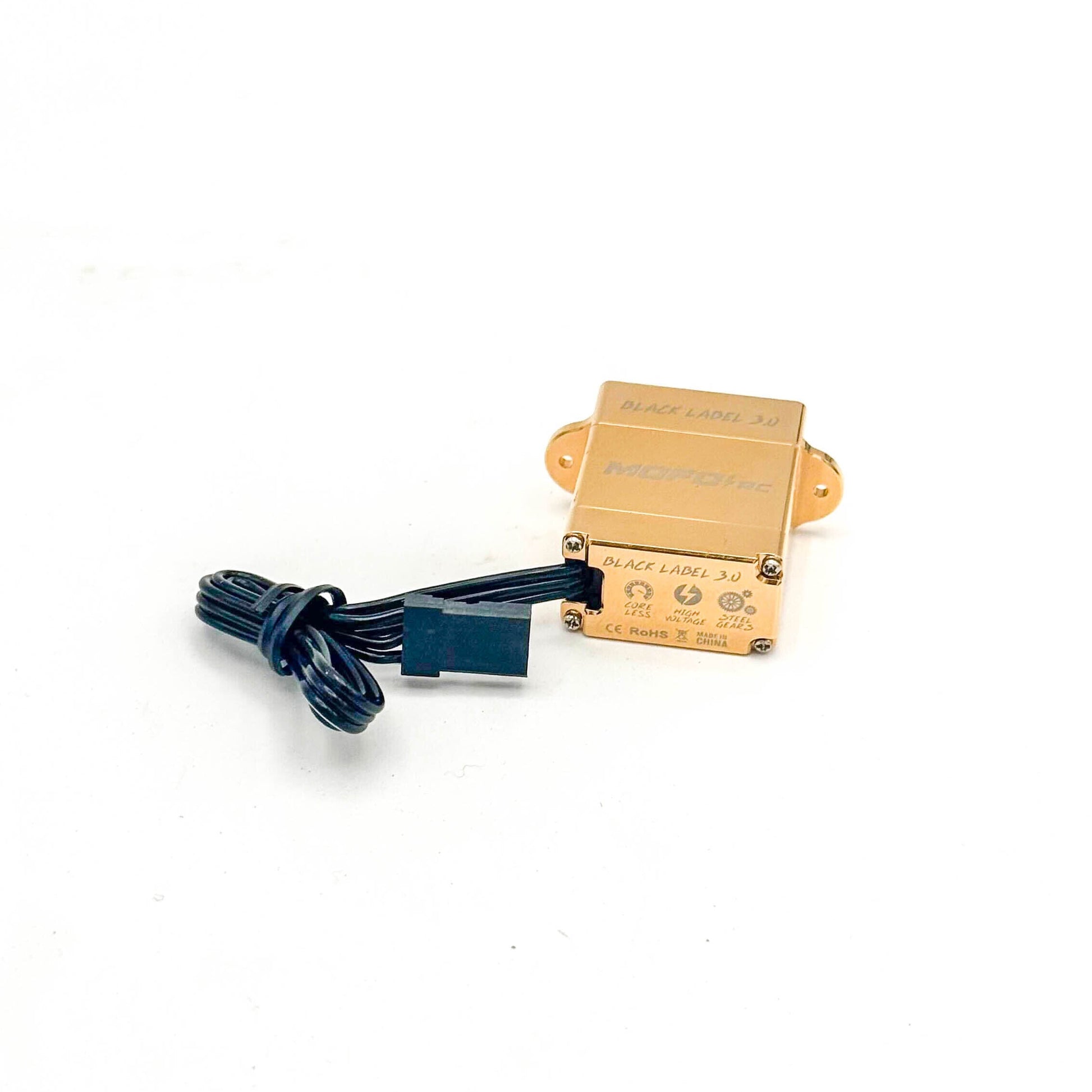

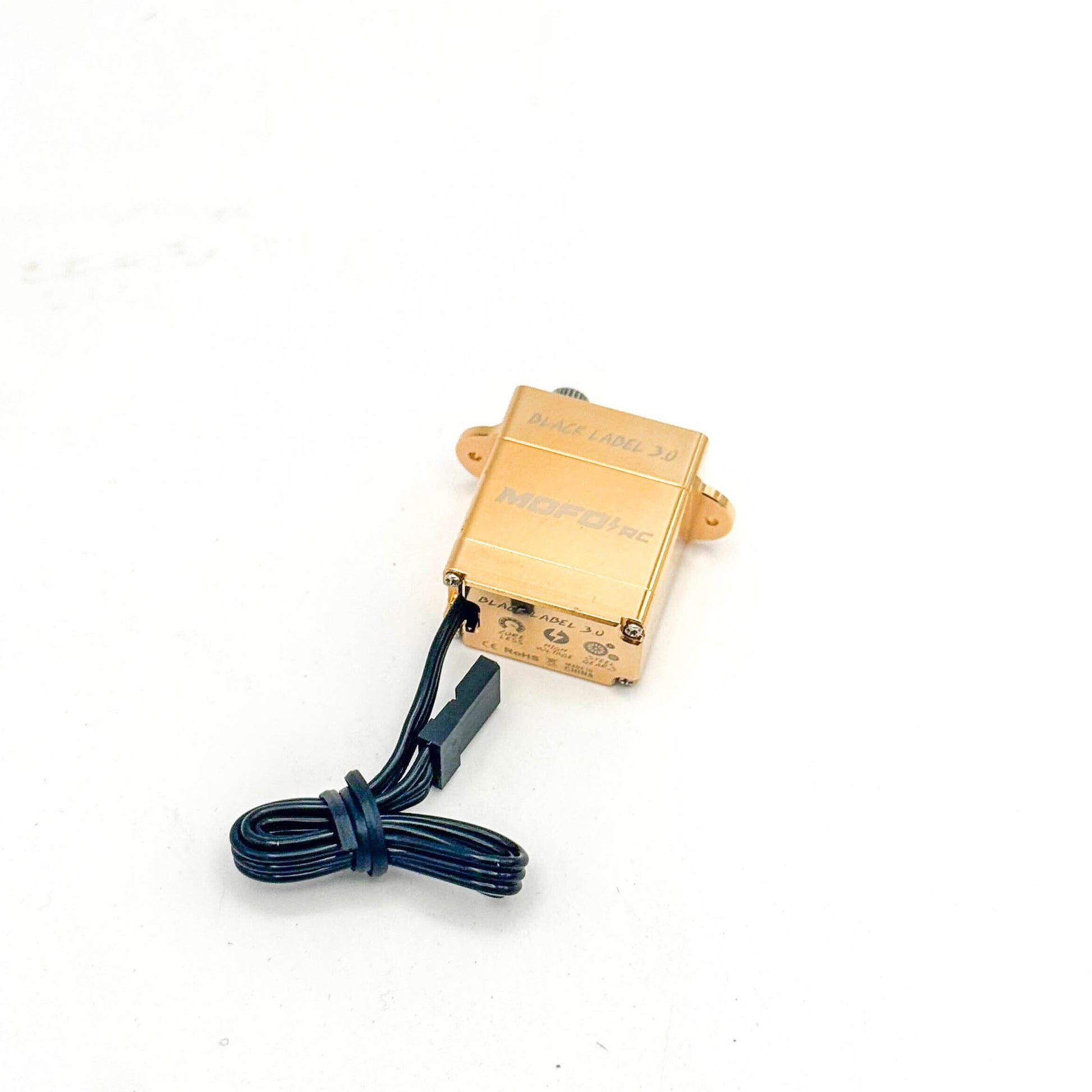

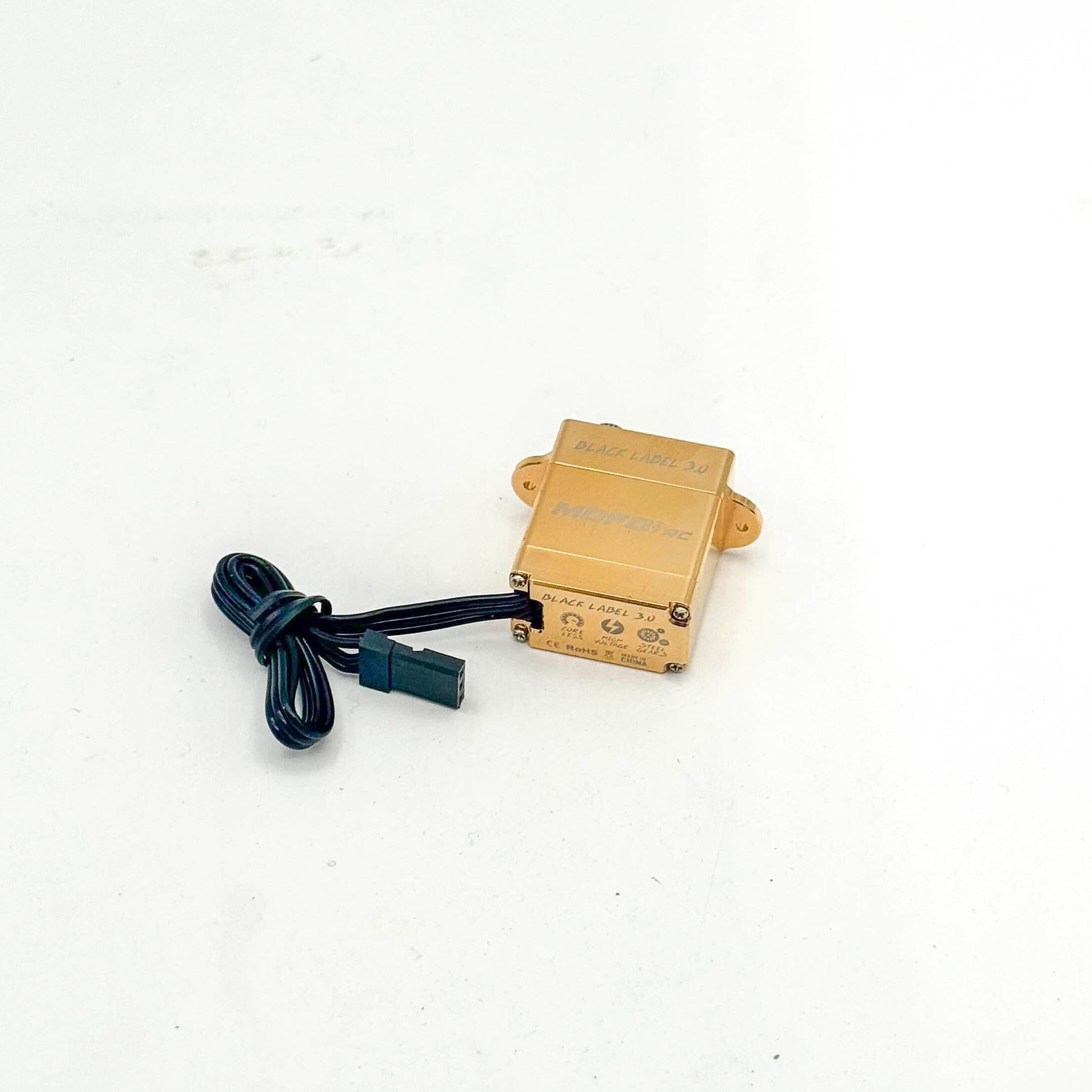

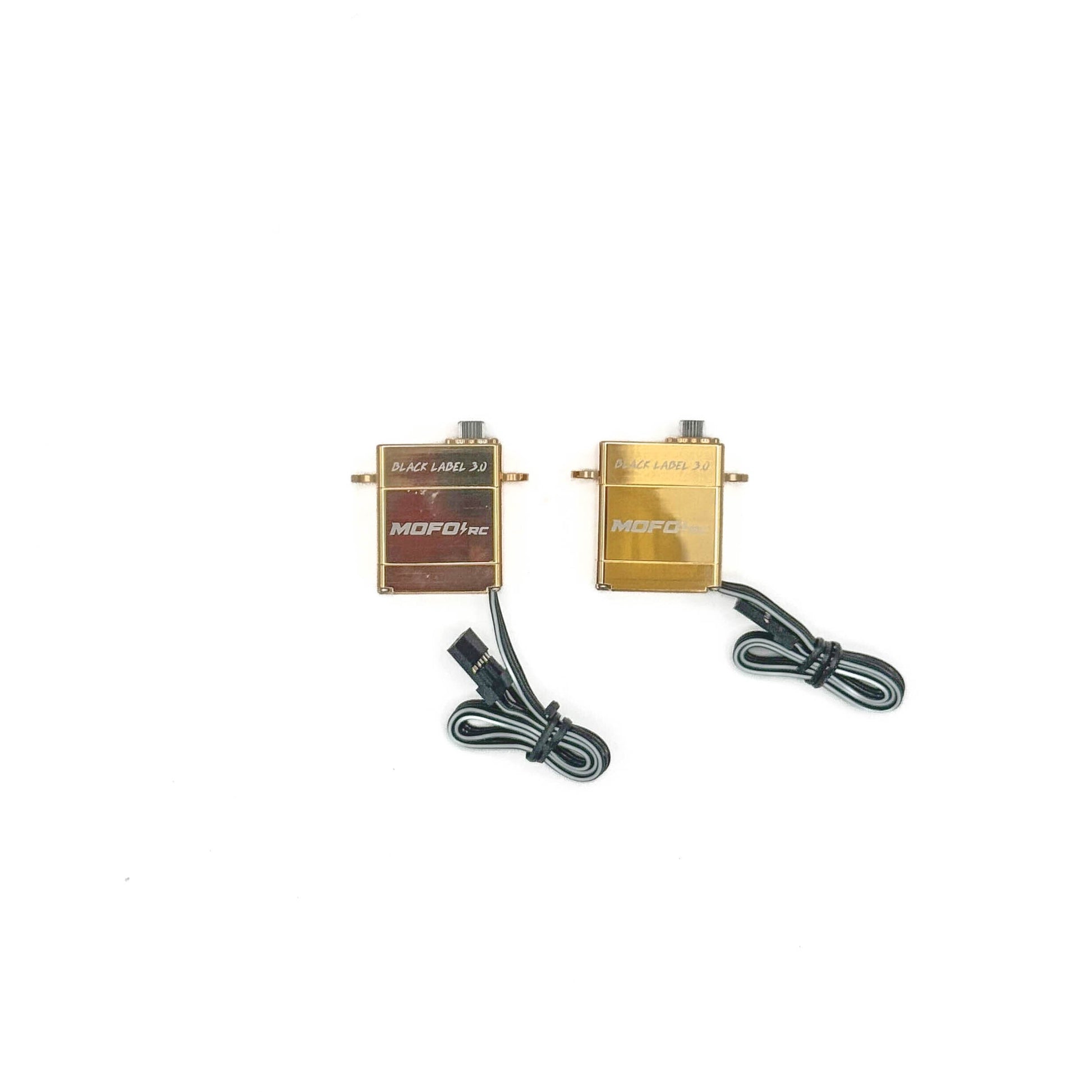

The Black Label 3.0 is the latest update to our most popular servo. This servo features our newest case design with a dual-exit wire harness. The case is designed so that the wire runs as a rear exit, but can also be ran out the side for vehicles that require it.

  • Case Material: Brass
  • Gears: Hardened Steel
  • Motor: Coreless
  • Voltage Range: 4.8v-8.4v
  • Water-Resistant- O-ring Sealed Case
  • Mounting Holes: 1.4mm, Can easily be drilled out for other sizes
  • Weight: 44g
  • BEC: Not Required, but may be recommended if running 2 in a vehicle.
  • Machined Aluminum Horn w/ M1.4 Threads included w/miscellaneous mounting hardware.
Voltage Stall Torque  Operating Speed
4.8V 108 OZ-in (7.8KG-CM) 0.155 Sec/60*
6.0V 134 OZ-in (9.6KG-CM) 0.132 Sec/60*
7.4V 156 OZ-in (11.2KG-CM) 0.105 Sec/60*
8.4V 179 OZ-in (12.9KG-CM) 0.093 Sec/60*


Dimensions

  • Height: 31.6mm
  • Width: 23mm
  • Thickness: 13.4mm

Fits

  • SCX24
  • TRX4M
    • May need to drill out mounting holes to accommodate larger mounting screws.
    • Included horn will also need to have holes enlarged to 2.5mm or use an alternate horn.
  • Redcat
  • FMS
    • May need an alternate servo horn depending on model.

GET REPLACMENT GEAR SETS HERE

Warranty

  • 90 Day Warranty
  • 1 Year Warranty on Gears
  • Must return for inspection
