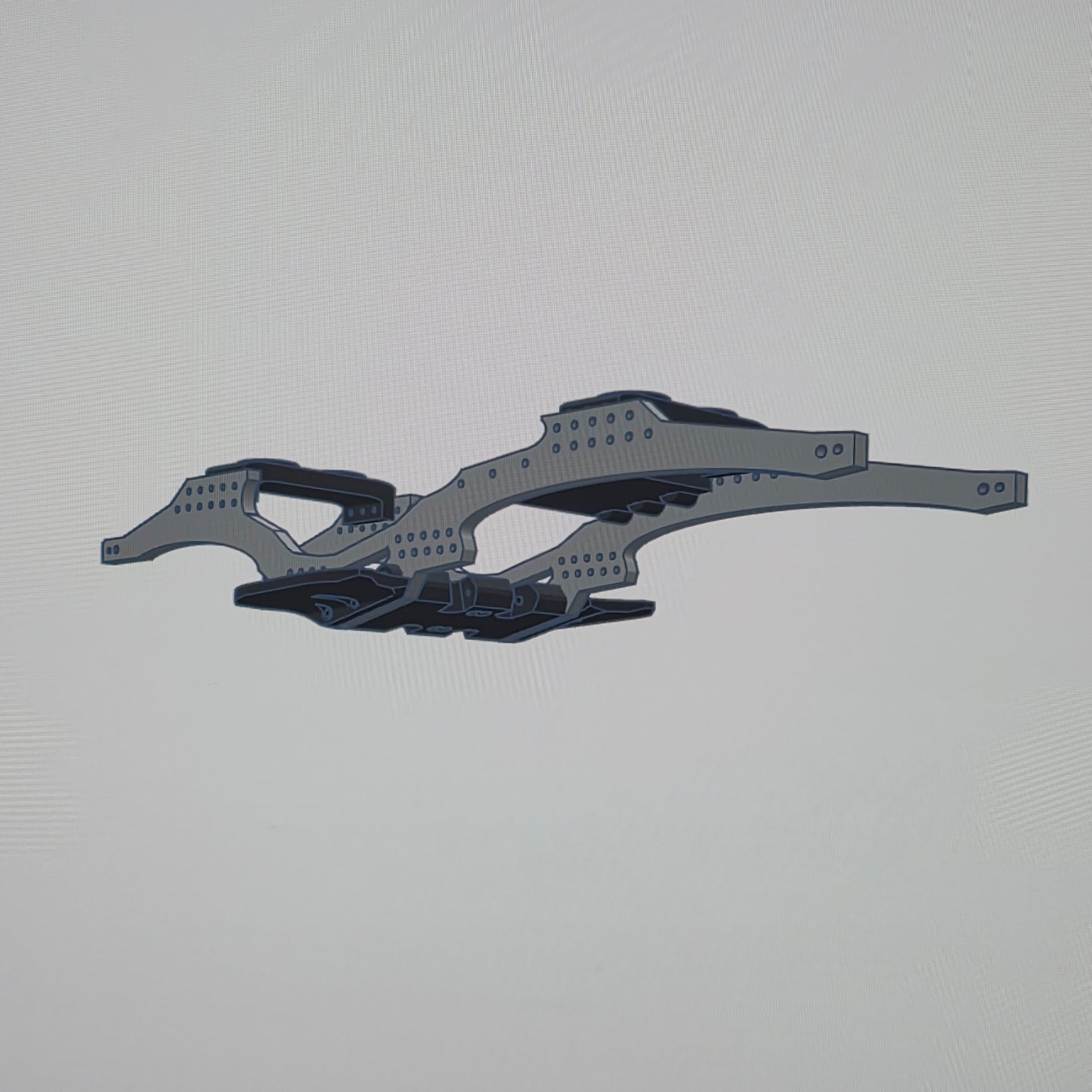

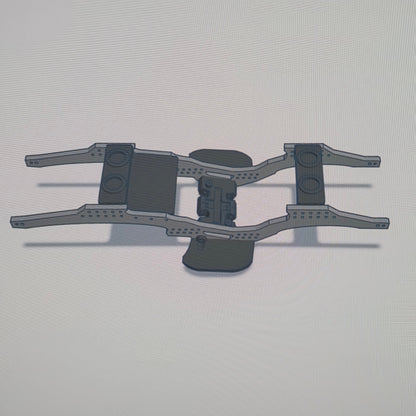

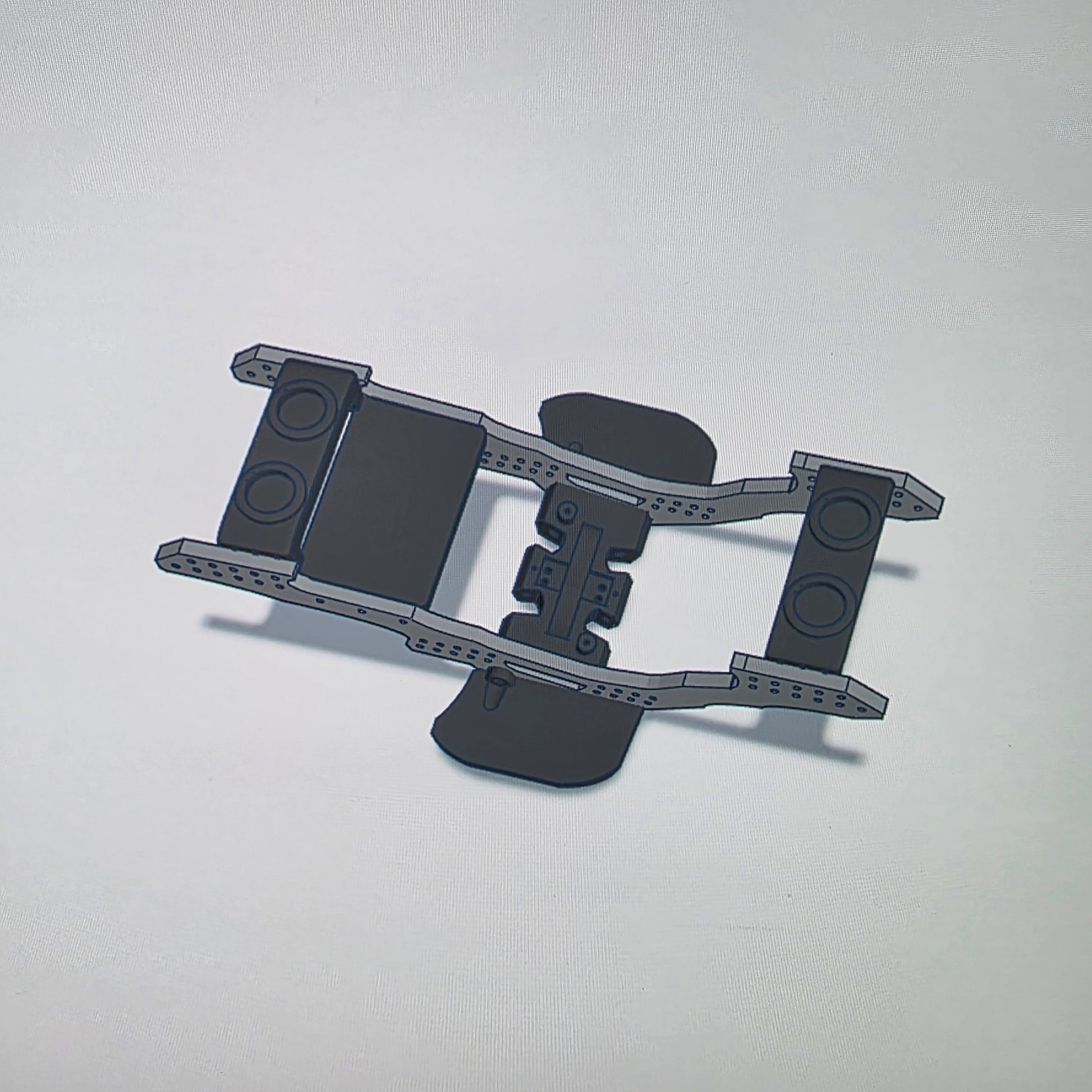

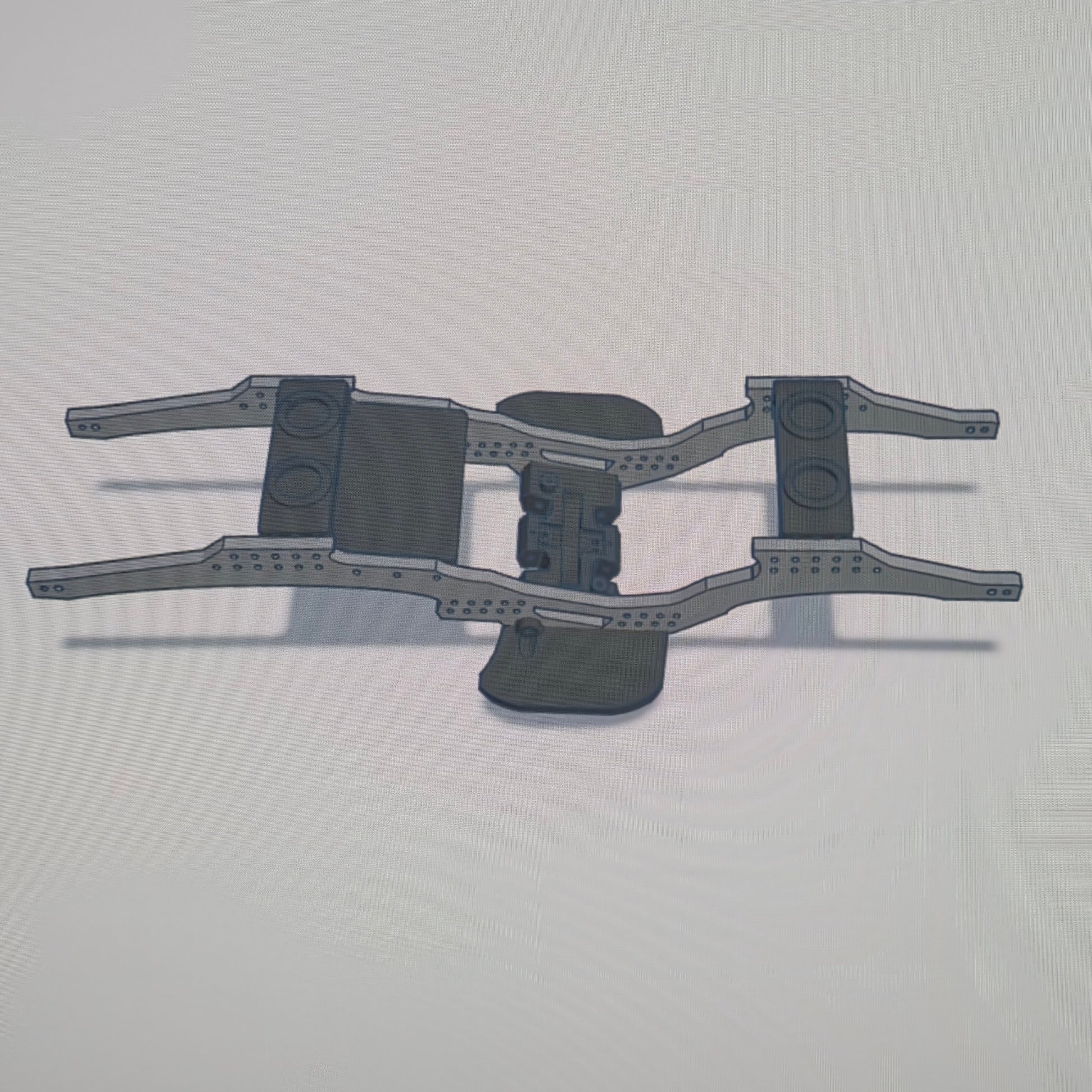

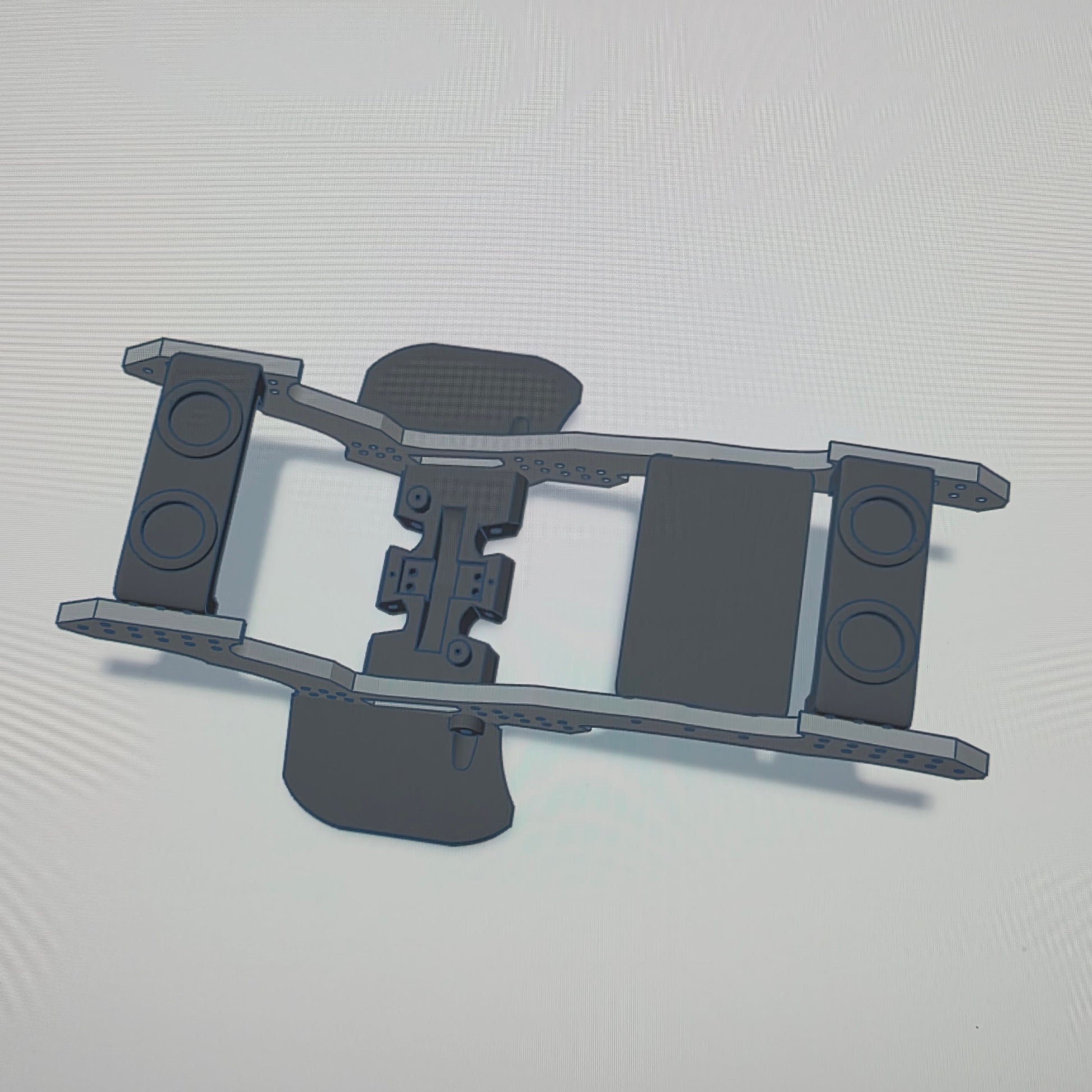

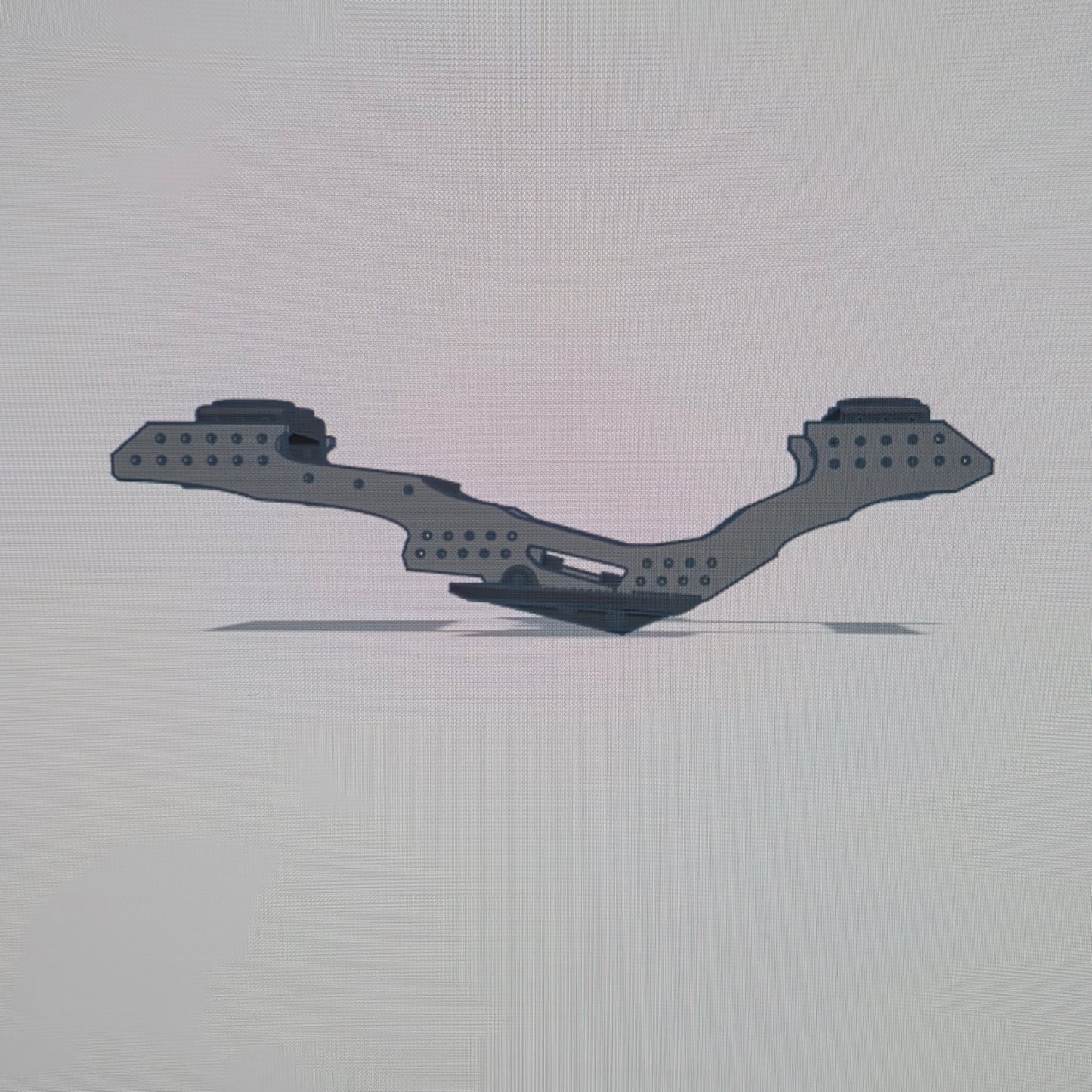

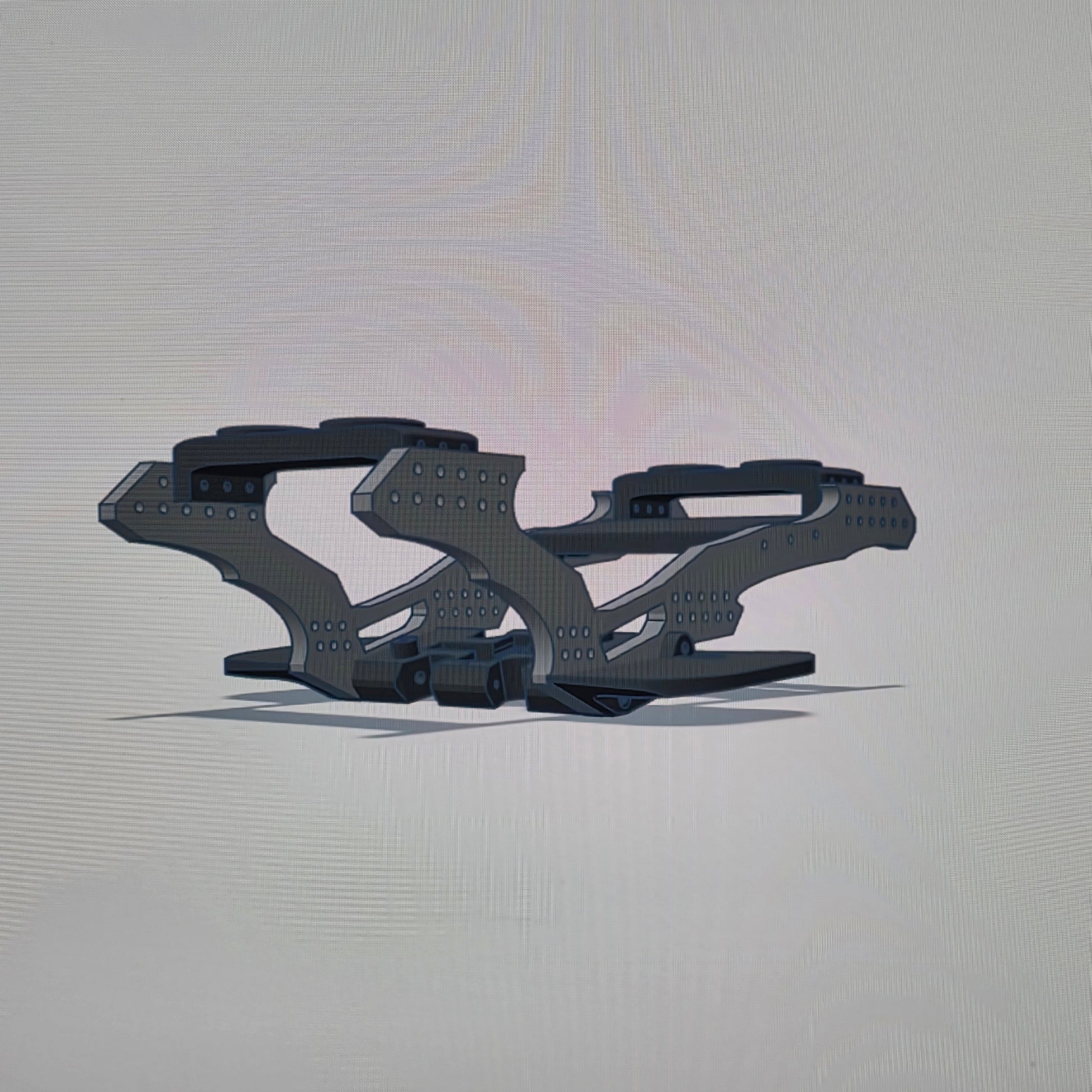

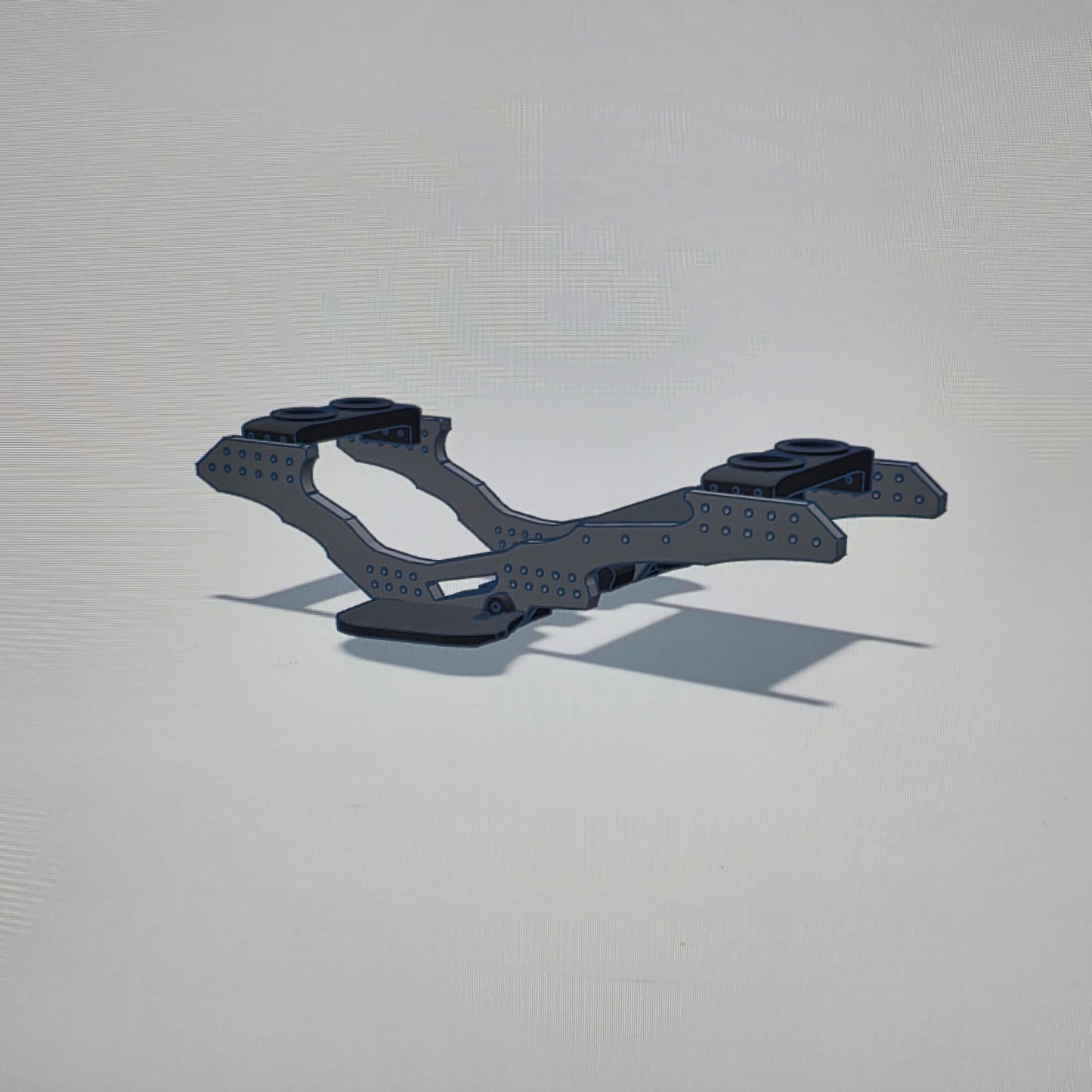

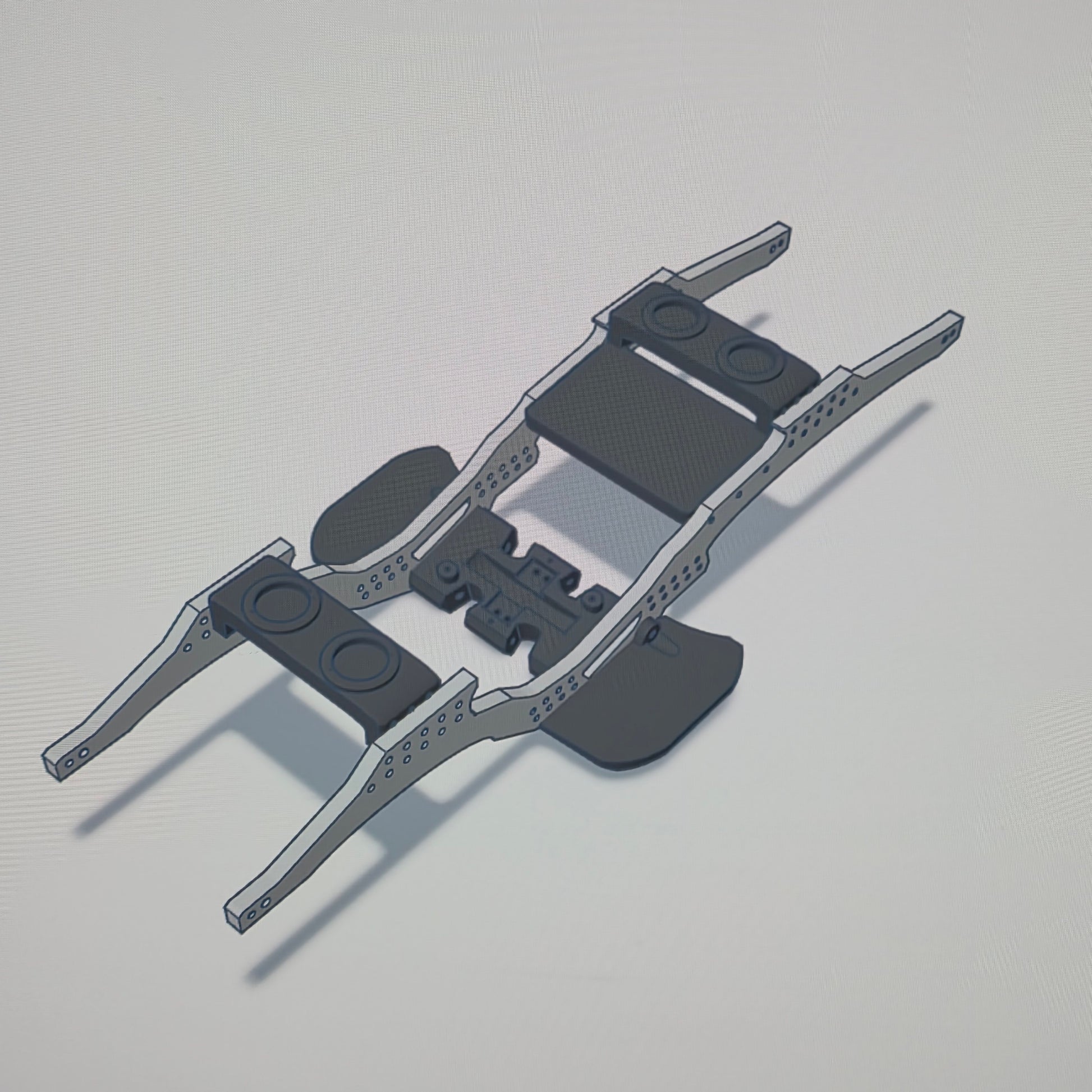

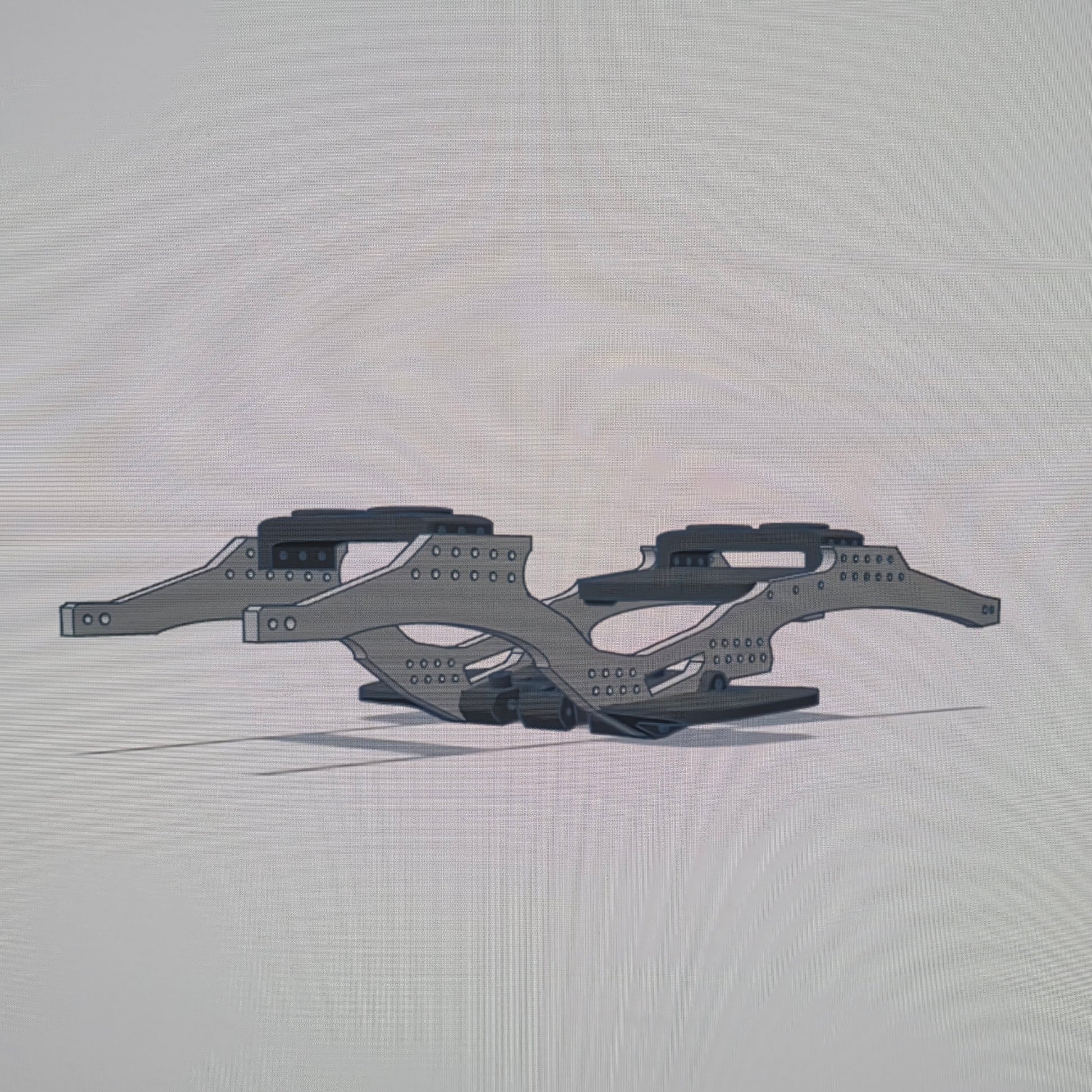

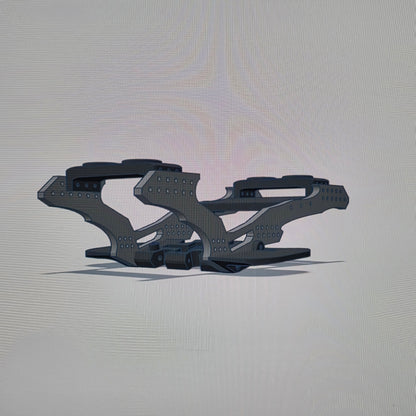

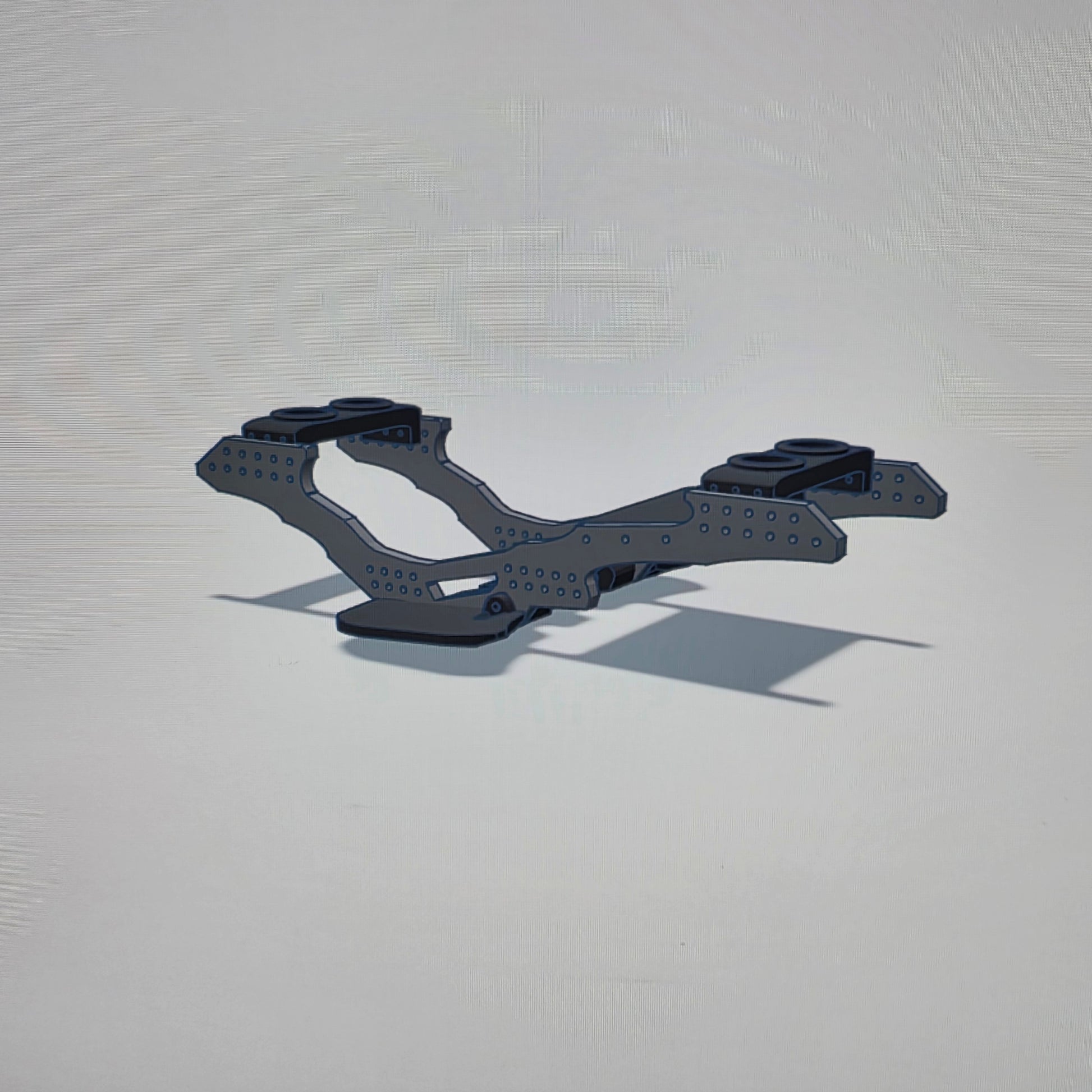

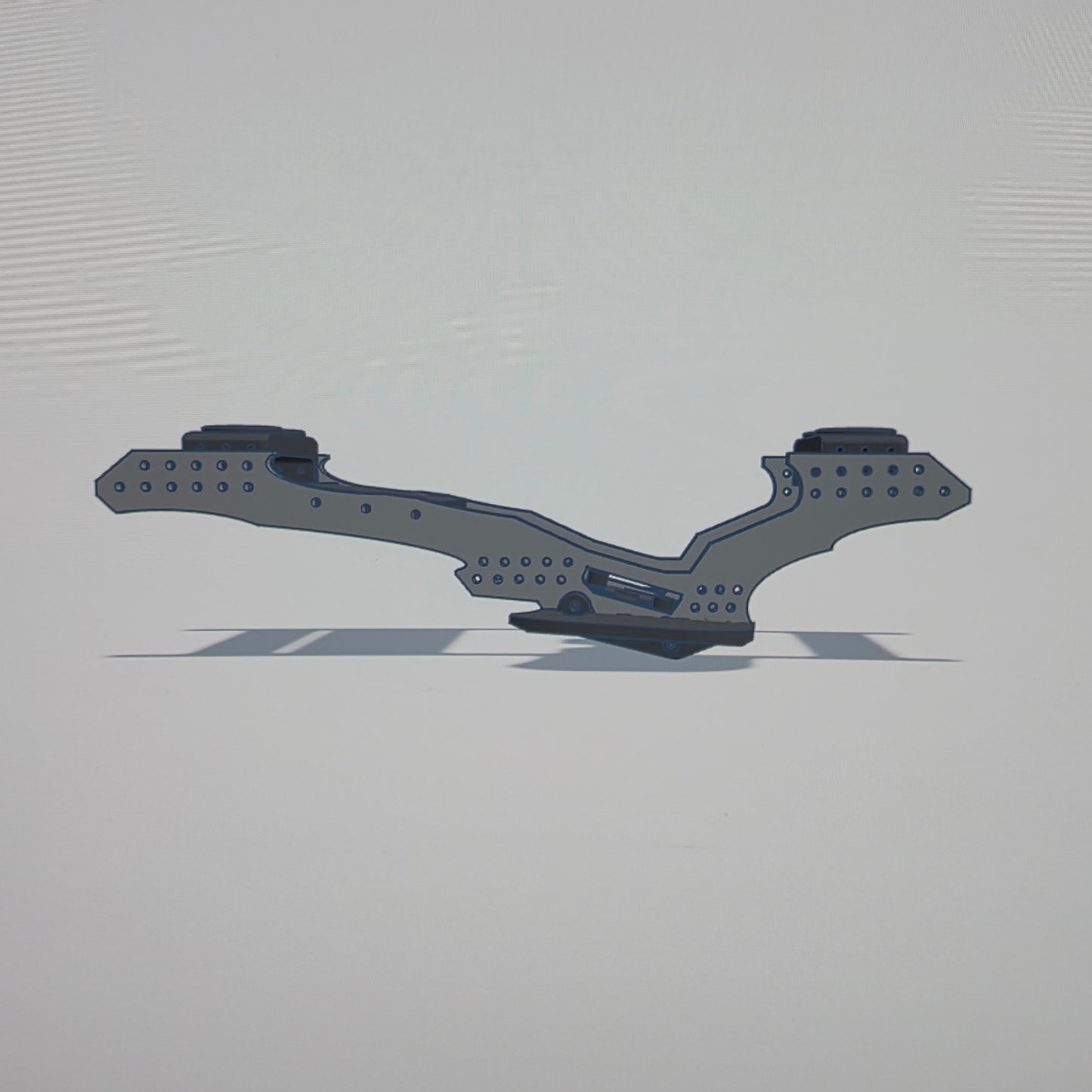

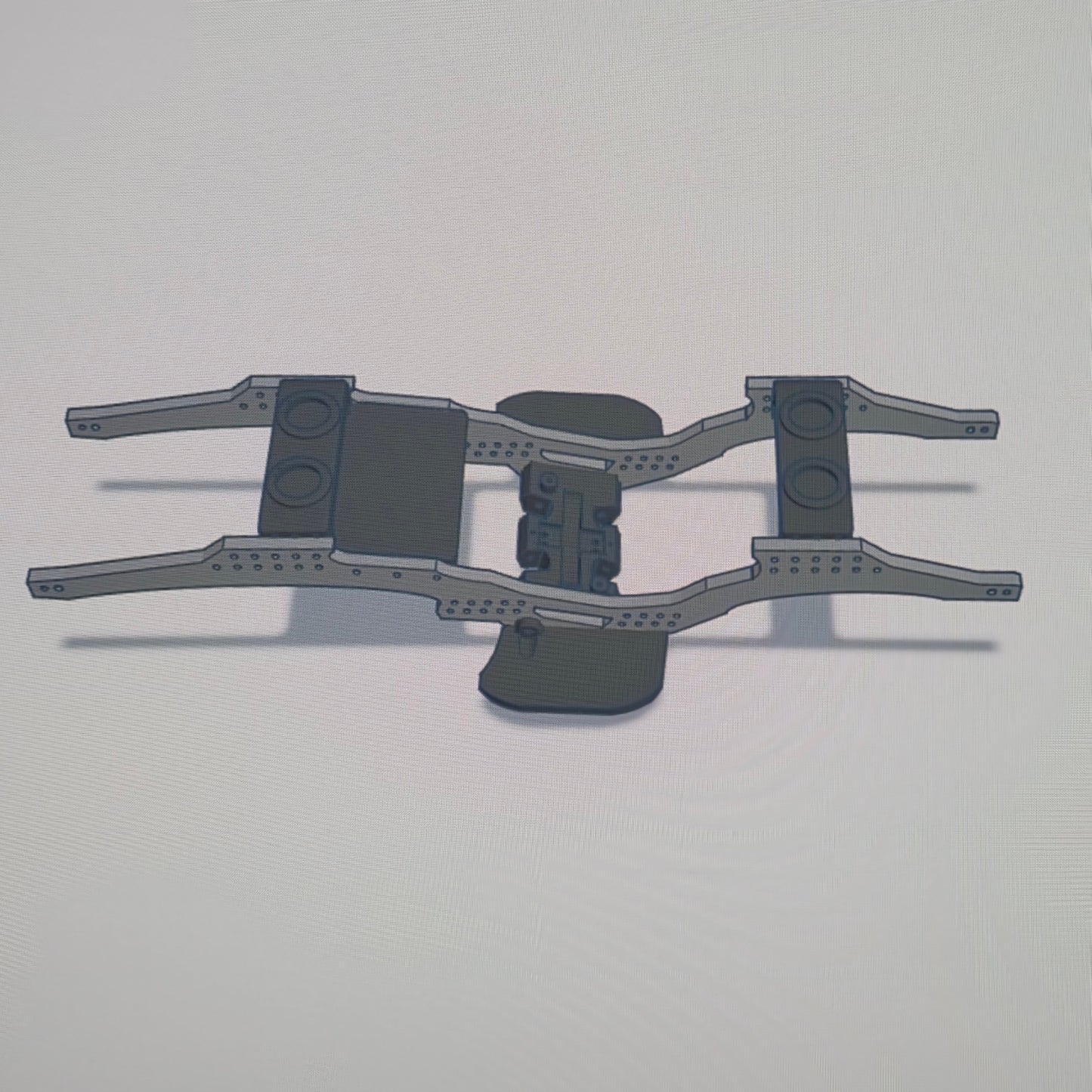

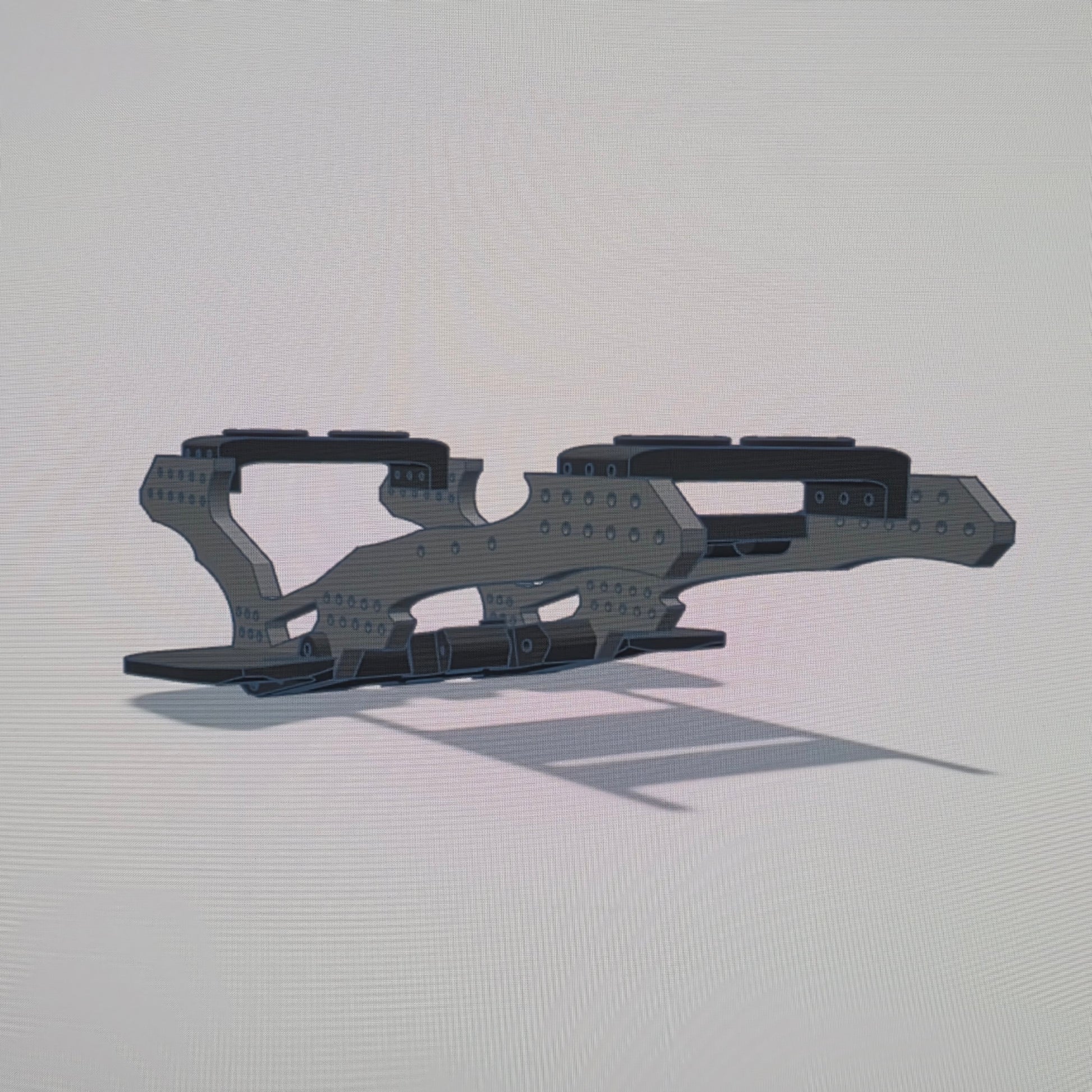

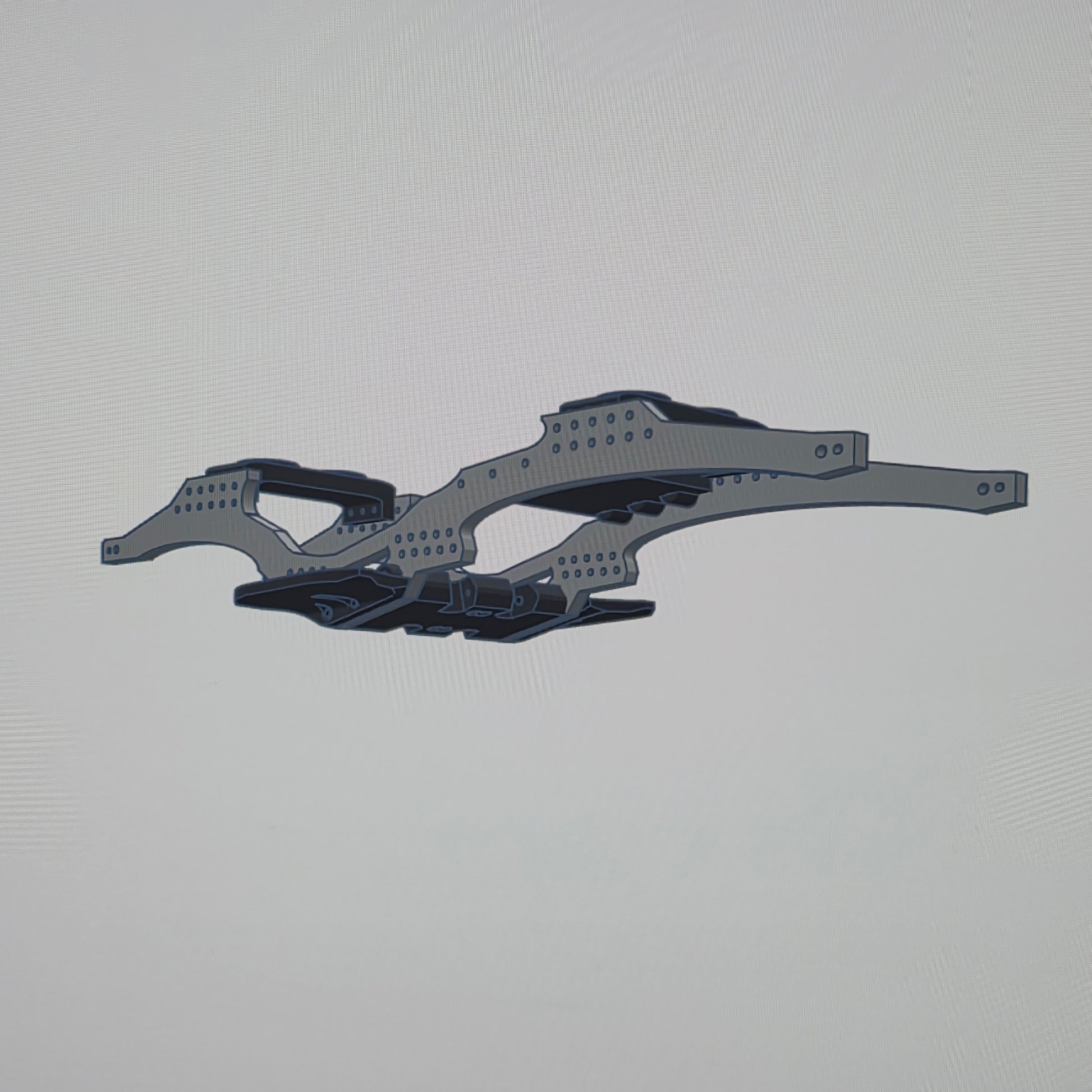

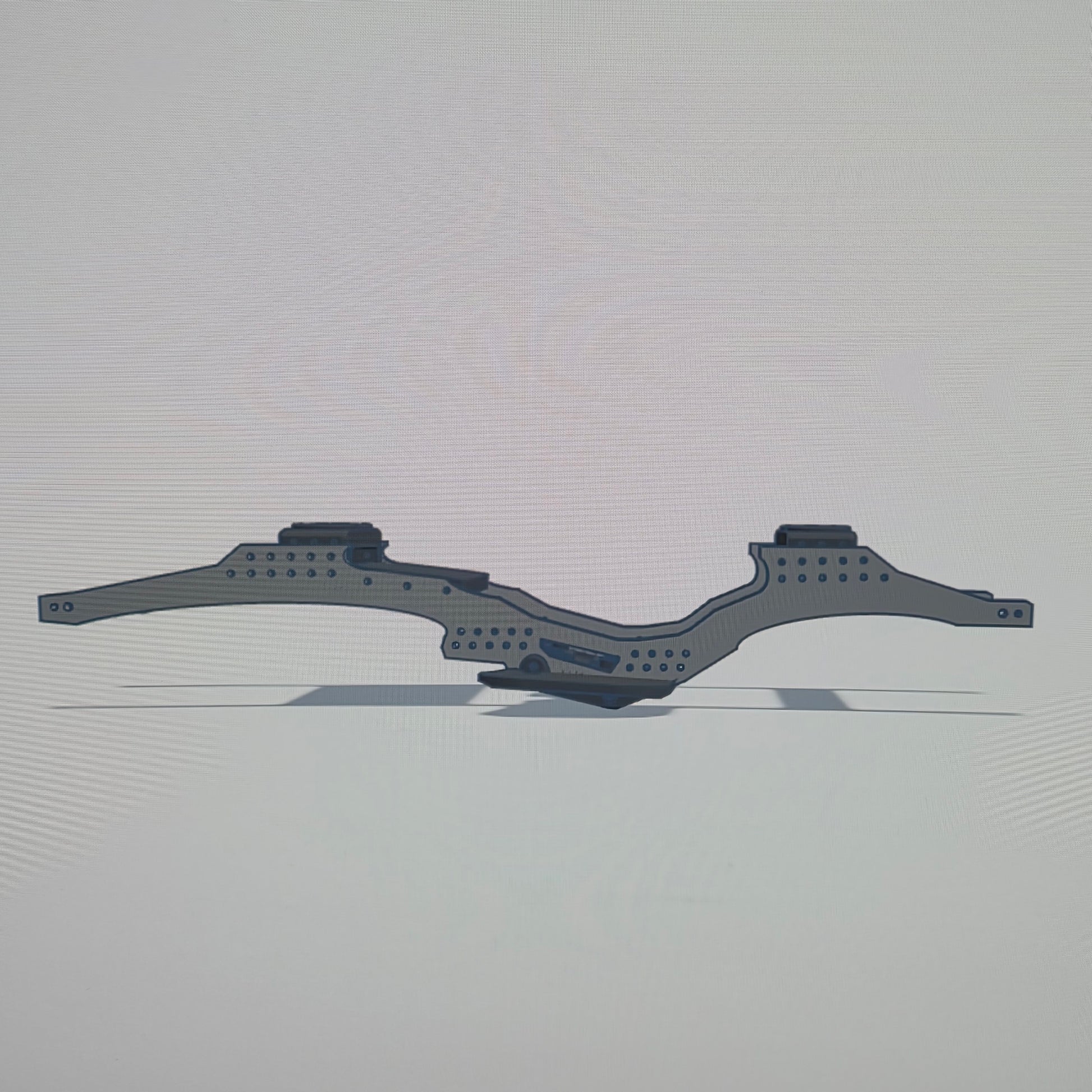

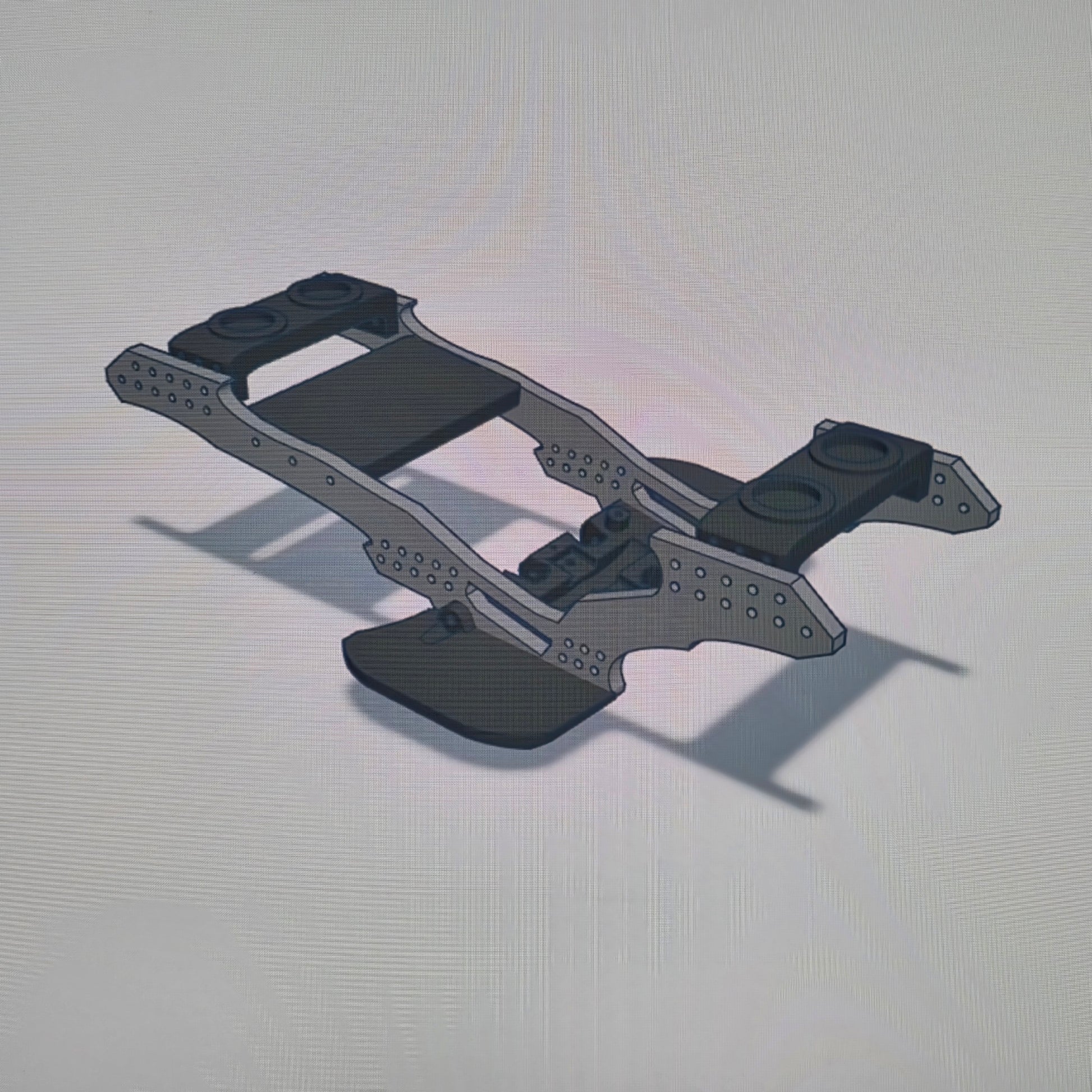

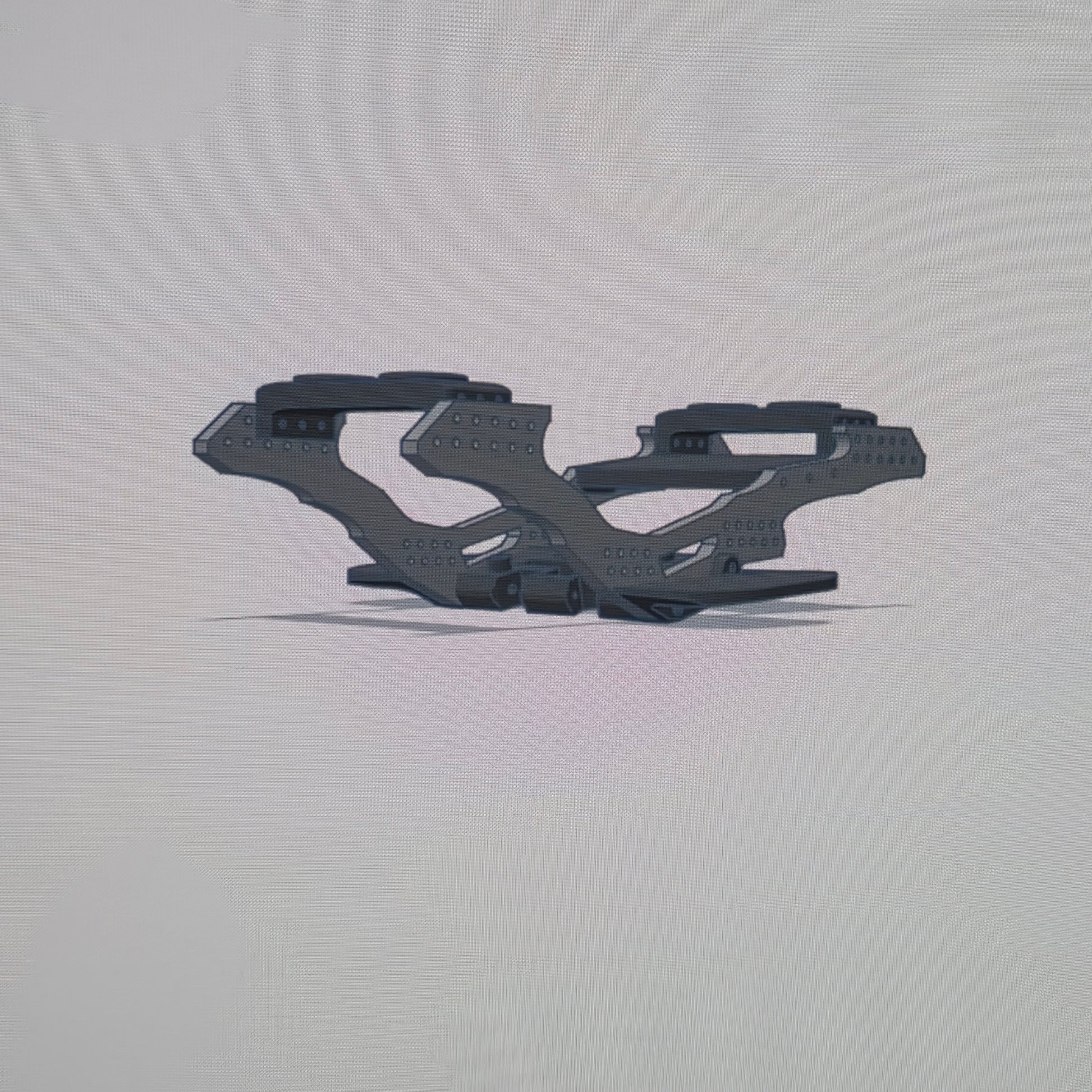

The Hellcat is a lightweight, high-clearance SCX24 chassis platform designed for performance crawling and easy FDM printing. We whipped these up for you guys to print, test, tune, and beat on.
If the community loves them enough, we may release metal production versions later on.

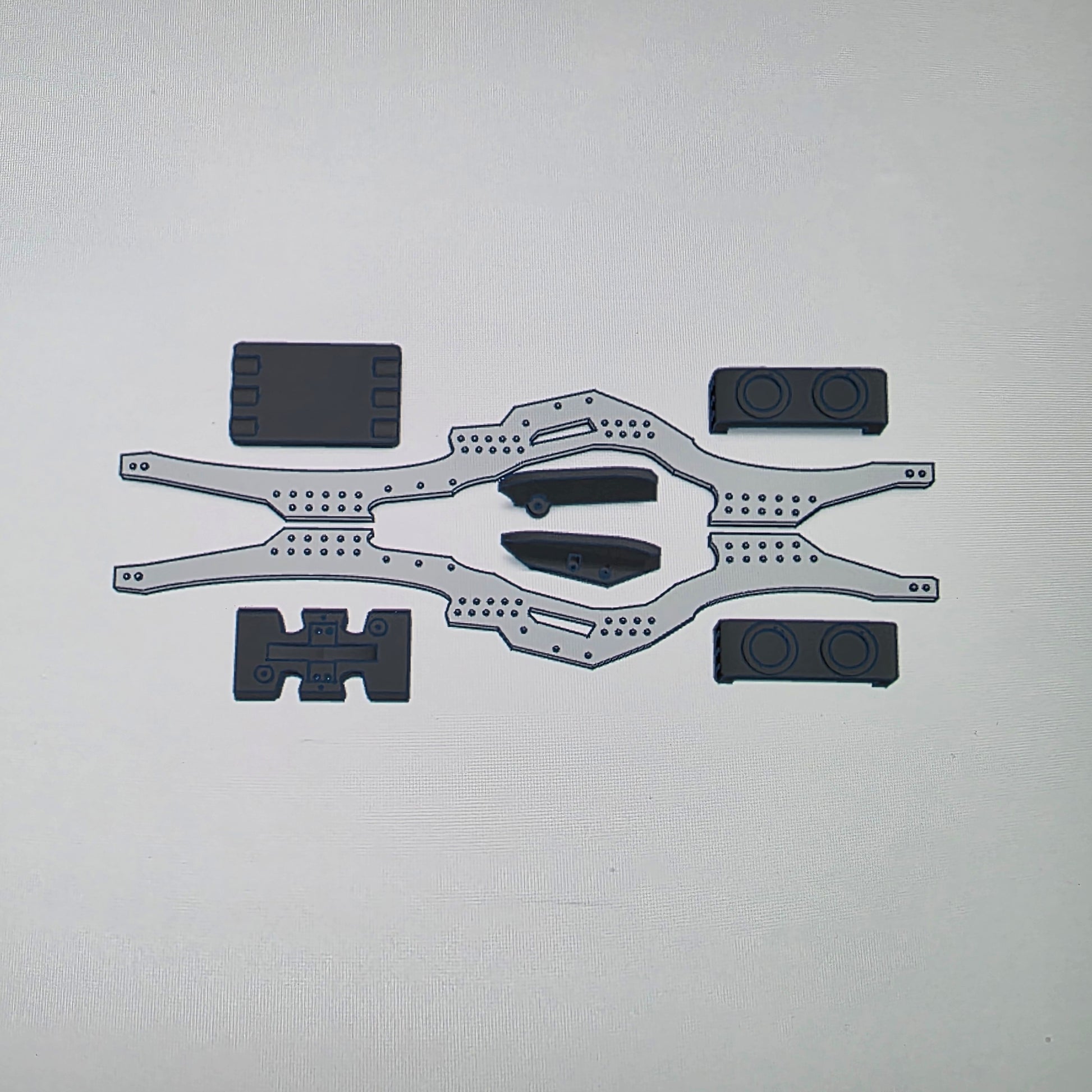

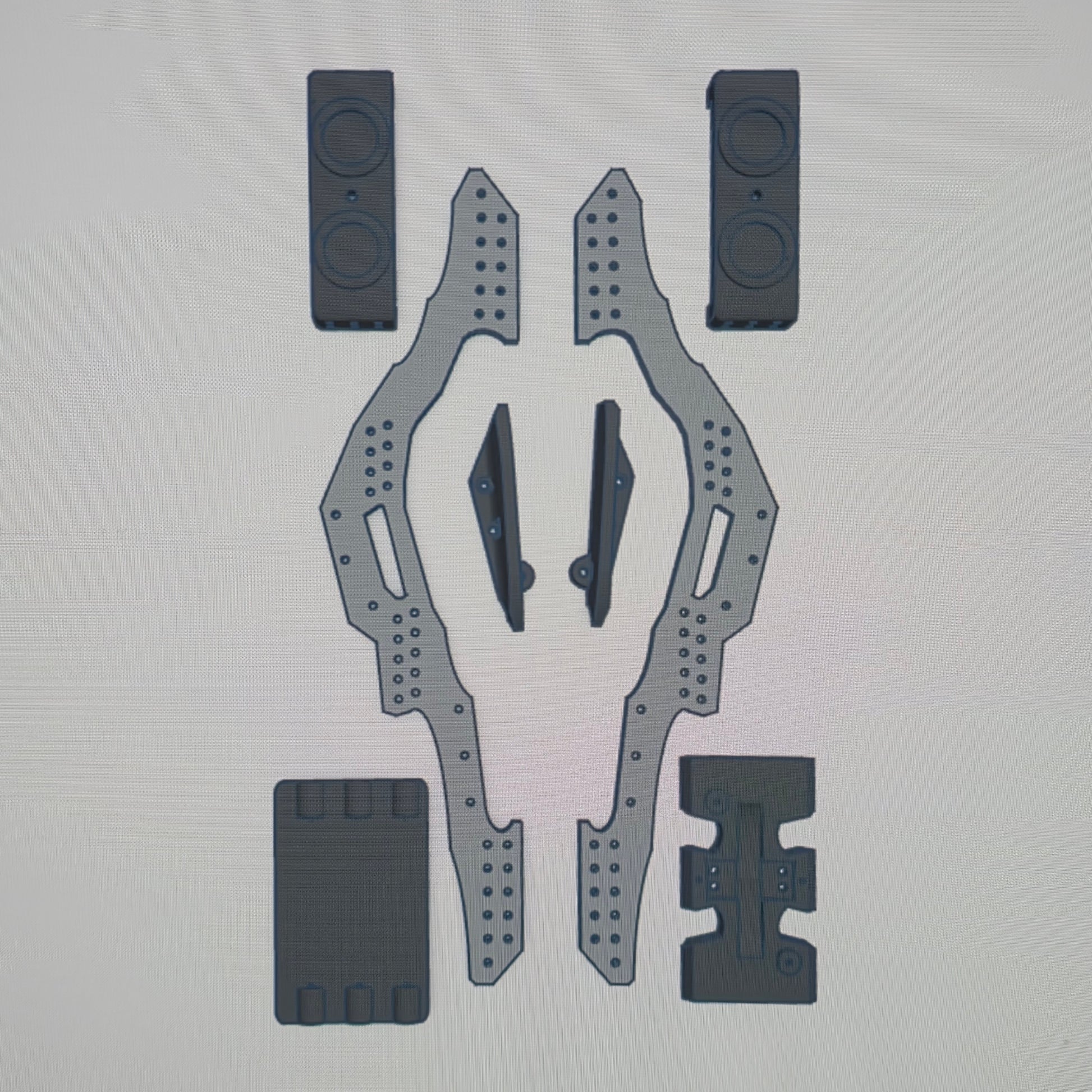

This Compressed download file includes 1 Hellcat chassis variant along with multiple skid plate options and matching mounting components. Select the variant you want below and add to cart.
Chassis Variants
MoFo RC Hellcat Type-S
Designed around full bumper builds
Best suited for:
C10
JLU
Bronco
Similar wheelbase setups
MoFo RC Hellcat Type-R
Designed around:
C10 / JLU front links
Compatible rear setups:
C10
Deadbolt
Gladiator
MoFo RC Hellcat Type-X
Extended wheelbase configuration
Compatible with:
Deadbolt links
Longer custom link combinations
Chassis Features
13.25° angled skid design
Optimized for flat or semi-flat FDM printing
Lightweight performance-focused geometry

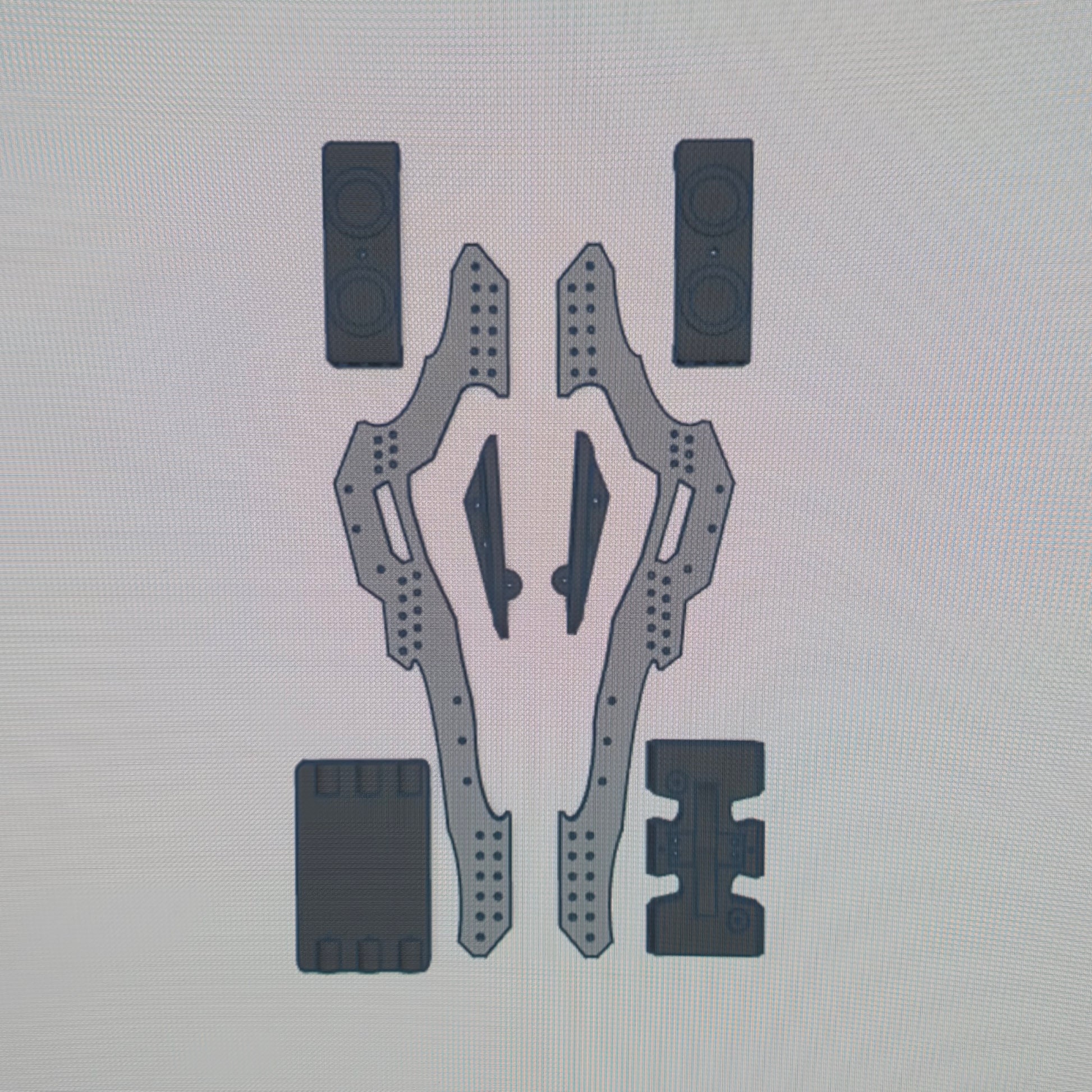

Multiple skid plate configurations included
Shared mounting hardware across all versions
Included Skid Plate Options
Standard HC Skid
Standard transmission mounting geometry.
10° Corrected Skid
Adds a 10-degree transmission angle correction.
Extra-D Clearance Skid
10° corrected geometry
Additional driveshaft clearance
Mirror the skid during printing to reverse transmission direction if desired
Recommended Setup
Motor: Mofo SMP, ROP, MVP for forward facing setup
Shock Length:
24mm–45mm compatible
Sweet spot: 35mm–40mm
Hardware:
1.4mm hardware required
Magnetic Mounts:
Compatible with Unicorn-style magnetic mount setups
Supports 8mm x 2mm magnets
Printing Notes
All parts were designed for straightforward FDM printing.
Depending on your:
printer calibration
filament type
print orientation
slicer tolerances
…you may need to slightly adjust hole sizing or print settings for best fitment.
Disclaimer / License Agreement
These files are provided for personal, non-commercial use only.
By downloading these files, you agree to the following terms:
You may print these files for personal use or gifts
You may NOT sell printed copies for profit
You may NOT redistribute, re-upload, or share the original files
You may NOT sell remixes or derivative works based on these files
You may NOT claim these designs as your own
MoFo RC reserves the right to enforce protection of its intellectual property against unauthorized commercial use or redistribution.
