Mofo RC | Mini Wild Evolution Class 3 Chassis Kit for Axial® SCX24™ - Made in Texas

Mini Wild Evolution is a slightly updated version of our Mini Wild XT 3D printed chassis, but made out of stainless steel. It is a high clearance competition style chassis. It utilizes a bearing carrier with a raised 2 piece driveshaft setup.

The Mini Wild Evolution chassis kit was designed around our pancake motor lineup with a forward facing motor mount. For setups using X15 axles with the stock 50% underdrive gearing, we recommend the ROP motor combo or the MVP motor running on 3S. When paired with other axles, the SMP, MVP, or ROP motors can be used with any gearing configuration to achieve your preferred speed.

Specs:

• Made in Texas
• Stainless Steel Frame
• Custom High Clearance Bent Links
  • Deadbolt Front
  • Gladiator +10mm Rear
• Skid Angle: 10*
• Weight: 70g

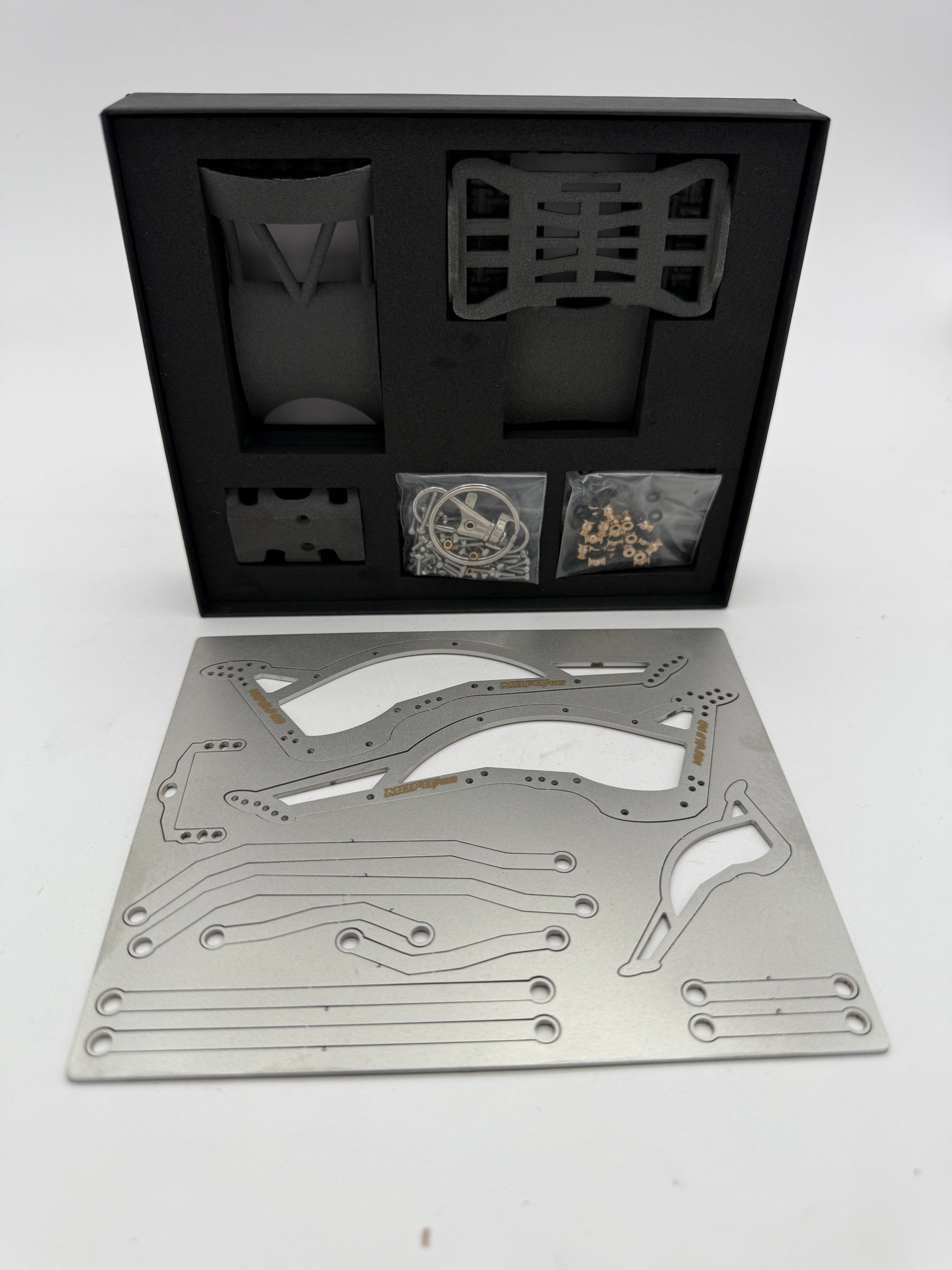

Includes:

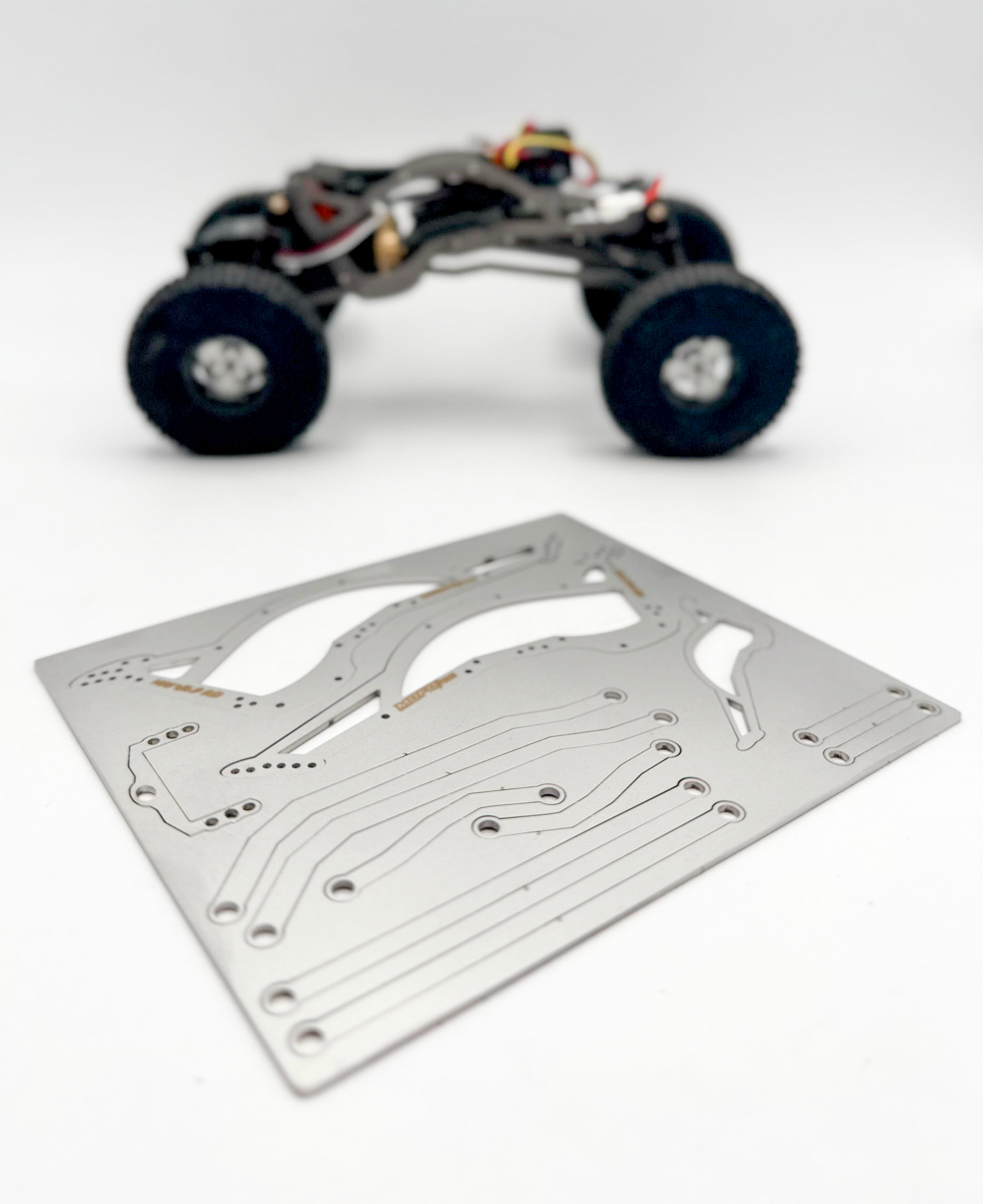

• Stainless Steel Rails
• Custom Stainless Steel Links w/Brass Link Balls
• Nylon Top Motor Protection Cover
• Nylon 1 Piece Battery Tray/Rear ESC/Electronics Mount with Bearing Carrier
• Nylon Custom Skid Plate
• Hardware Pack
• Limit Strap Mount
• Mofo Mini Wild Evolution Rail Keychain

Required Components

• Electronics

  • Brushless Motor: Mofo RC | SMP, MVP, ROP Pancake Motors
  • ESC: Mofo RC | Rockwolf Brushed/Brushless ESC
  • Servo: Mofo RC | Black Label 2.0, Servo Beast

• Chassis Components

  • Transmission: Mofo RC | Aluminum/Brass Bulletproof Transmission
  • Driveshafts:
    • 2x 32.5-40mm
    • 1x 40-52mm
  • Carrier Bearing Components:
    • 2x 8mm x 4mm x3mm bearings
      • Standard lower shaft bearings
  • Axles: Mofo RC X15s, Mofo RC 44s
  • Shocks: ~40-52mm
    • Note shorter shocks may require adjustment for driveshaft/motor clearances

• Extras/Nice to Haves
  • CowRC Udder Butter Grease
  • Mofo RC 0.05" Hex Driver
  • Mofo RC 1.5mm Hex Driver
  • Mofo RC 4mm Nut Driver
  • Side Cutters
  • File/Sandpaper
  • Blue Threadlocker
  • CA Glue

• Extras/Nice to Haves
  • CowRC Udder Butter Grease
  • Mofo RC 0.05" Hex Driver
  • Mofo RC 1.5mm Hex Driver
  • Mofo RC 4mm Nut Driver
  • Side Cutters
  • File/Sandpaper
  • Blue Threadlocker
  • CA Glue

Important Notes:

• Plastic pieces are constructed out of SLS Nylon 12. Due to the small hole size and material, we recommend you lightly snug parts. Do not over tighten them as it is easy to do so with the small M1.4 screws included.
  • Super/CA glue can be used on the screw threads to as a thread locker in the plastic pieces.
  • Use side cutters and sand free from parts tree and smooth

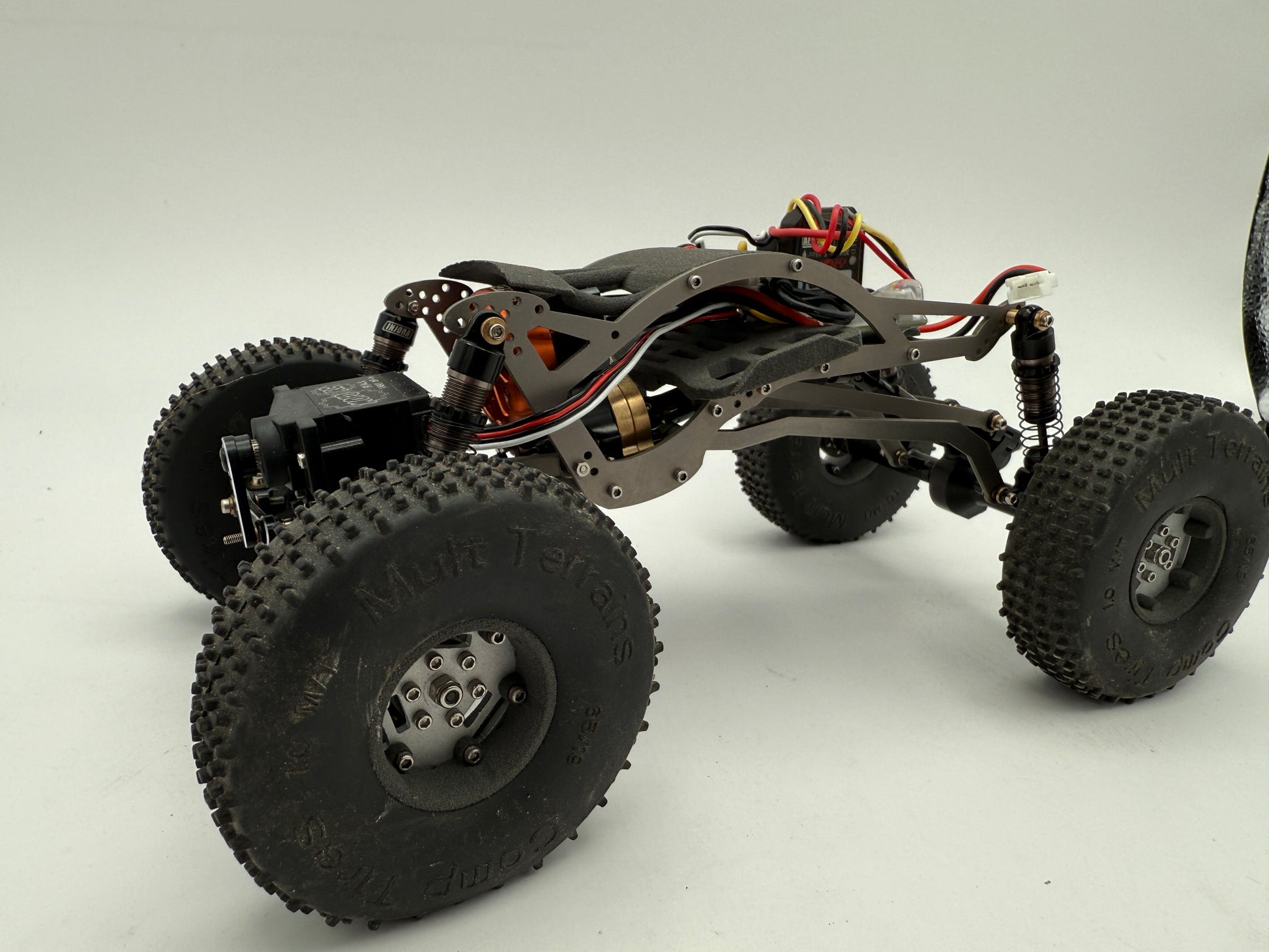

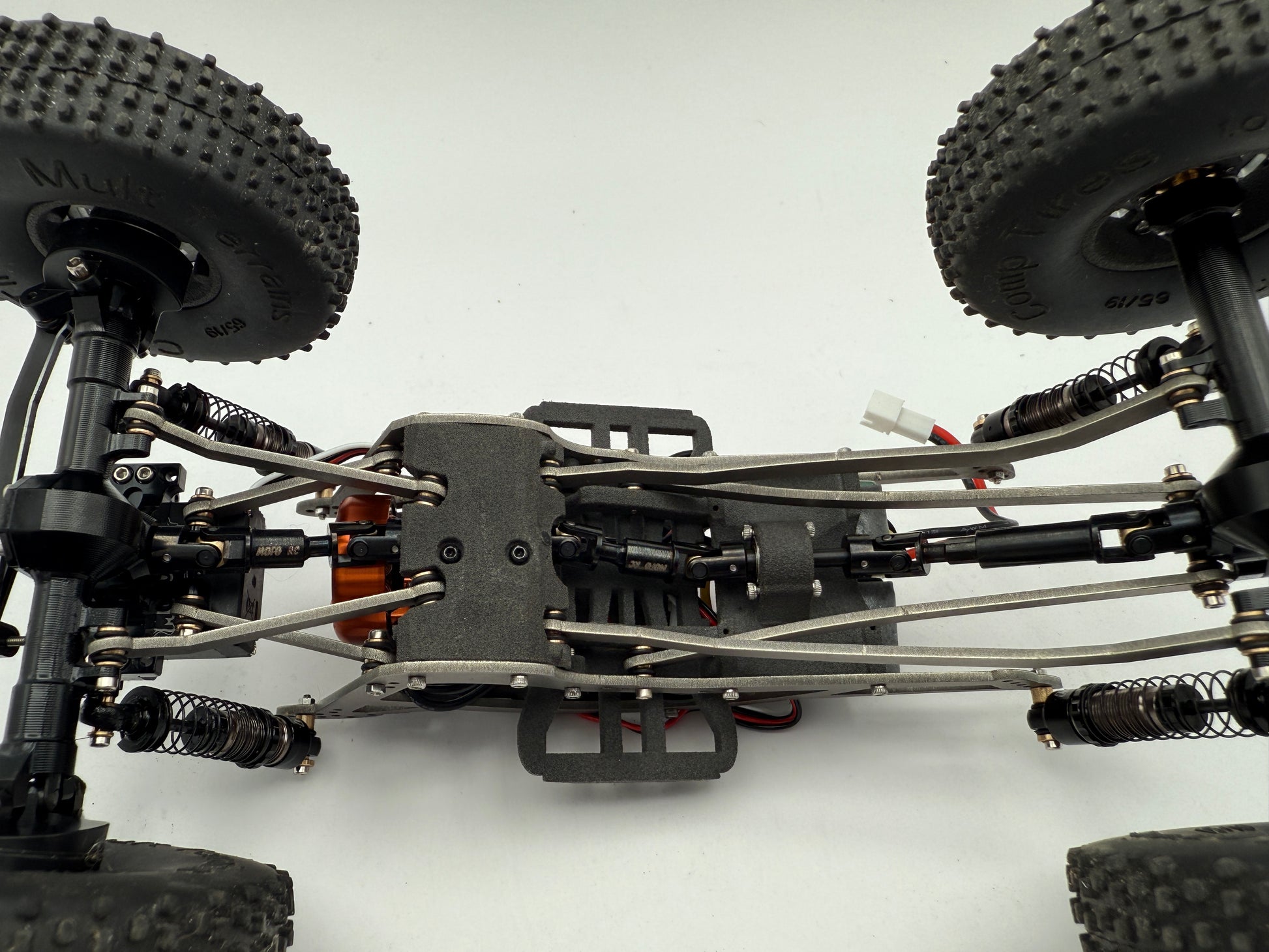

• Electronics in photos are not included.
