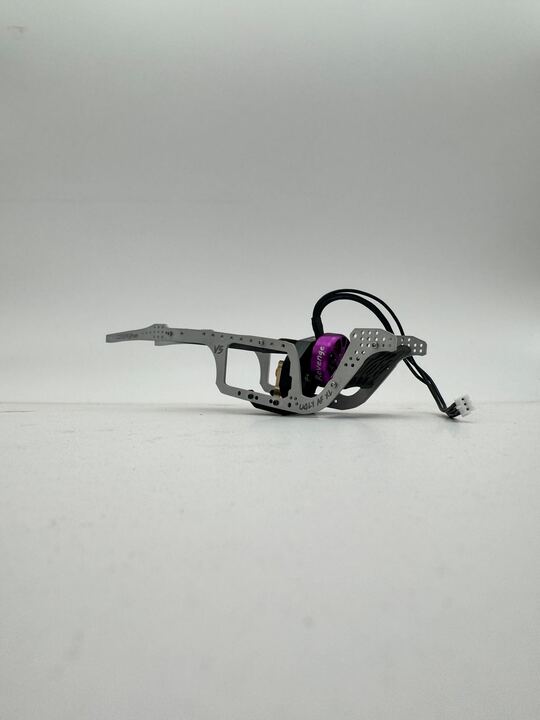

Mofo RC | Ugly AF Chassis V5 Standard & XL Editions (For Axial® SCX24™) - Made in Texas

Mofo RC | Ugly AF Chassis V5 Edition

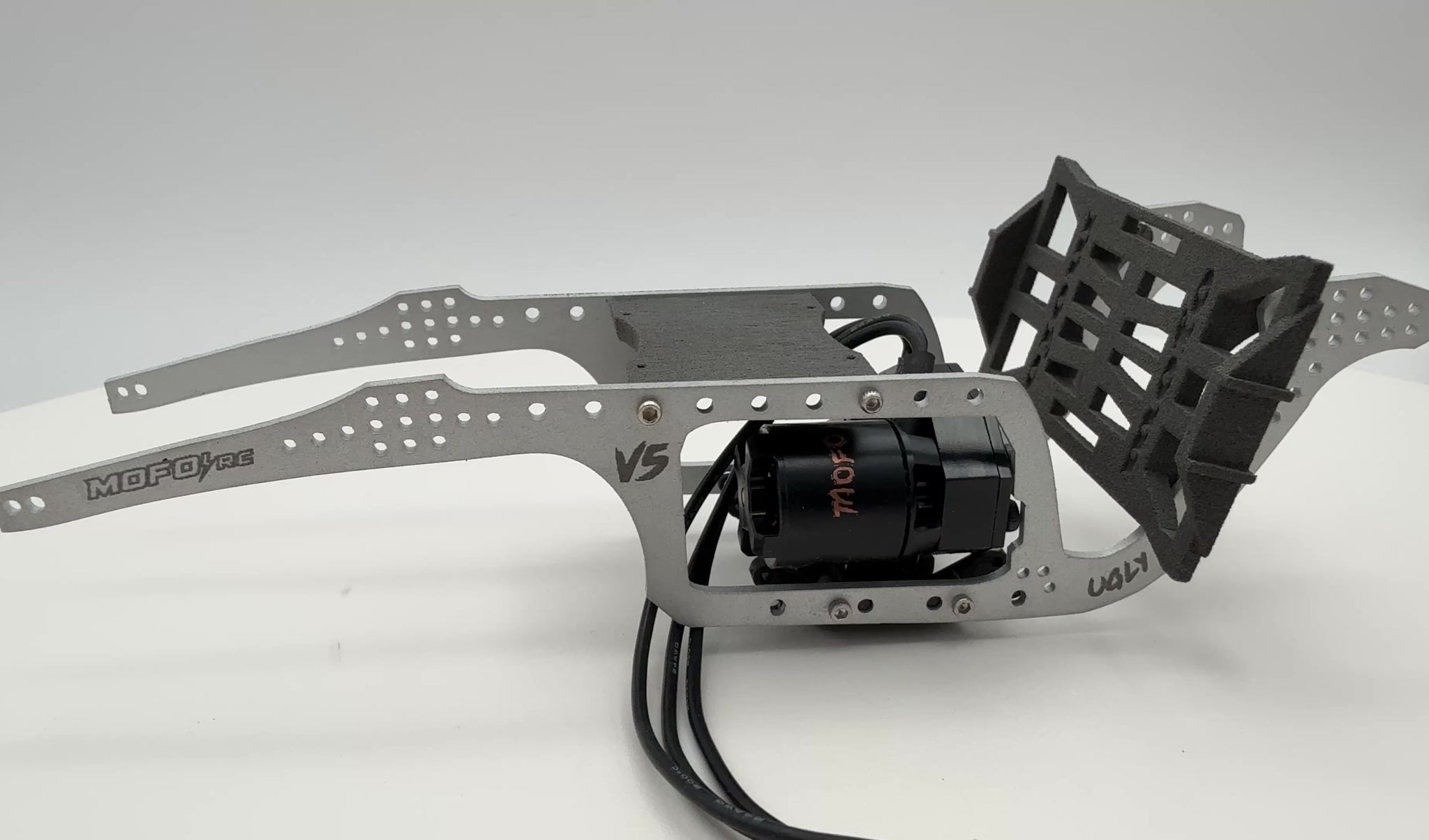

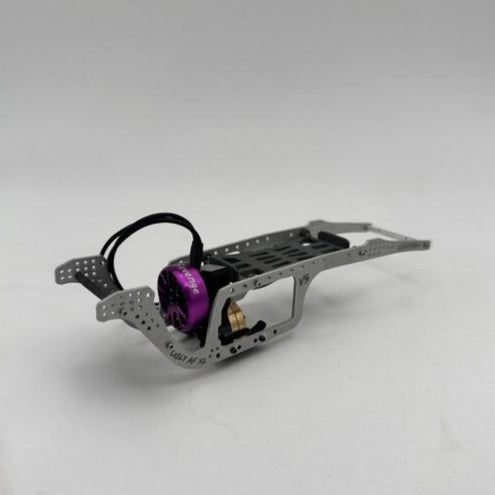

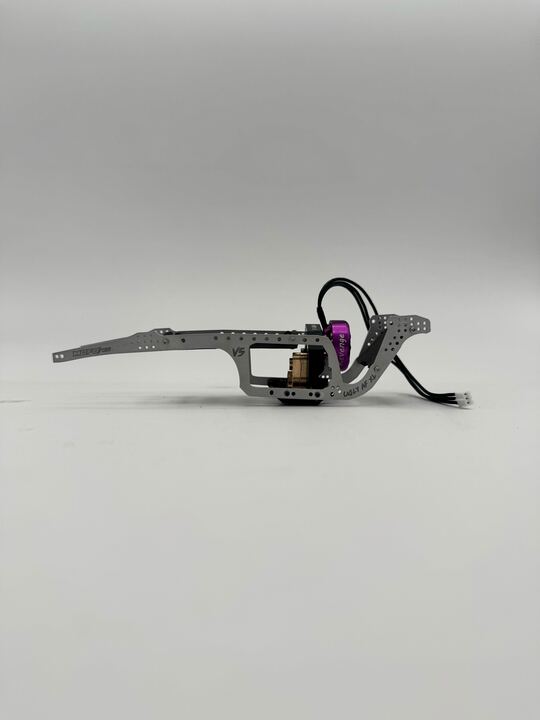

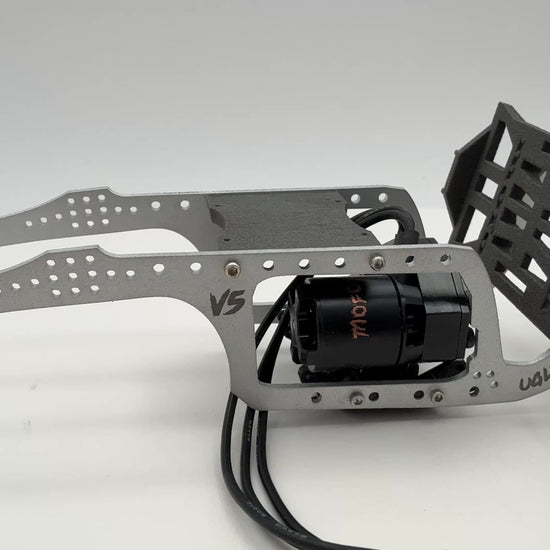

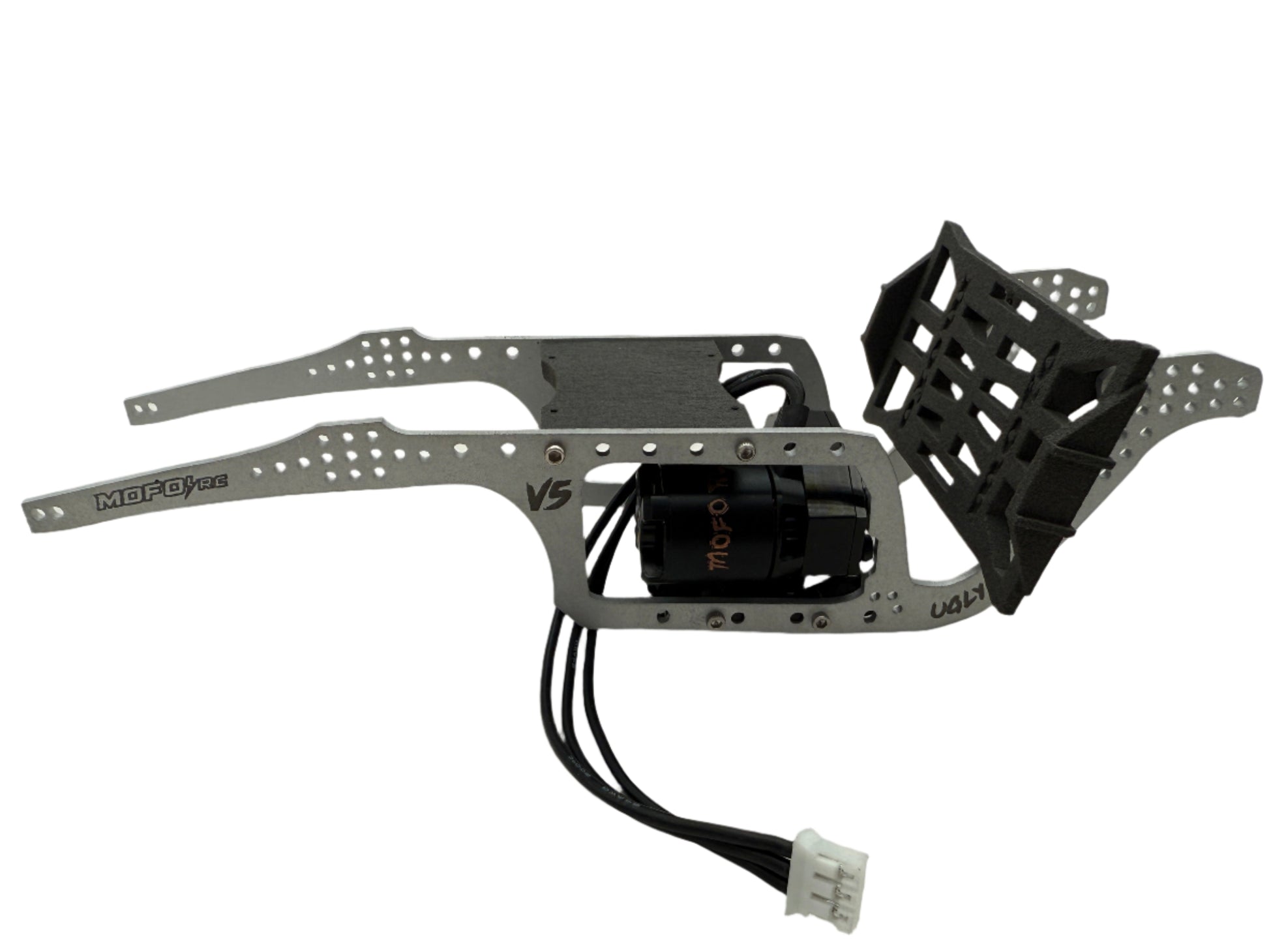

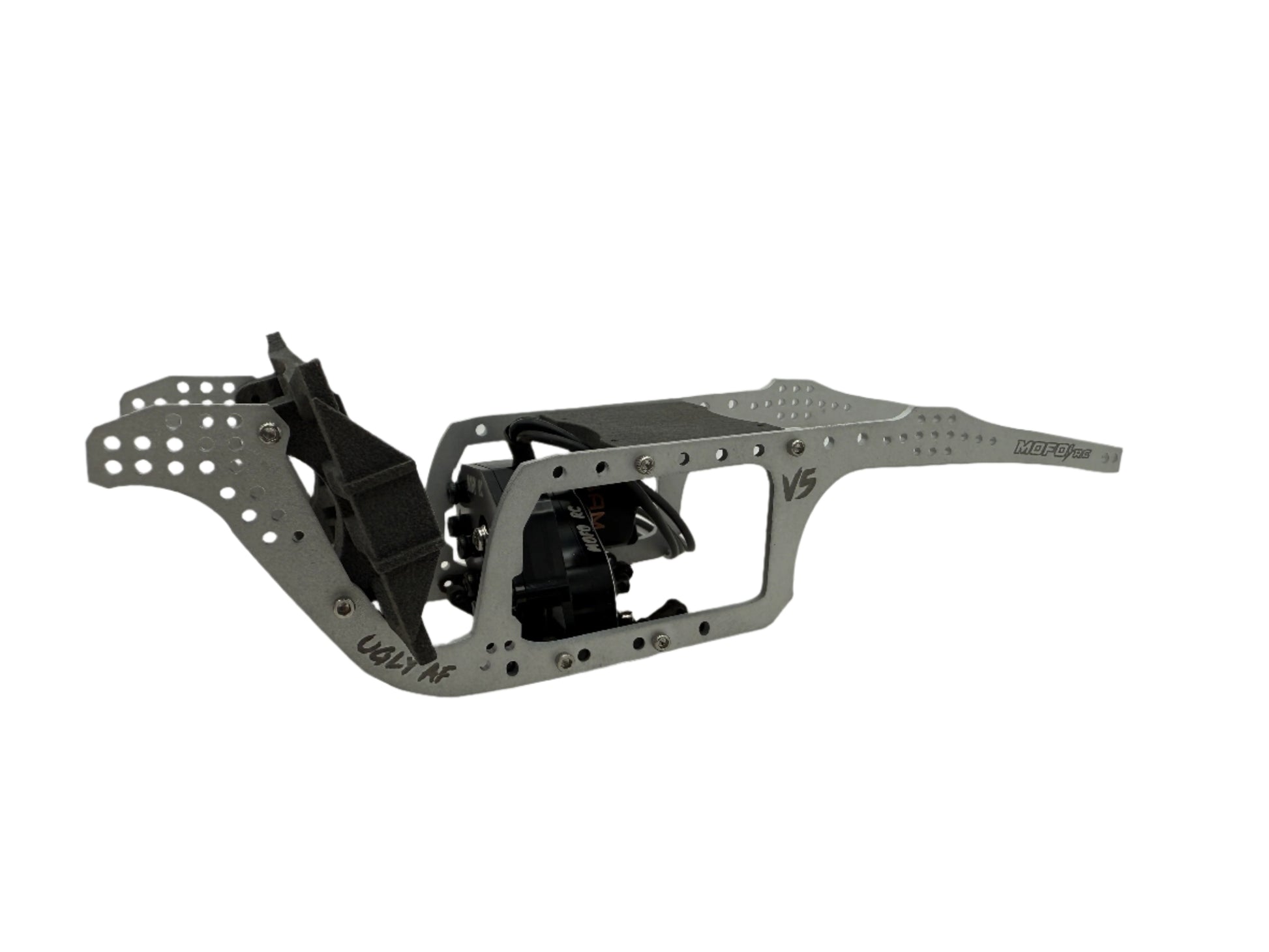

This V5 version of our classic Ugly chassis now allows you to utilize our Nano Brushless motors and BigBlock brushed motors that previously could not fit without some chassis modification. Also now available in XL (Gladiator) length!

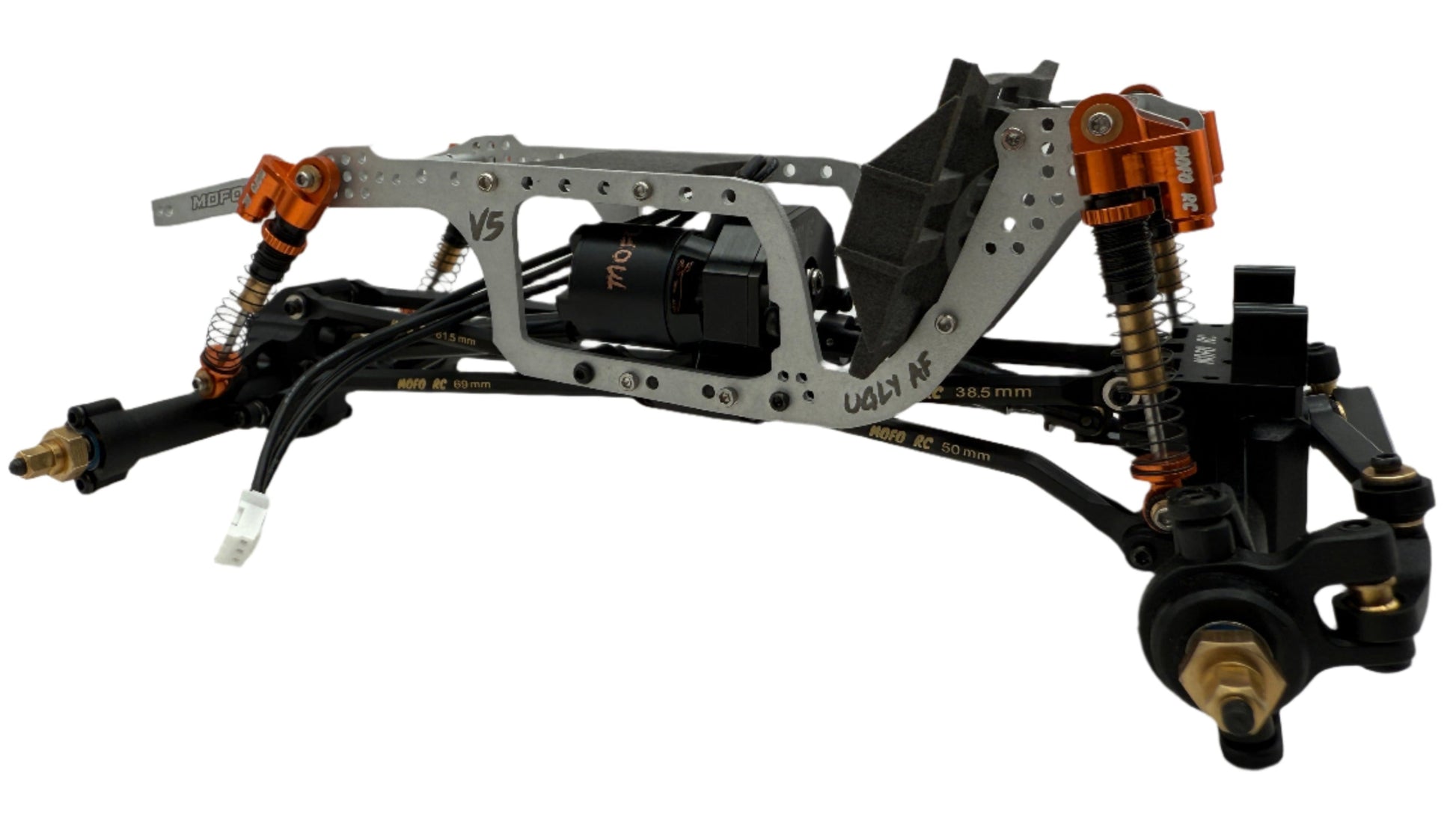

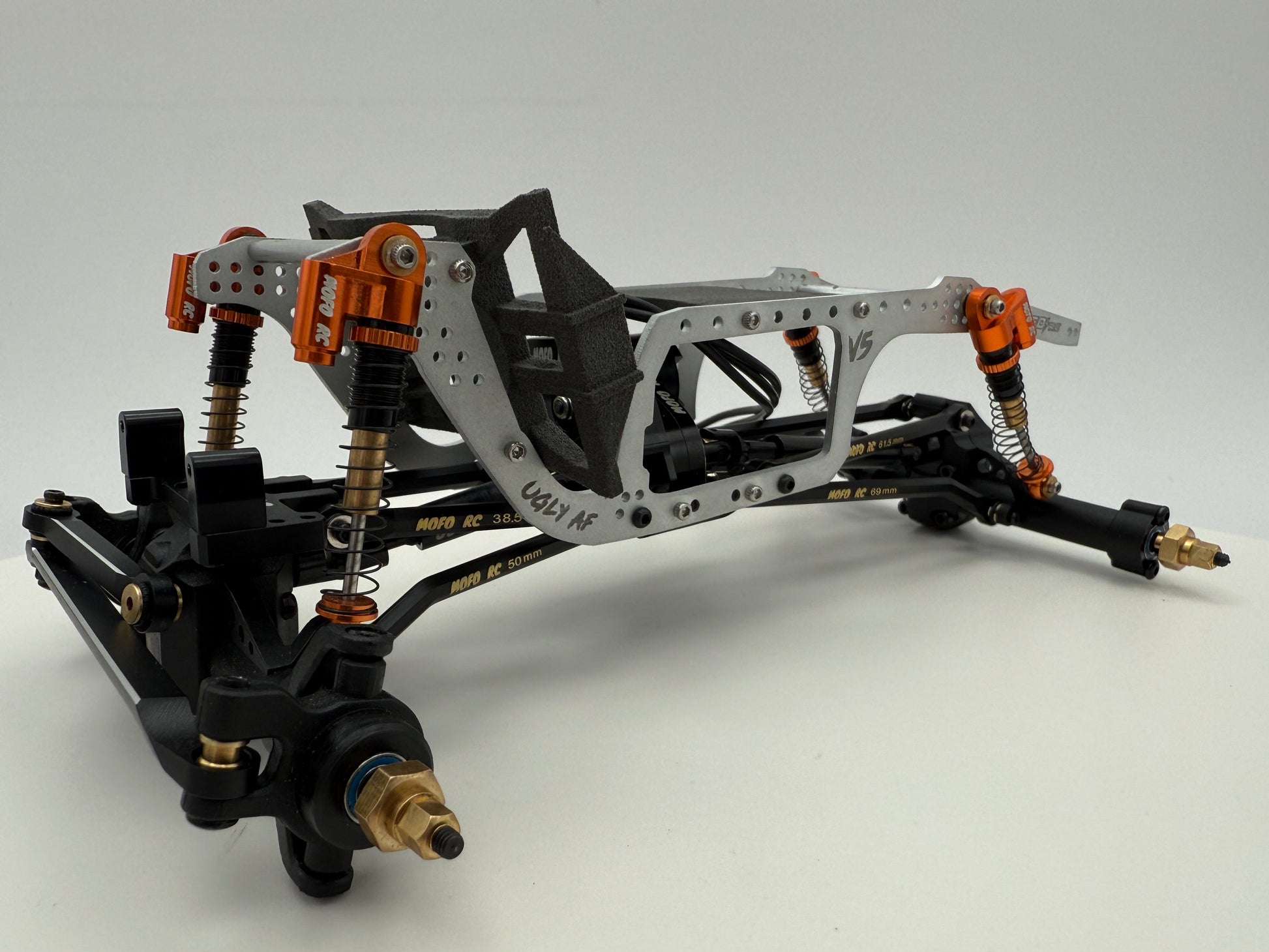

The Ugly AF is the boss of the rocks and includes everything you need to convert any SCX24 into a low center of gravity and competition rig for night and day performance gains.

Specs:

• 6 Degree Skid Angle
• Forward Battery Mount (Must be moved for some pancake motor setups)
  • New Inline battery mount included with XL models
• Easy to Assemble
• Many shock & link mounting locations
• Material Options: Aluminum Rails (12-14g) (Titanium will be available in the future)
• Made in Texas

Includes:

• Chassis Rails
• ESC Tray

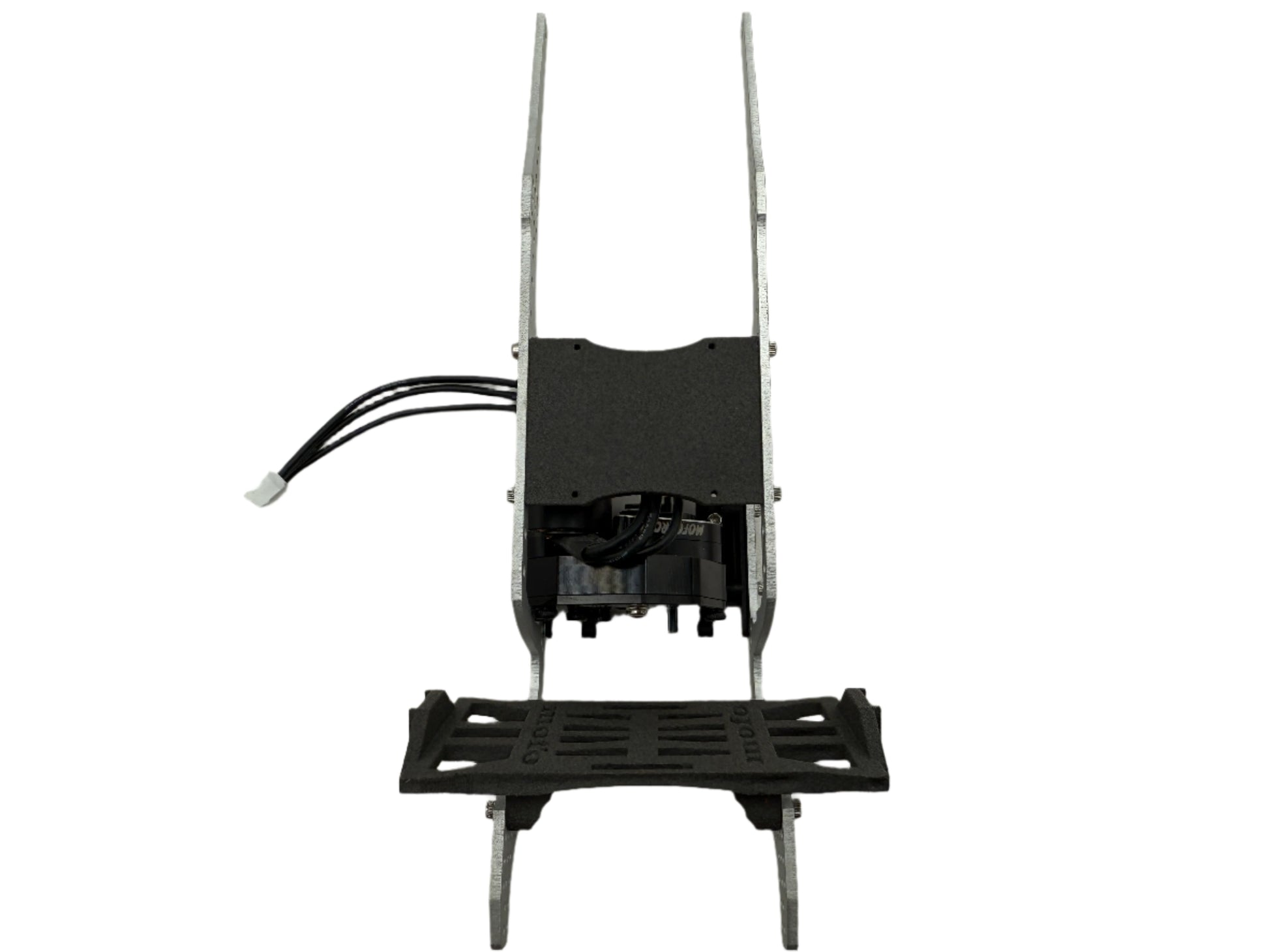

• Battery Tray
• Hardware Pack
• Headlight Relocation Servo Bracket

Recommended Setup:

Electronics

• Brushed Motor: Mofo RC | TorqueBeast 50
• Brushless Motor: Mofo RC | NanoBam 3500kv or NanoBeast 3200kv w/ standard/LCG mount
• ESC: Mofo RC | Rockwolf Brushed/Brushless ESC
• Servo: Mofo RC Black Label 2.0, or Servo Beast

Chassis Components

• Transmission: Stock or Mofo RC Aluminum/Brass Bulletproof
• Driveshafts
  • Standard: Front (40mm-52mm), Rear (60mm-83mm)
  • XL: Front (40mm-52mm), Rear (65mm-95mm)
• Links:
  • Standard: C10 Front (50mm Lower, 39.5mm Upper), Deadbolt rear (69mm Lower, 61.5mm Upper)
  • Xl: Gladiator Front (50mm Lower, 39.5mm Upper), Gladiator rear (78mm Lower, 70mm Upper)
• Axles: Mofo RC X15s, Mofo RC 44s, or Stock
• Shocks: ~39-52mm, Ex: Mofo RC | Double Barrel Friction Shocks

Extras/Nice to Haves

• Mofo RC Body Kit- Currently only fits standard lengths
• CowRC "Udder Butter" Grease
• Mofo RC 0.05" Hex Driver
• Mofo RC 1.5mm Hex Driver
• Mofo RC 4mm Nut Driver
• Side Cutters
• File/Sandpaper
• Blue Threadlocker
• CA Glue

Notes:

• If you've purchased an Ugly AF from us before, note that this edition no longer has threaded holes.
• CA glue can be used on screws going into the plastics
• Driveshaft length will depend on which version of the SCX24 you use and the links you choose to utilize.

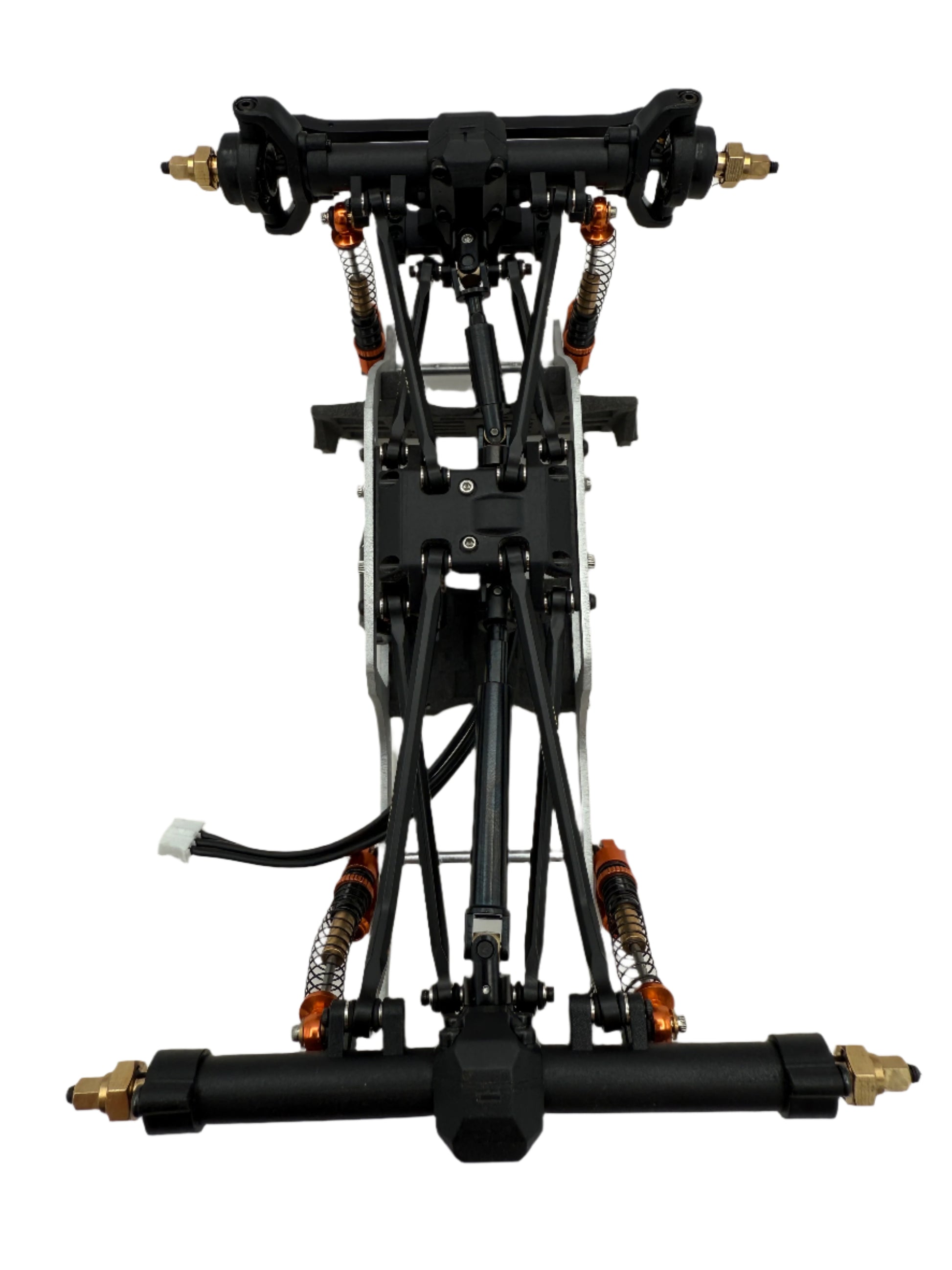

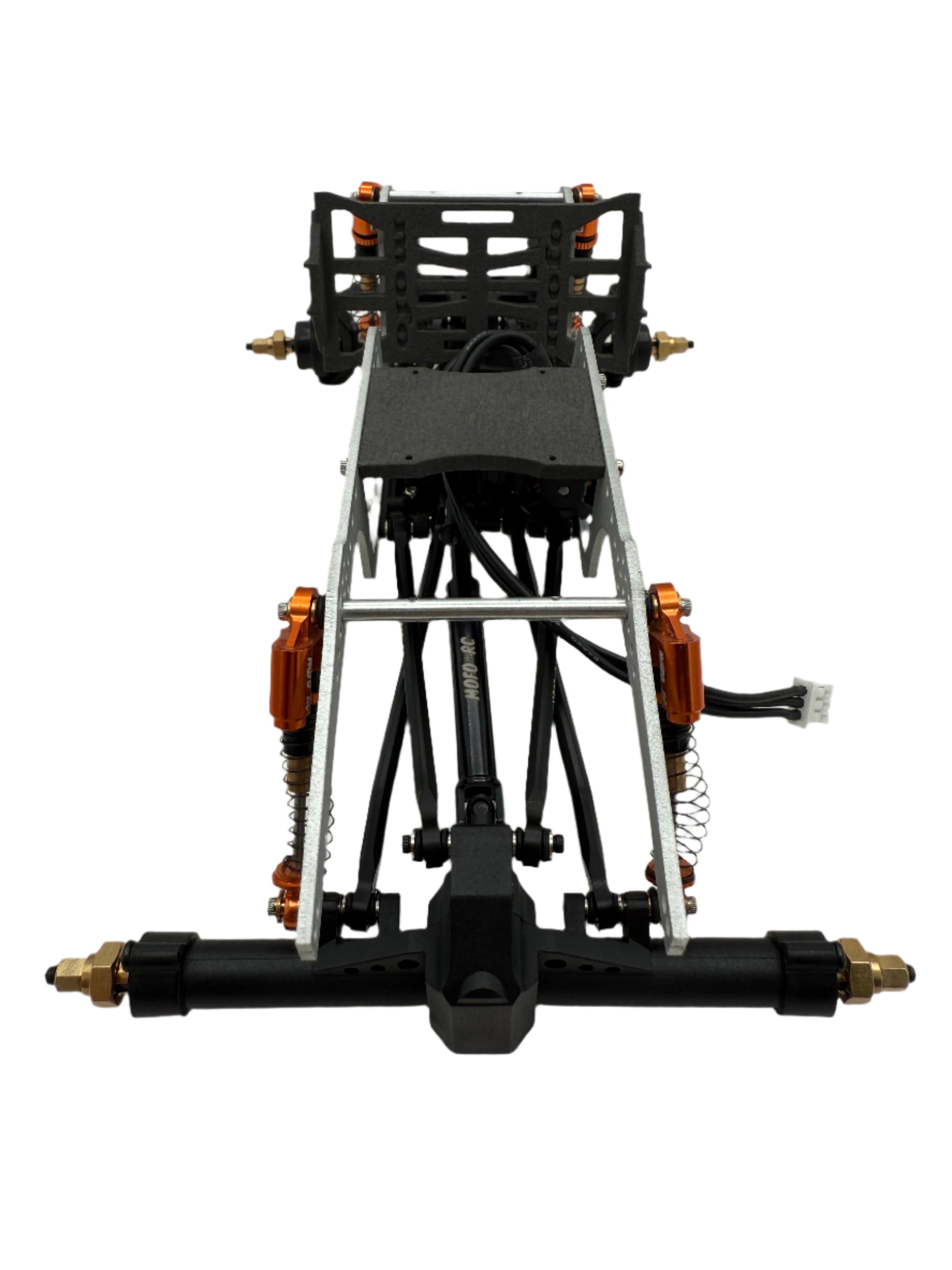

• Electronics and accessories shown are not included in this kit.

Demonstrations and assembly instructions available on our YouTube channel for previous editions. Assembly is similar.
