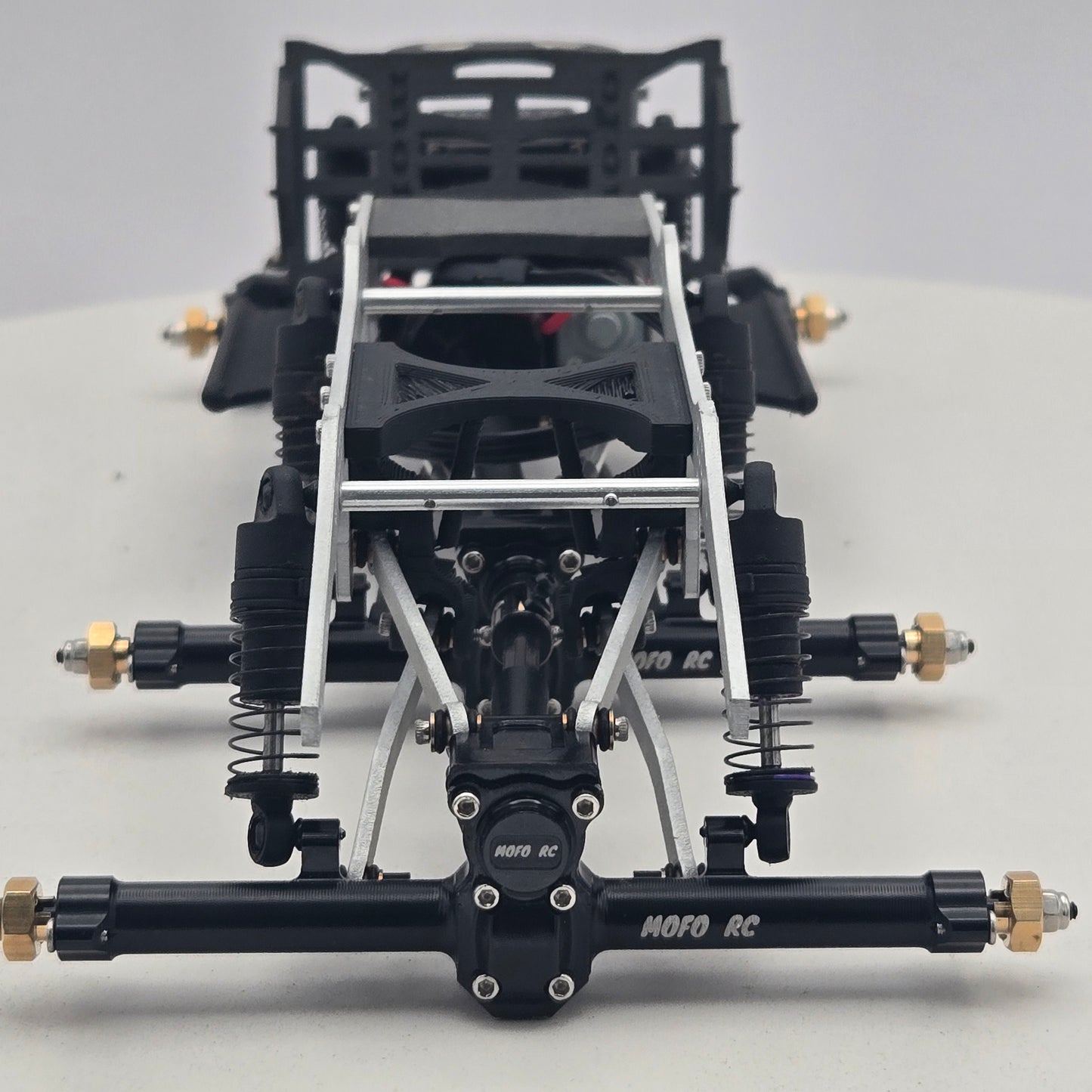

Mofo RC | UAF6 6x6 Axial® SCX24™ Chassis Kit - Made in Texas

The Mofo RC Ugly 6x6 chassis is designed to integrate with SCX24 platform components. It requires the C10, Bronco, or JLU link sets for the front links. The kit includes titanium flat links for the rear, with the rear third axle utilizing deadbolt lower links and C10/JLU upper links to ensure precise fitment and reliable performance.

The rear third axle features a captured-style block with offset link mounting points, enhancing durability and enabling full articulation by not restricting attachment to just the outer points. This design offers superior strength through both inner and outer capture, while simplifying installation by eliminating the need for nuts to secure the links, ensuring a reliable long-term solution.

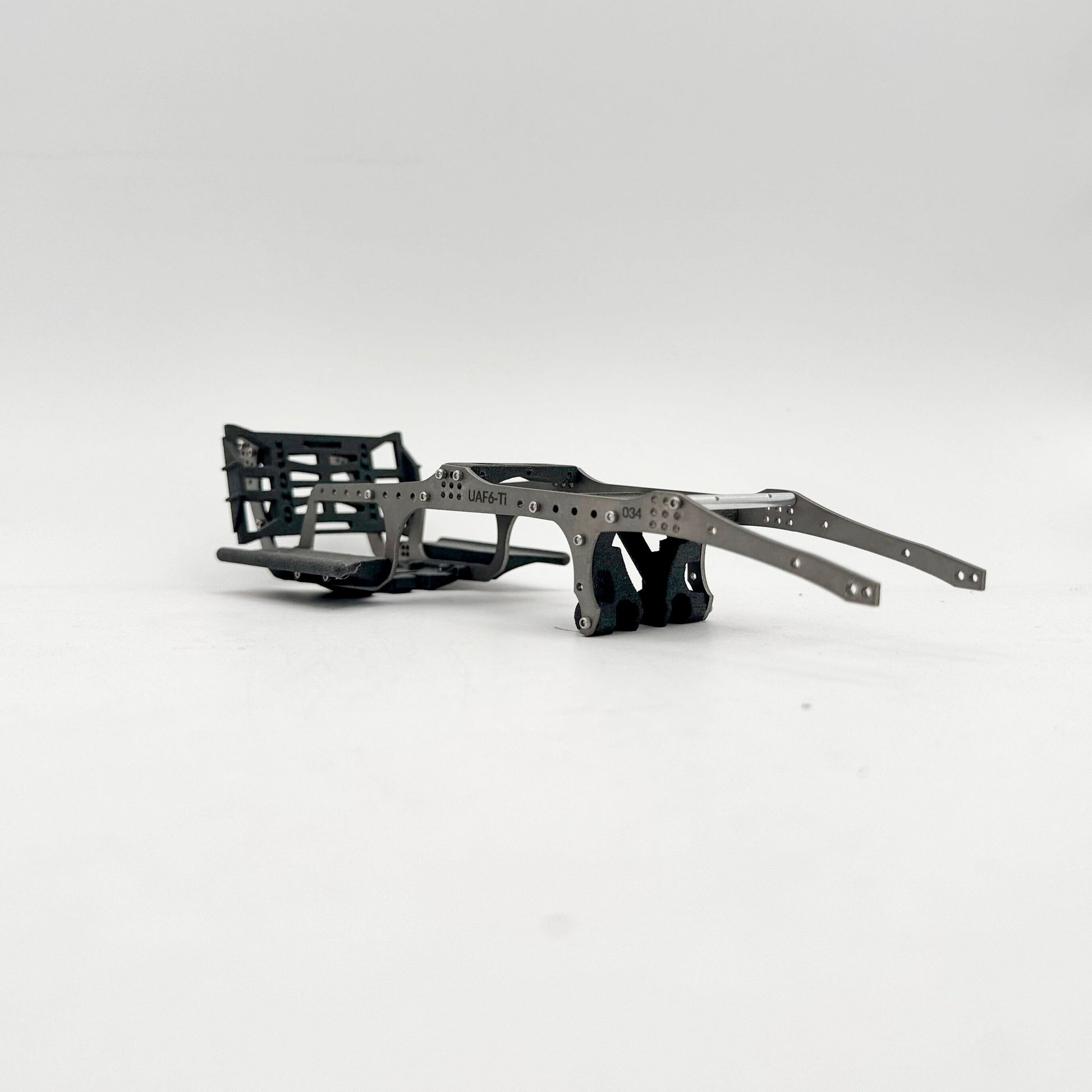

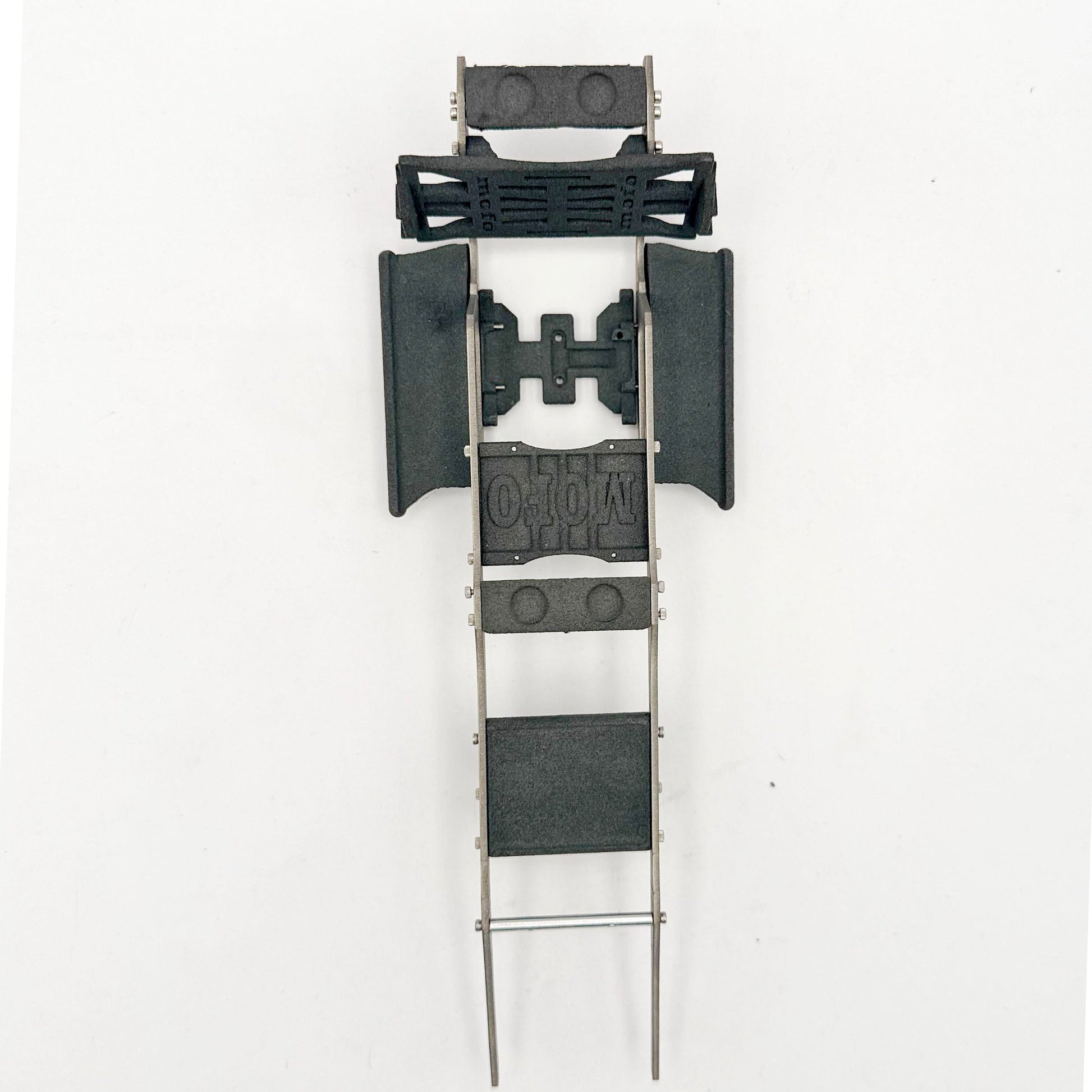

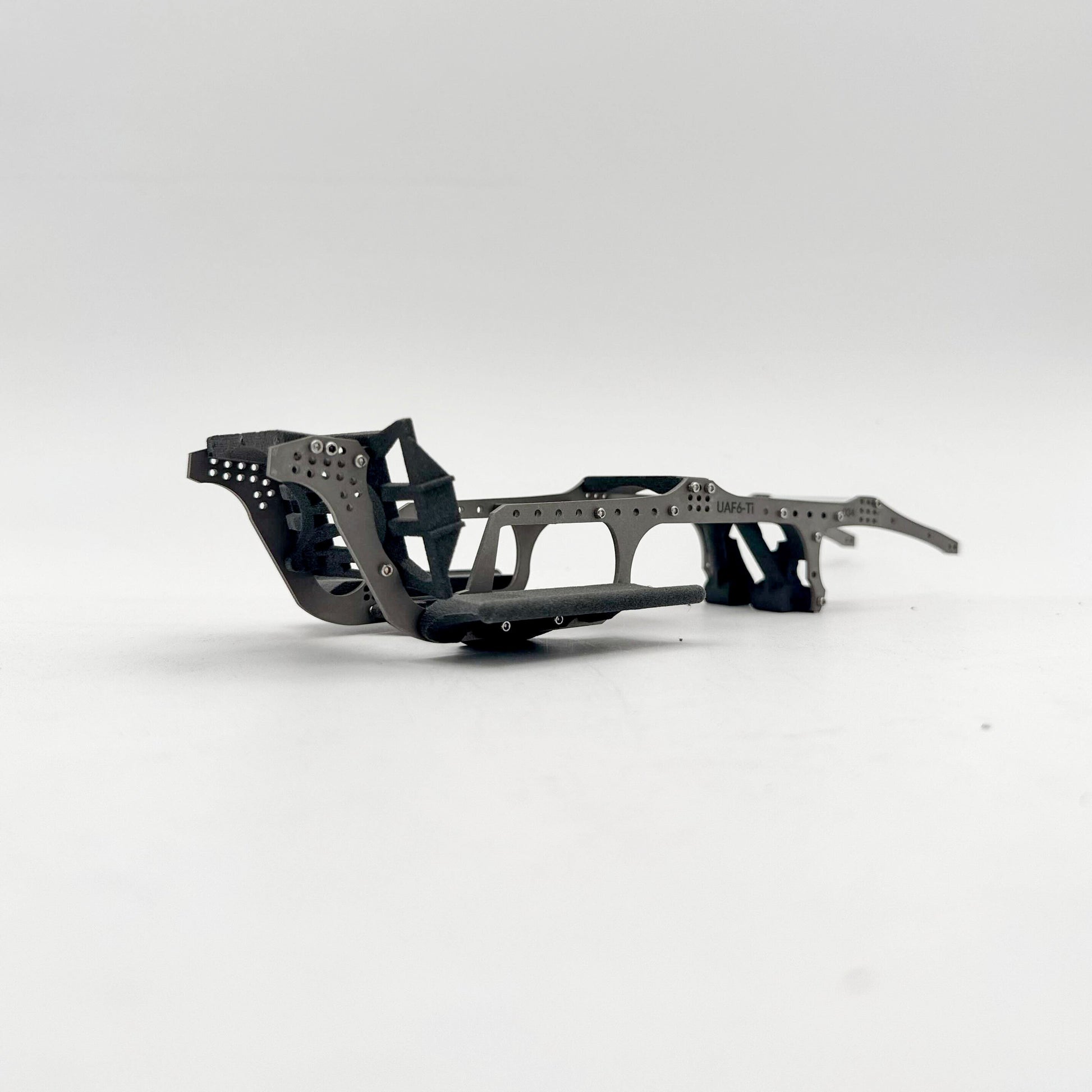

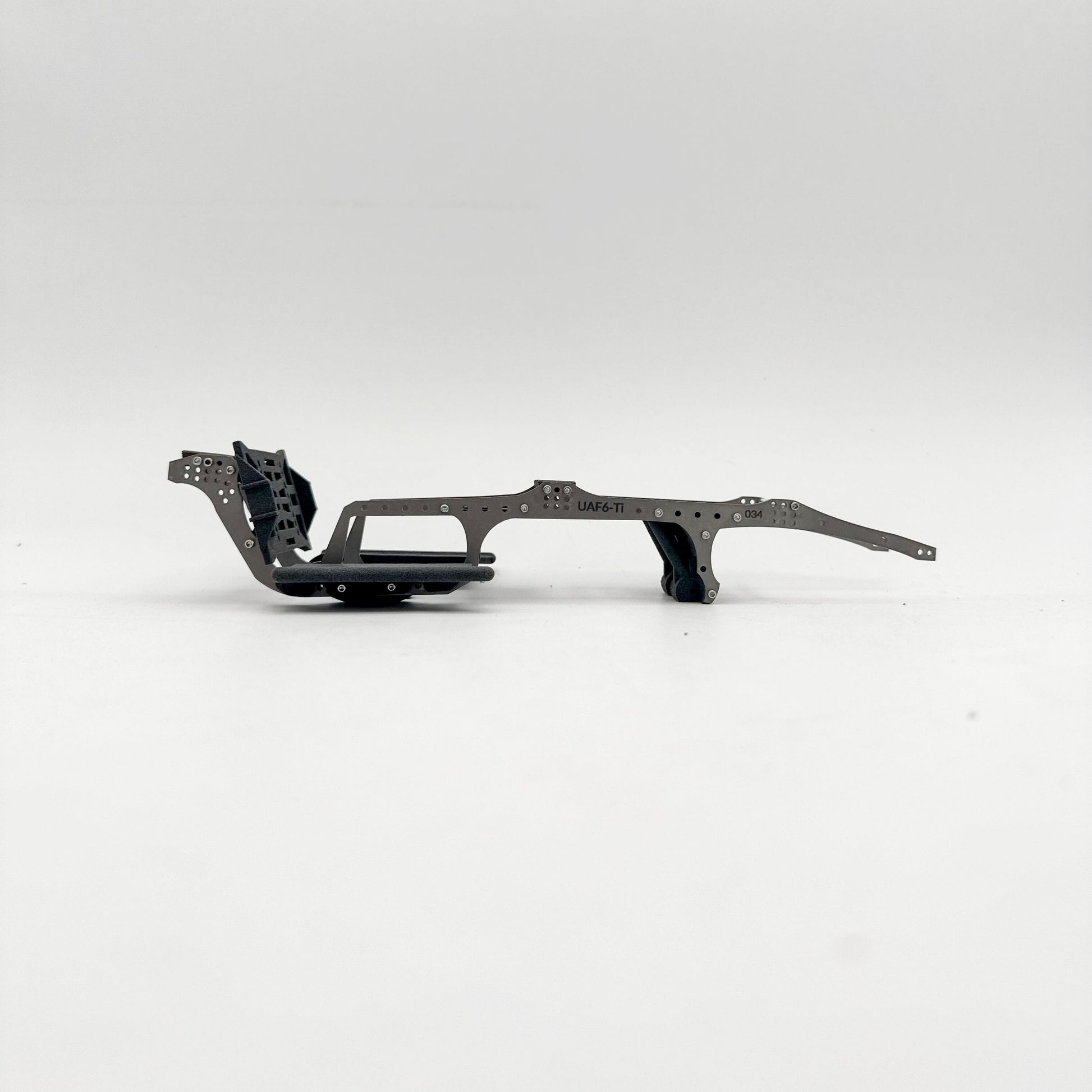

The chassis is built on the V3 generation of the Ugly Chassis, with most components being interchangeable. It features frame upright supports designed for strategically positioned electronics and battery trays. The forward, low-mounted battery tray aids in maintaining a forward weight bias. Additionally, its unique design accommodates over 100 motor mounting configurations and orientations, offering exceptional versatility.

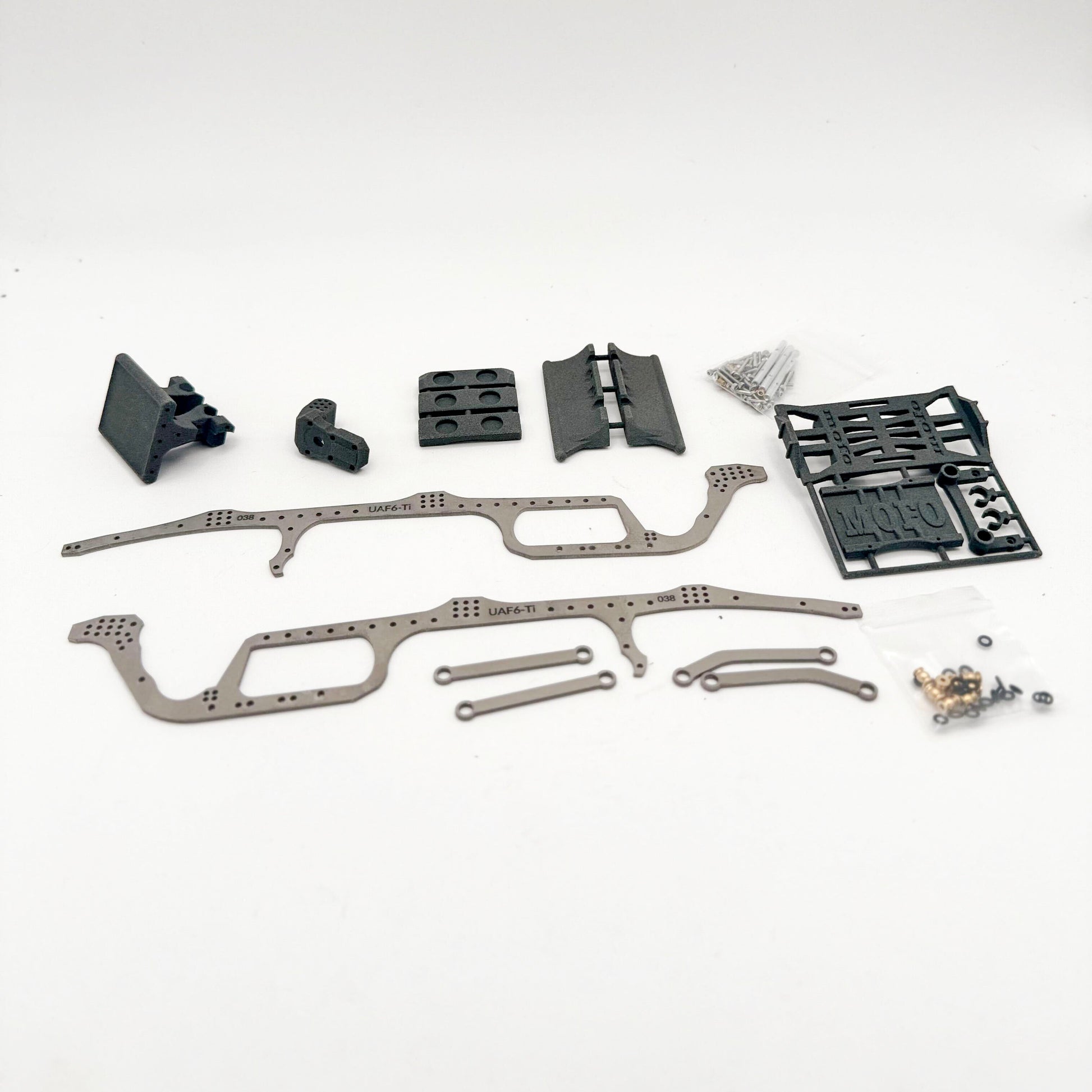

Includes:

• Titanium Chassis Frame Rails - Aluminum & Stainless Steel available in the future

• Forward Mounted Battery Tray.
• Multi-location Esc Tray
• 4x titanium rear 3rd axle suspension links
• Rear axle link attachment Block.
• Medium hardware pack with assortment of m1.4 screws, brass spacers, aluminum crossbraces, m1.4 nuts.
• Sidemounted slider boards.
• Servo light bracket for mounting led lights to the servo.
• Chassis mounted body mounts
  • Utilizes 8mm x 2mm magnets.

Recommended Setup:

• Electronics

  • Brushed: Mofo RC | TorqueBeastX 50
  • Brushless: Mofo RC | Shogun 2800kv

    • Needed: 12mm Forward Facing Motor Mount
    • Note: Will need to move battery tray to alternate location if running forward. Can also reverse transmission.
  • ESC: Mofo RC | Rockwolf Brushed/Brushless ESC
  • Servo: Mofo RC | Black Label 2.0, Servo Beast

• Chassis Components

  • Link Set
    • C10 Front/Rear: (50mm Lower, 39.5mm Upper),(58.5mm Lower, 51mm Upper)
    • Optional: +10mm Extended Rear Links
      • Necessary for oversized 1.0"-1.3" tires
  • Transmission: Mofo RC | Aluminum/Brass Bulletproof Transmission
  • Mofo RC | 6x6 Pass Through Worm Gear
  • 3x Driveshafts:
    • Front: 40mm-52mm Front,
    • Center/Rear: 2x 52mm-72mm

  • 1x Front Axle: Mofo RC X15s, Mofo RC 44s
  • 2x Rear Axles: Mofo RC X15s, Mofo RC 44s
  • 6x Shocks: ~39-52mm
  • 6x Wheels
  • 6x Tires

• Extras/Nice to Haves
  • CowRC Udder Butter Grease
  • Mofo RC 0.05" Hex Driver
  • Mofo RC 1.5mm Hex Driver
  • Mofo RC 4mm Nut Driver
  • Side Cutters
  • File/Sandpaper
  • Blue Threadlocker
  • CA Glue

Important Notes:

• Skid plate not included
• Plastic pieces are constructed out of SLS Nylon. Due to the small hole size and material, we recommend you lightly snug parts. Do not over tighten them as it is easy to do so with the small M1.4 screws included.
  • Super/CA glue can be used on the screw threads to as a thread locker in the plastic pieces.
  • Use side cutters and sand free from parts tree and smooth
• Utilizes any stock location SCX24 skid plate.
• This kit is highly customizable and some components can vary based on motor, wheel, and tire locations.
