High Steering Angle Universal Joint Axle shafts for the SCX24 / AX24

High Steering Angle Universal Joint Axle shafts for the SCX24 / AX24

Regular price $14.99 USD
Regular price Sale price $14.99 USD
Sale Sold out
Axle shaft size

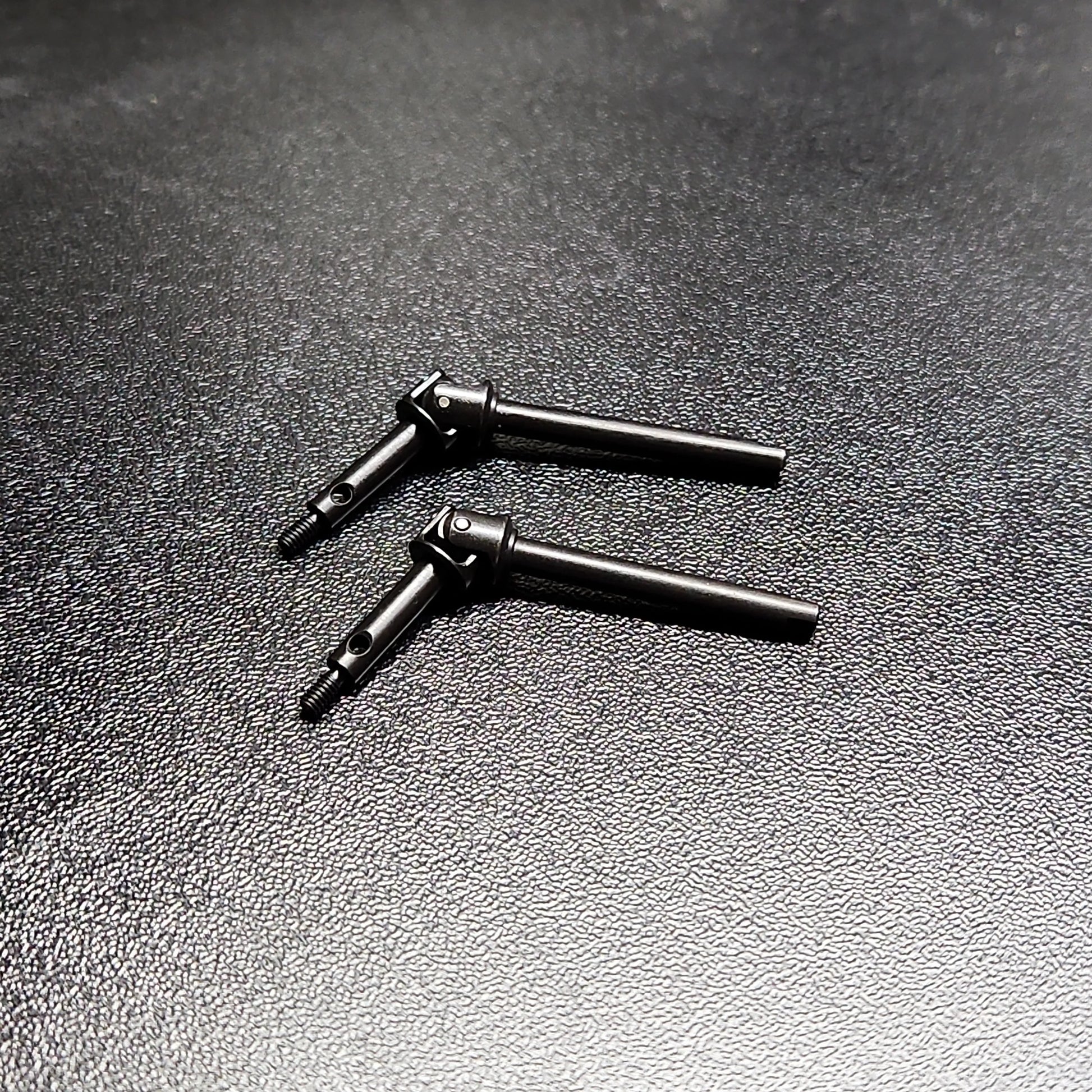

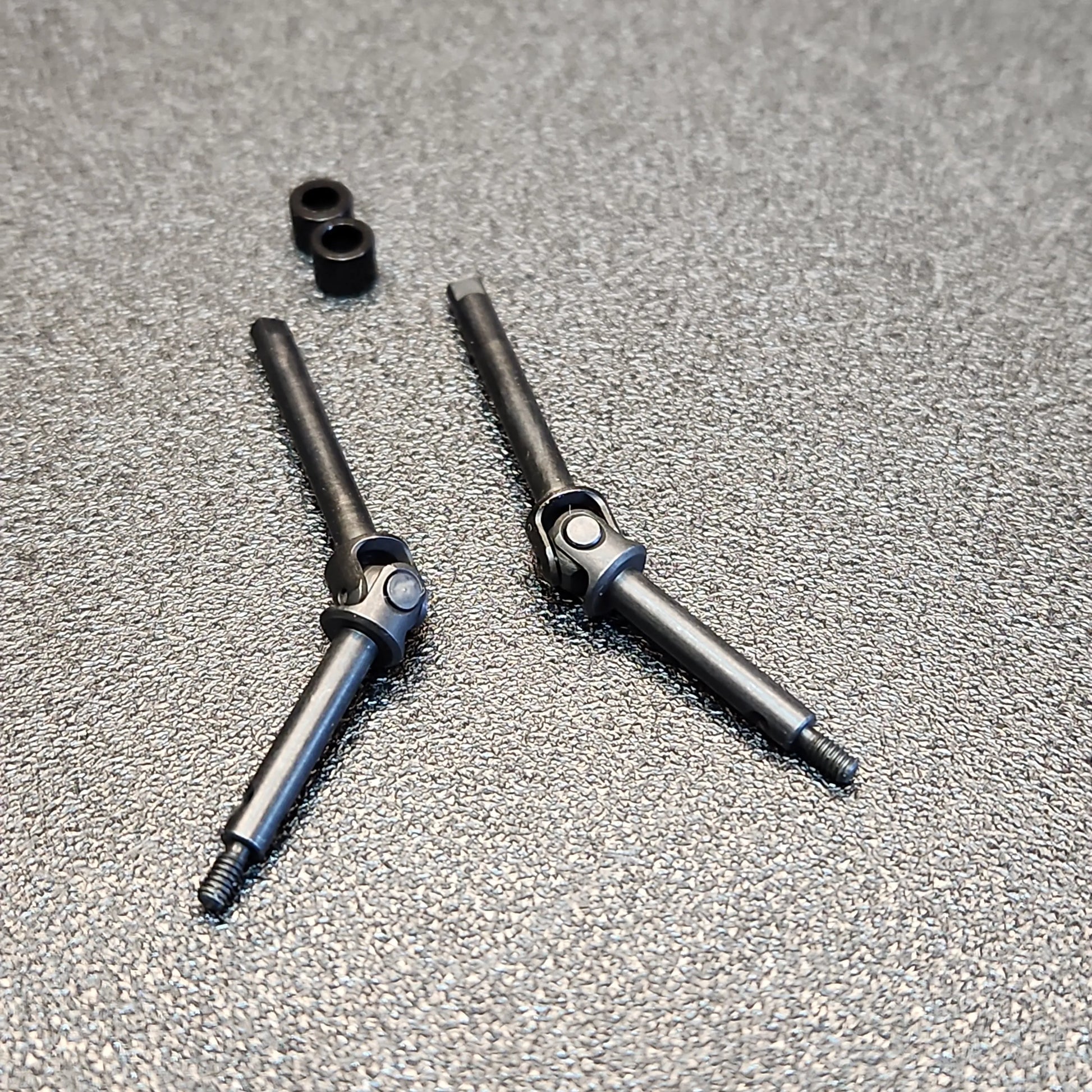

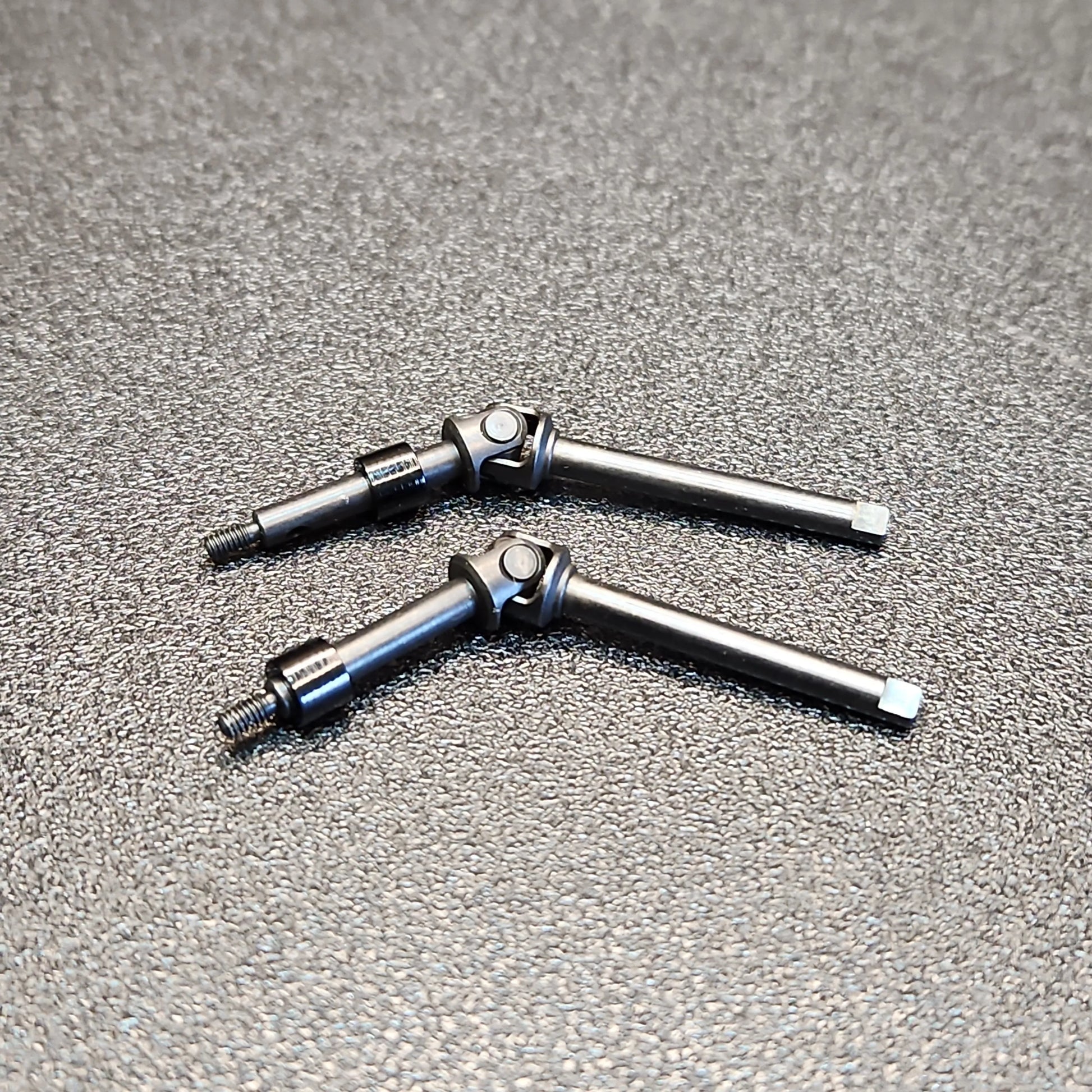

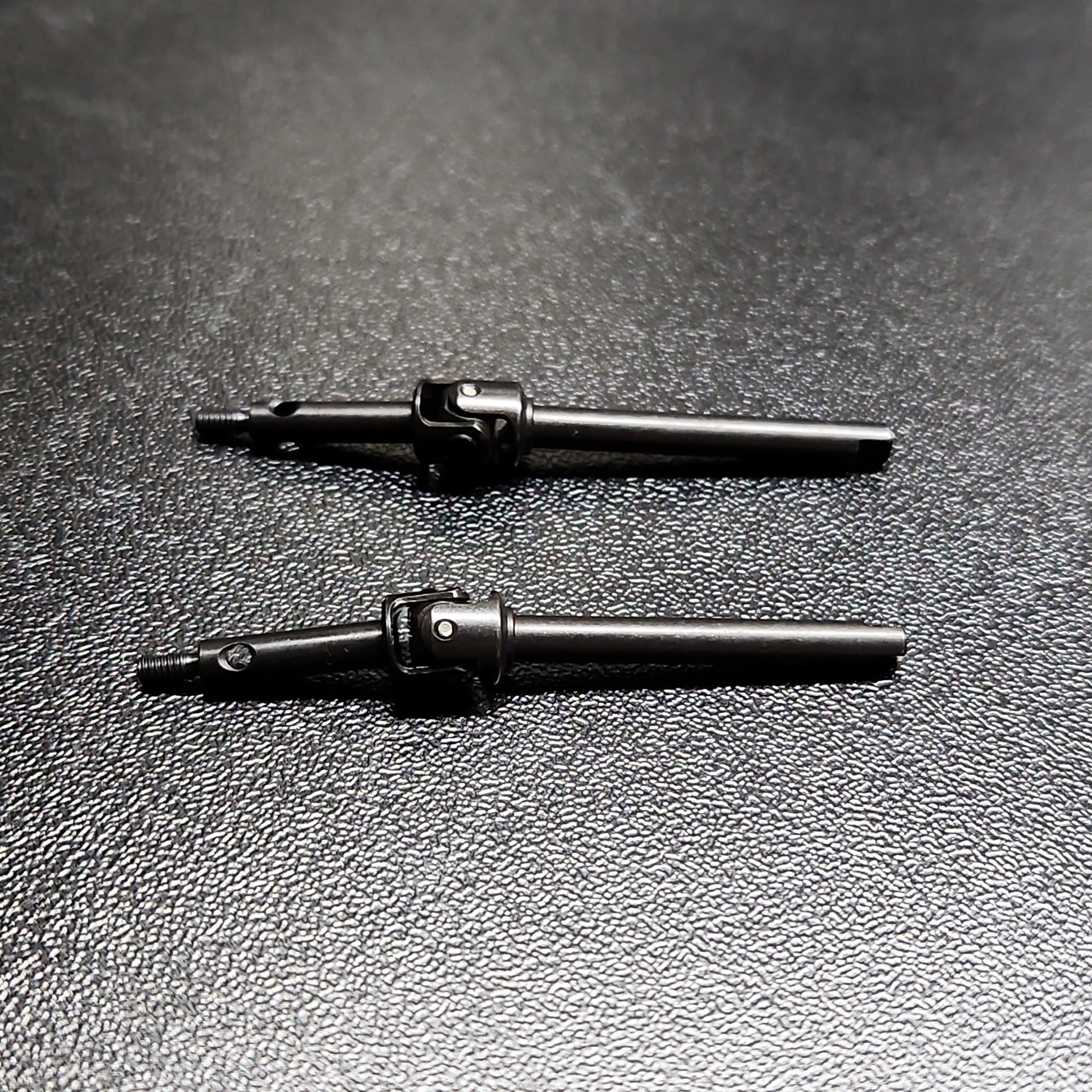

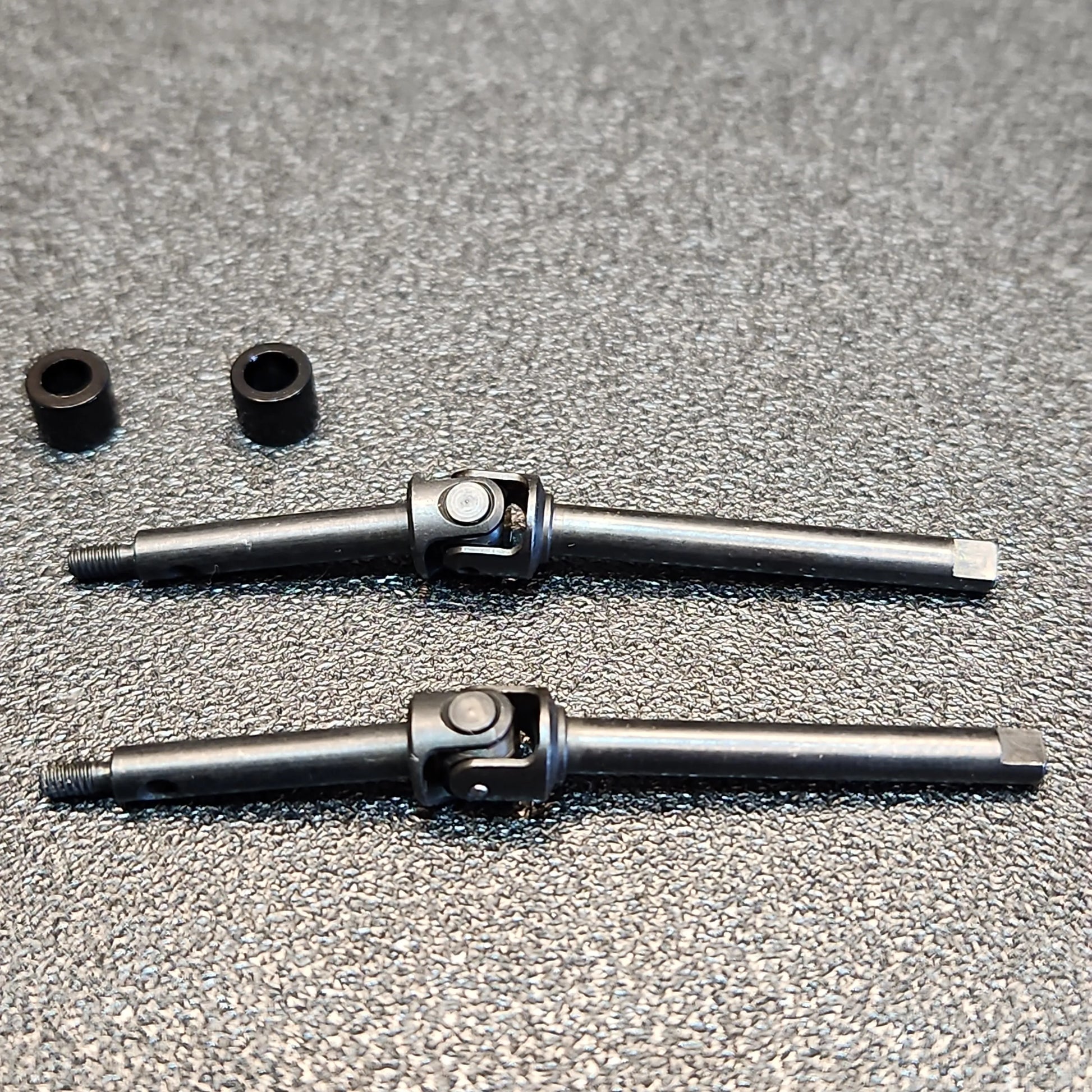

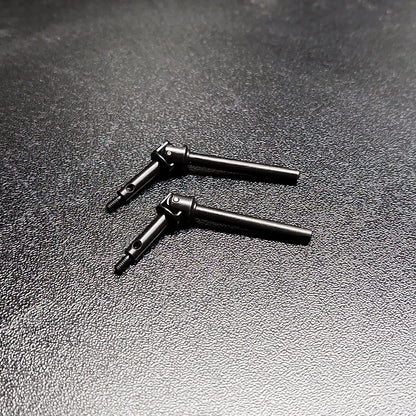

These are Universal Joint steering axle shafts for the scx24, There are 2 versions, Standard size is the same width as stock axles, The +4 will extend you wheels out +4mm per side, Both will offer superior turning angle. Made of hardened steel for extra strength. You can increase you steering angles hugely with these axle shafts. The rest of your steering parts will have to be able to turn further to get any benefit from these. Most of the aftermarket knuckles offer more steering angle than the stock steering knuckles.  If you want a set of the strongest rear axle shafts ever made for the scx24 to go with these +4mm front axles check out the Full girth rear axle shafts here

If you have binding once fully installed or if the knuckles will not go on all the way or are tight. Remove the outer axle shaft bearing from the axle housing on both sides. This will also allow for an even greater steering angle. Check out this install video click here

IMPORTANT ----  After installation of the axle shafts you need to set your end points or steering D/r on the remote. If you turn beyond the abillity of the axle shaft it will lock up and snap.  once installed turn on your rig, flip it upside down and set your throttle so the tires are spinning at a slow medium pace. Turn your wheels with the steering on your remote slowly back and forth to full lock and watch for binding, When the binding occurs set the steering just before that point and that is where your steering will need to stay. You may be able to go full lock both directions with no binding, But if you modify your knuckles or other parts for extra turning angle this step is crucial. You may also be able to leave out the outer axle tube bearings from each side of the axle housing to gain smoother operation. BE CAREFUL WHEN INSTALLING THE SCREWS AND MAKE SURE THEY DO NOT HI THE JOINTS.
