Mofo RC | The Badiator LCG Chassis Kit and Body Bundle (Axial® SCX24™)
Mofo RC | The Badiator LCG Chassis Kit and Body Bundle (Axial® SCX24™)
Regular price
$159.99 USD
Regular price
$184.99 USD
Sale price
$159.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

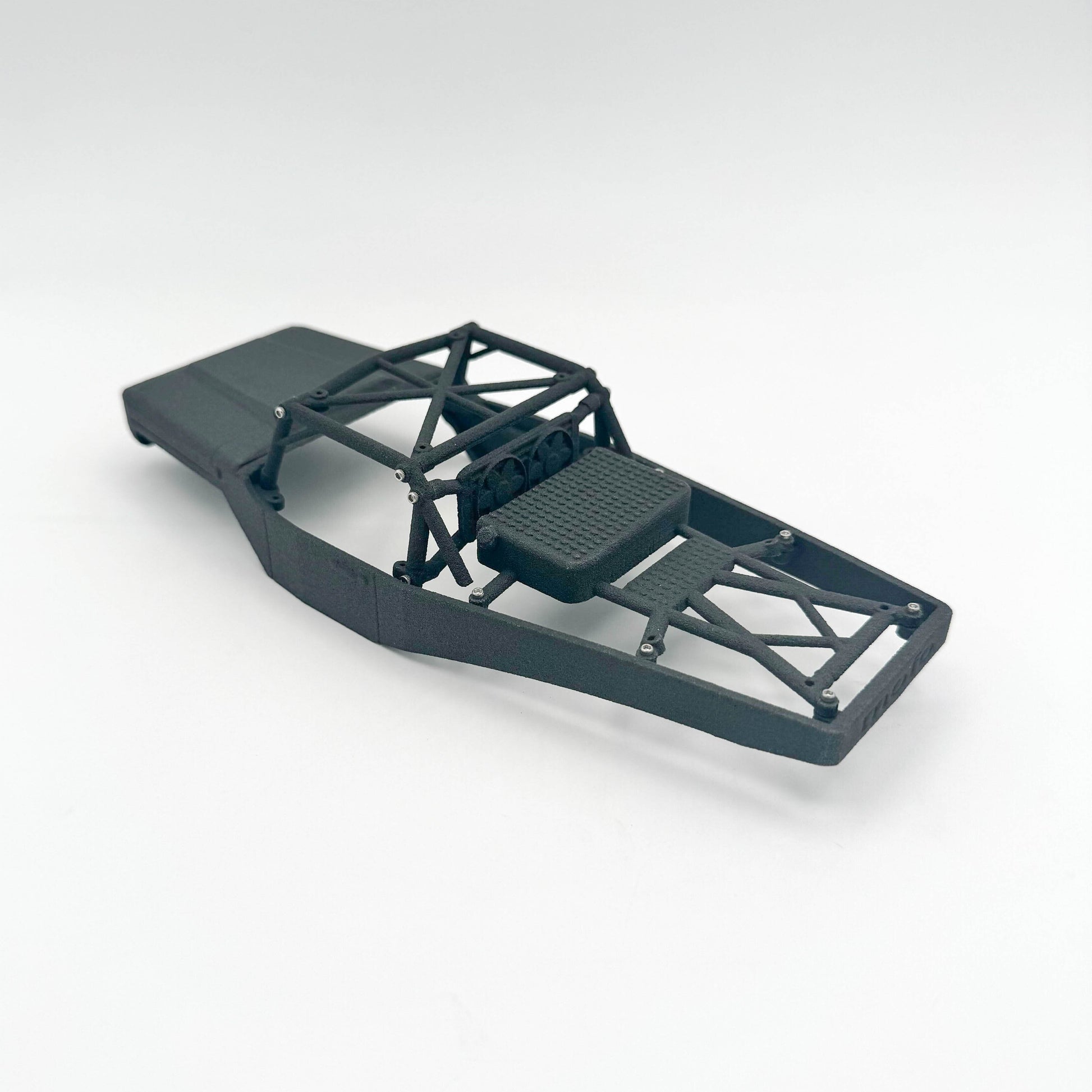

Mofo RC | The Badiator LCG Chassis Kit & Body Bundle
Upgrade your stock SCX24 Gladiator/Power Wagon length kit into a high-performing crawler or build an LCG setup from the chassis up. All the stock components from body to hinge mounts will transfer to this chassis. The Badiator comes on a unique kit plate that can be hung up for display after.
This bundle includes:
- The Badiator Chassis Kit

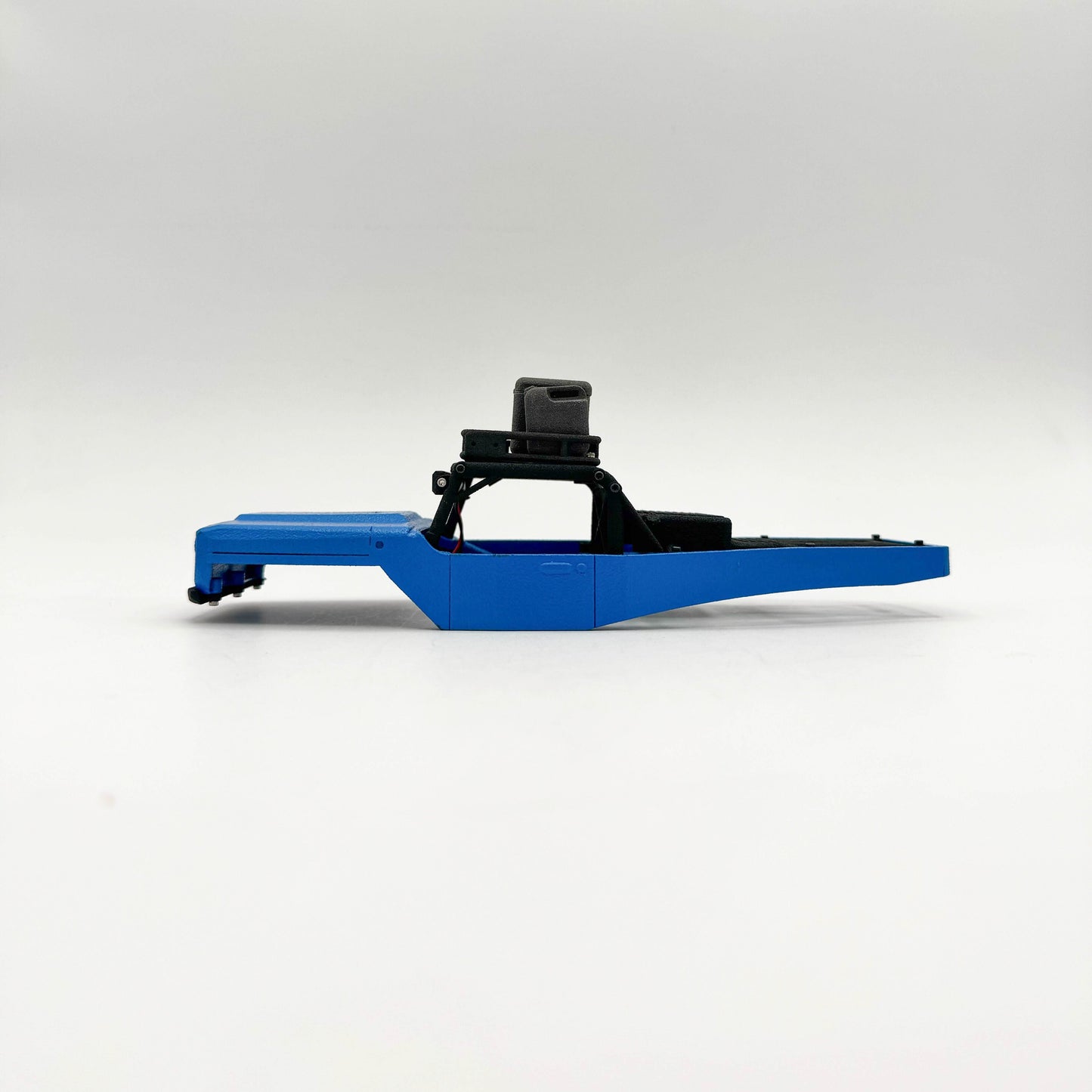

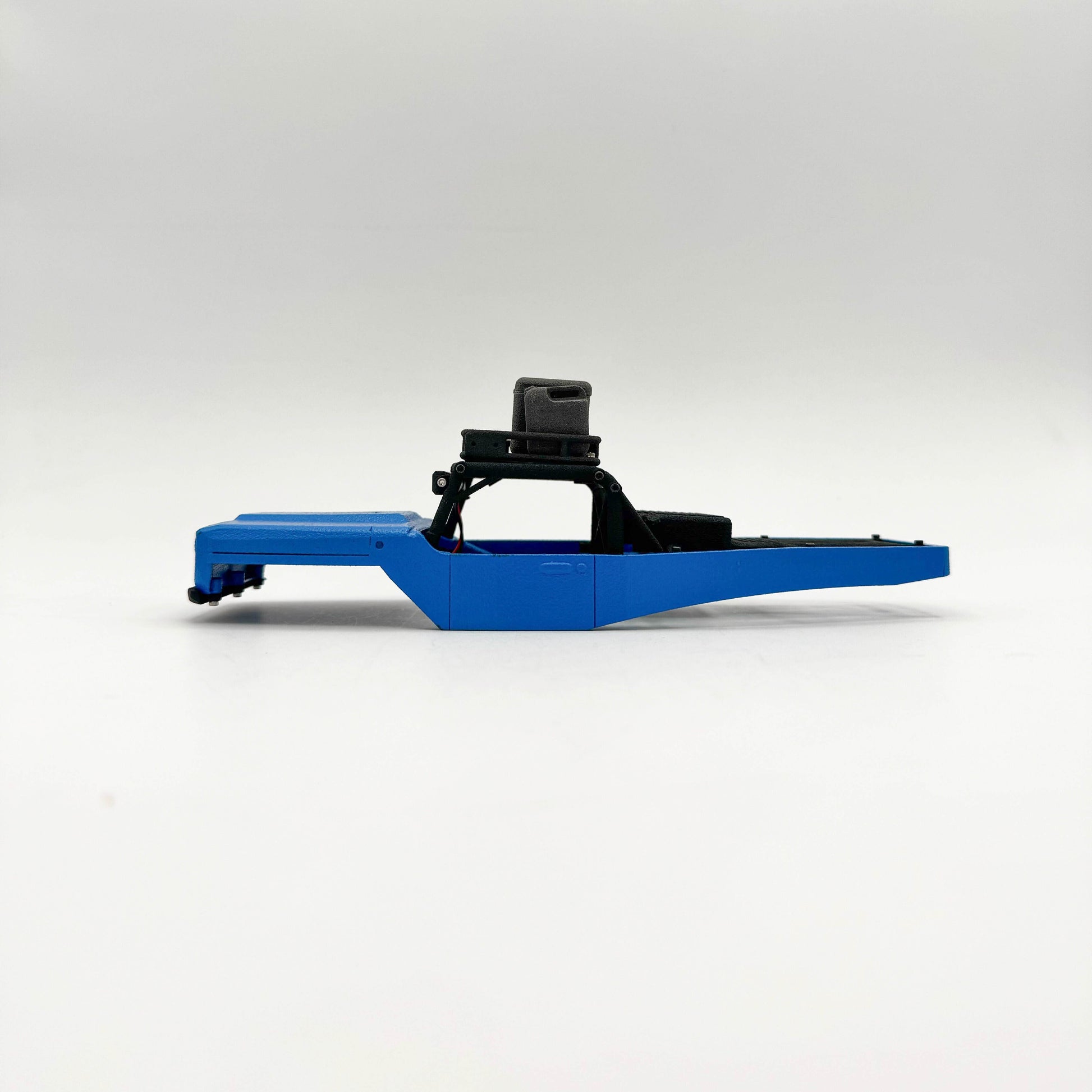

- The Badiator Body Kit

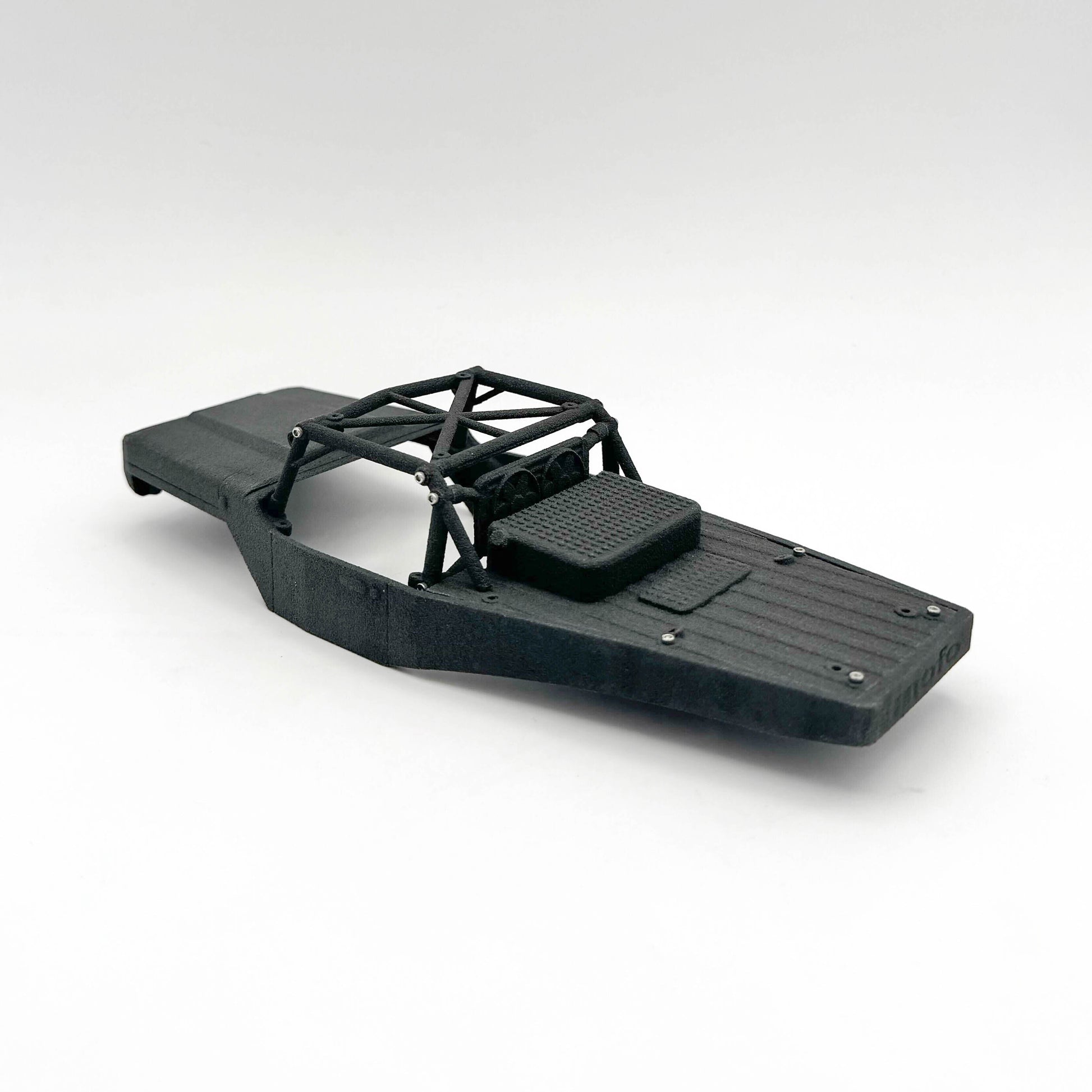

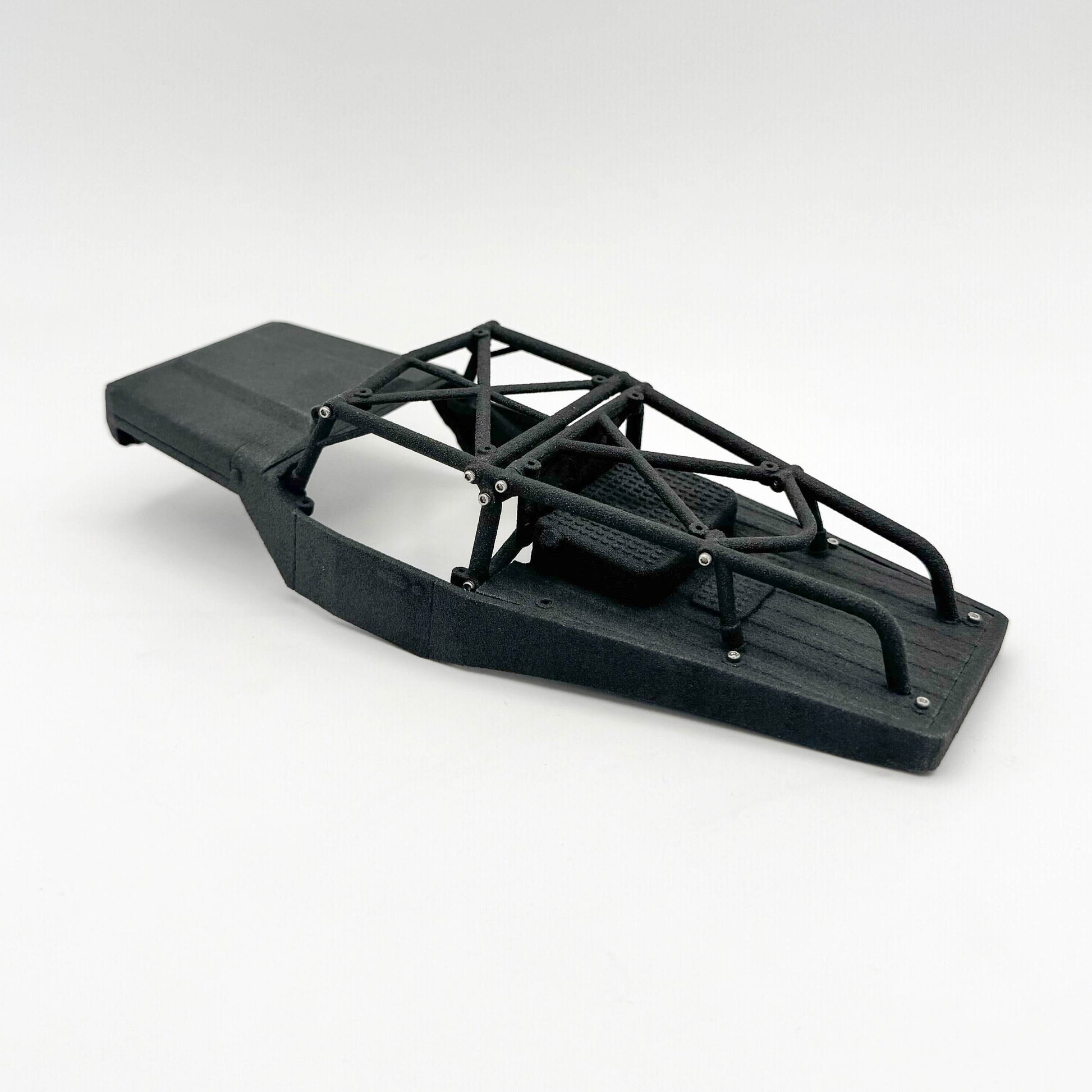

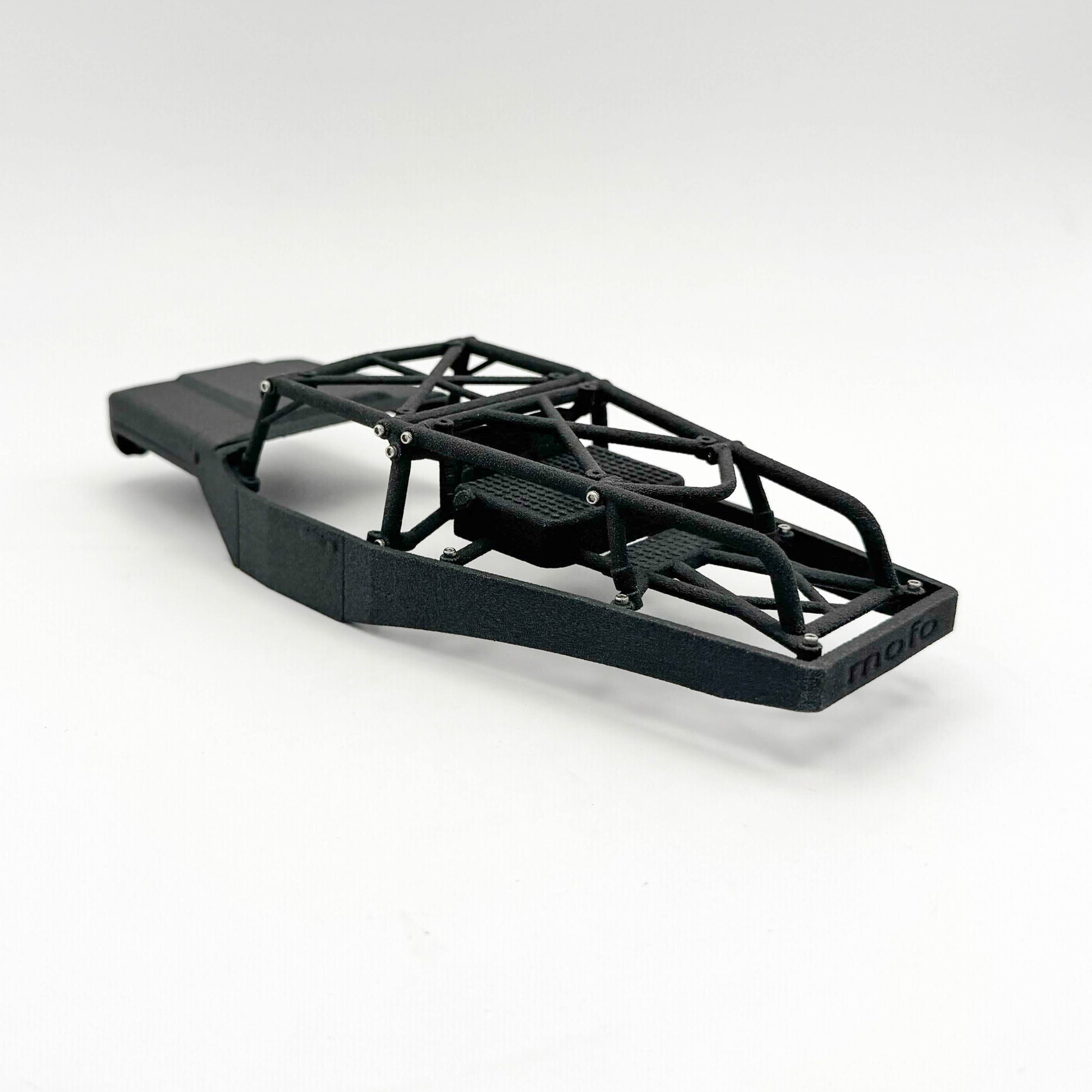

- Choice of Bed and Cage Style

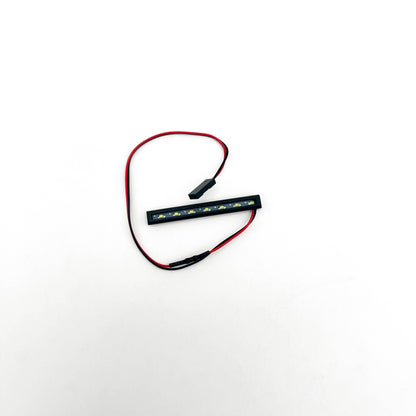

- Lightbar

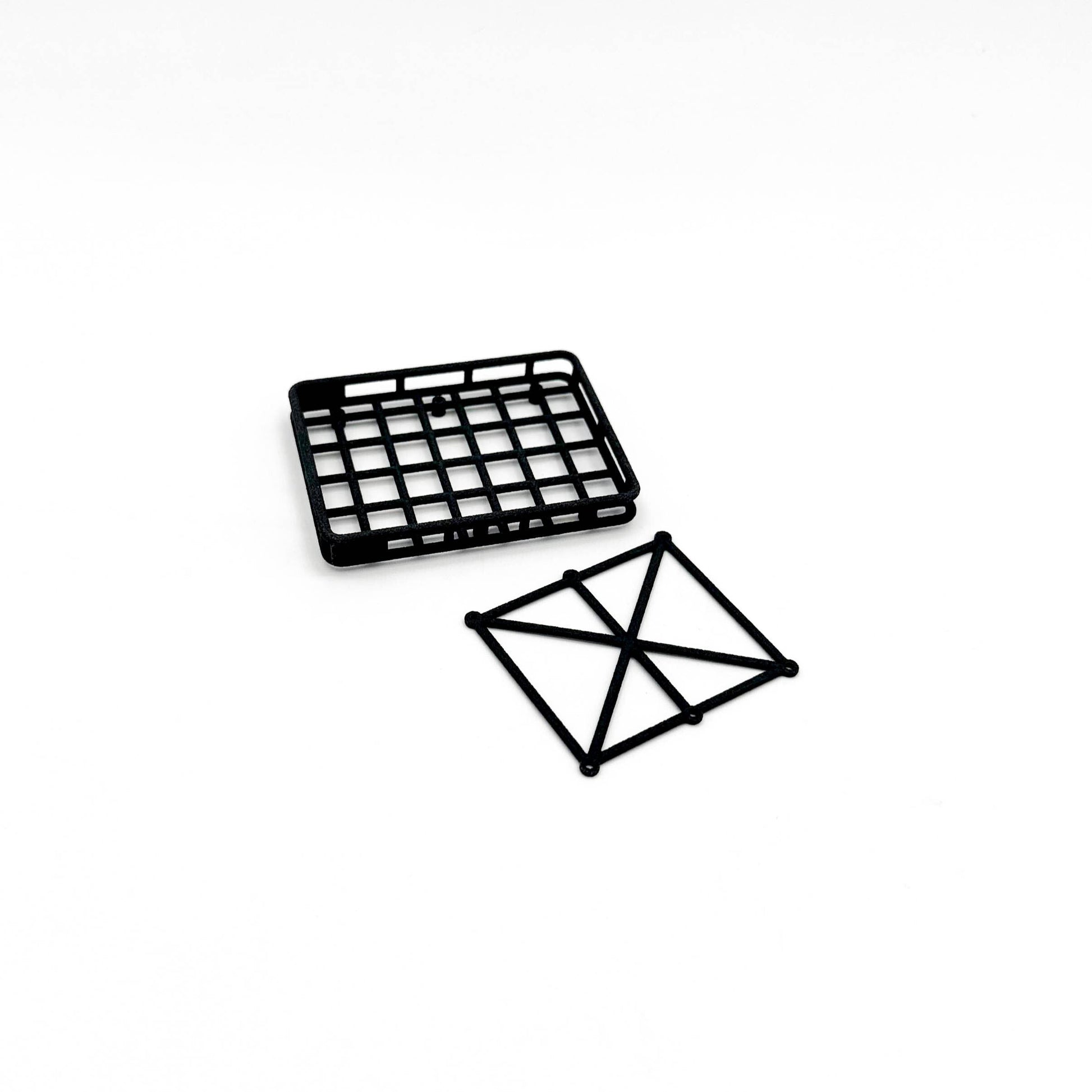

- Small Roof Rack
Up to $185 value!
Specs:
- Made in Texas
- Low-Center-of-Gravity
- Extra Shock Mount Positions
- Multiple Upper Link Mount Positions
- Stock-Location Bumper & Hinge Mounting Locations
- Low Center of Gravity
- Custom High Clearance Bent Links
- Skid Angle: 7.5*
- Weight: ~6 oz/~170g
Includes:
- Stainless Steel Rails
- Custom Stainless Steel Links w/Brass Link Balls
- Side Slider Boards
- Integrated Front Battery Tray/Body Mount
- Body mount accepts stock posts with/without Velcro or 8x2mm magnet options
- Rear ESC/Electronics Mount
- Hardware Pack
- Limit Strap Mount
- Mofo Keychain
Some Recommended Setups:
-
Electronics
- Brushed: Mofo RC | NeoBeast 30
- Note: A 50 sized motor will not fit
- Brushless: Mofo RC | NanoBeast w/ Mod.3 11t Pinion
- ESC: Mofo RC | Rockwolf Brushed/Brushless ESC
- Servo: Mofo RC | Black Label 2.0, Servo Beast
- Brushed: Mofo RC | NeoBeast 30
-
Chassis Components
- Transmission: Mofo RC | Aluminum/Brass Bulletproof Transmission
-
Driveshafts:
- XL: 40mm-52mm Front, 65mm-95mm Rear
- Axles: Mofo RC X15s, Mofo RC 44s
- Shocks: ~39-52mm
- Skid Plate: Aluminum or Brass
-
Extras/Nice to Haves
- CowRC Udder Butter Grease
- Mofo RC 0.05" Hex Driver
- Mofo RC 1.5mm Hex Driver
- Mofo RC 4mm Nut Driver
- Side Cutters
- File/Sandpaper
- Blue Threadlocker
- CA Glue
Important Notes:
- Plastic pieces are constructed out of SLS Nylon 12. Due to the small hole size and material, we recommend you lightly snug parts. Do not over tighten them as it is easy to do so with the small M1.4 screws included.
- Super/CA glue can be used on the screw threads to as a thread locker in the plastic pieces.
- Use side cutters and sand free from parts tree and smooth
- Utilizes any stock location SCX24 skid plate if building from the ground-up.
- 50 sized brushed motors will not fit
- Electronics in photos are not included.
