Mofo RC | Cyber Snake Comp Chassis Kit (For Axial® SCX30™) - Made In Texas

With a 15 degree skid angle and a modular length adjustment, the Cyber Snake is the best comp chassis to take your Axial® SCX30™ to the next level. Building a full comp chassis? Buy with our +6mm lower links set for that extra length you always wanted. Want to run a stock body? No problem, you can use stock length links as well.

This is the next evolution in the Mofo Chassis System for the Axial® SCX30™ that we are calling the Mofo Chassis System (MCS) 2.0. After extensive testing, we improved upon the modularity of all our chassis kits by integrating the shock holes into the front and rear braces. By doing this, you can now just swap the chassis braces or rails vs only being able to swap the rails. Want the extra lift of our Modzilla, but more skid angle, yyou can simply add the Modzilla chassis braces to convert. Competition rules require stock skid angle? Buy the Pocket Snake rails (Available Soon). We think this will provide the most customization possible to fit every builder's needs. Brace improvements for better 4WS clearance coming soon.

Features

• 15* Skid Angle
• Captured and swappable upper link mount
  • Divorces the upper links from the skid plate providing additional anti-squat and clearance over the skid plate mounting.
  • Additional anti-squat will provide improved climbing on steep hills due to the less amount of squatting of the rear axle. When the rear axle squats, your front end will lift up, which this setup improves upon over stock.
• 0 or +6mm Longer Link Option

  • Compatible with stock-sized lower links or Mofo RC +6mm lower link set.
  • Utilizes stock length upper links.
• Updated front shock holes provides more holes on the top row vs bottom row for improved adjustment.
• MCS 2.0 Modularity

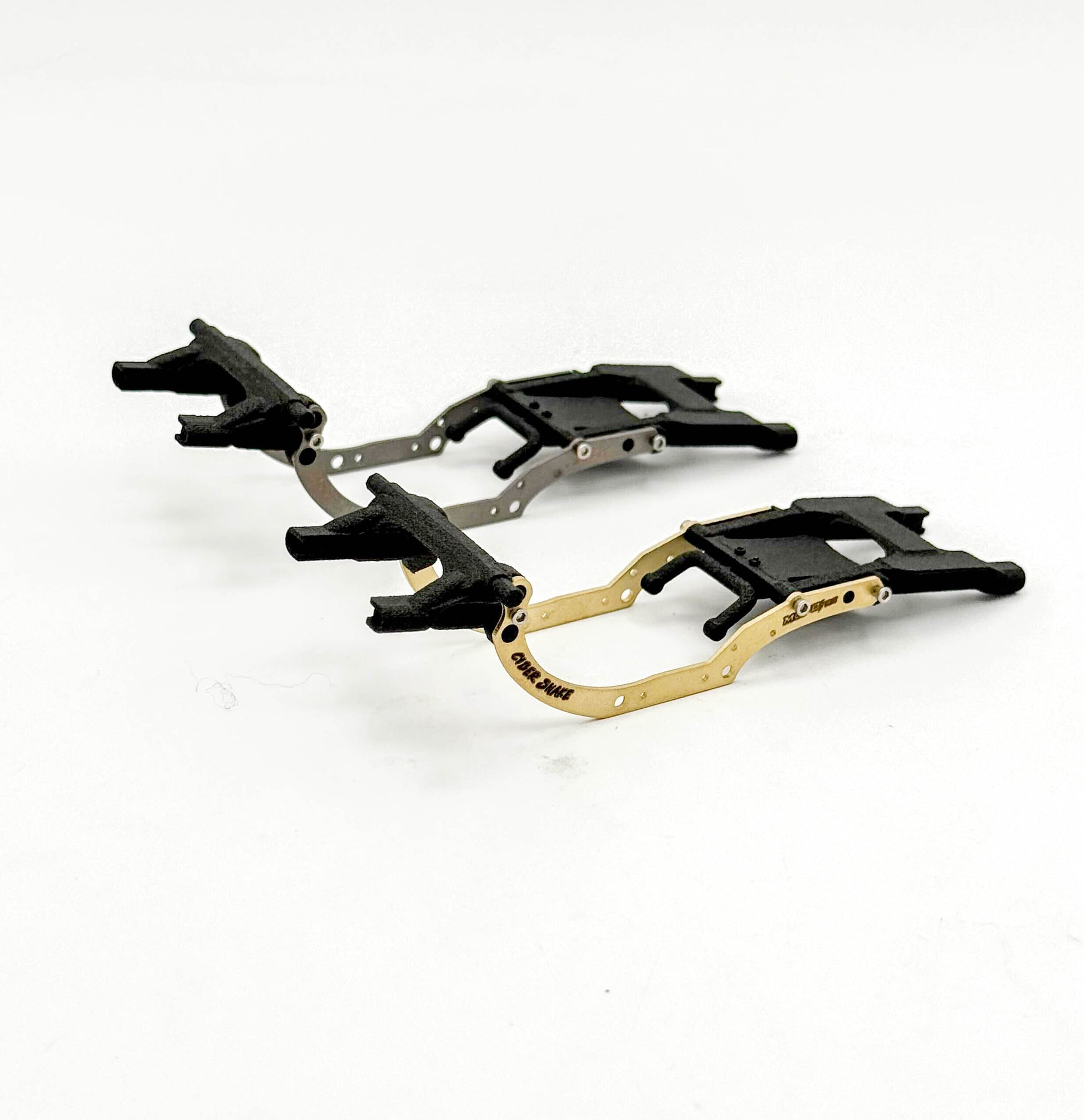

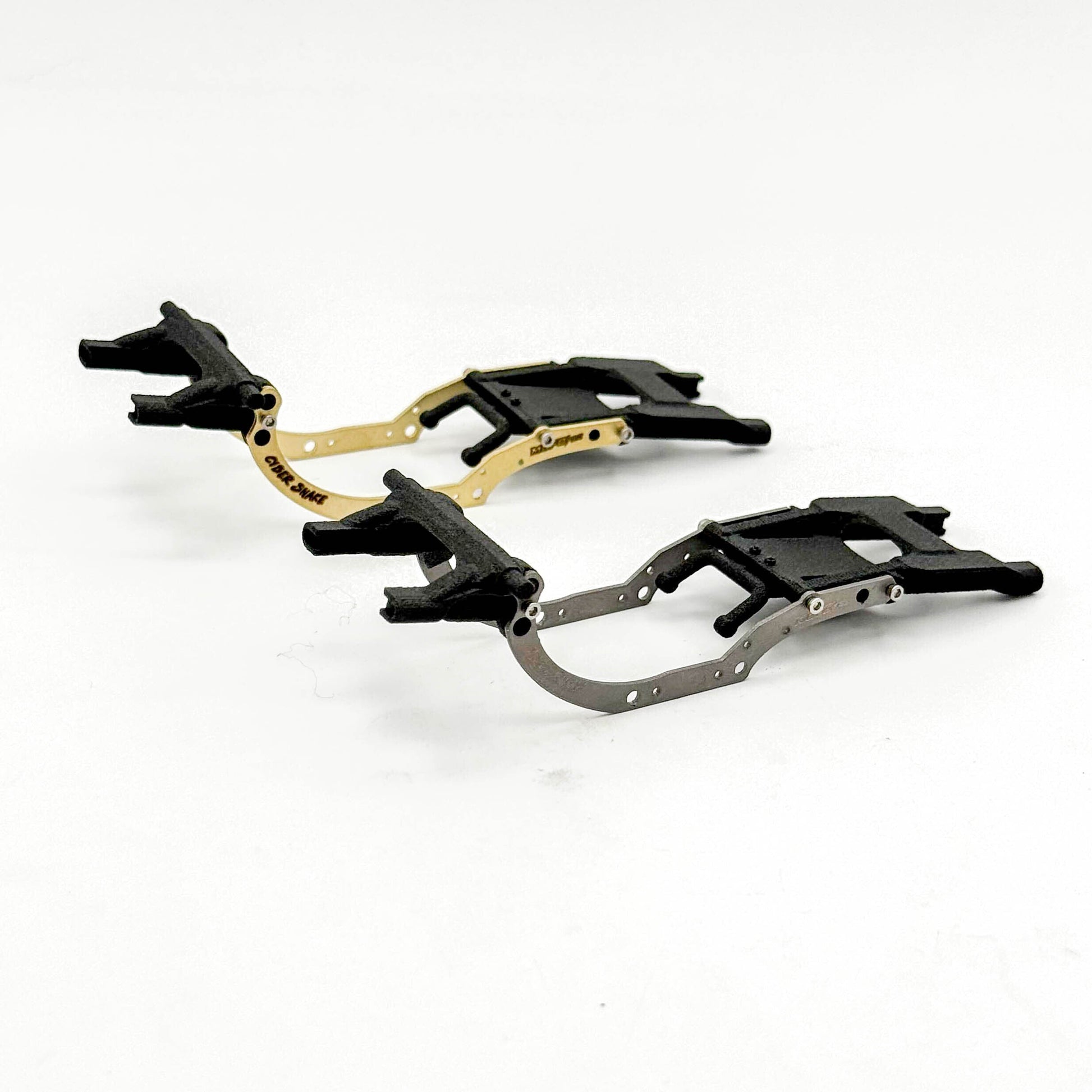

• Multiple material options
• Compatible with stock driveshafts
• Compatible with all stock chassis components and bodies. Trimming may be necessary when using extended links.

Weight:

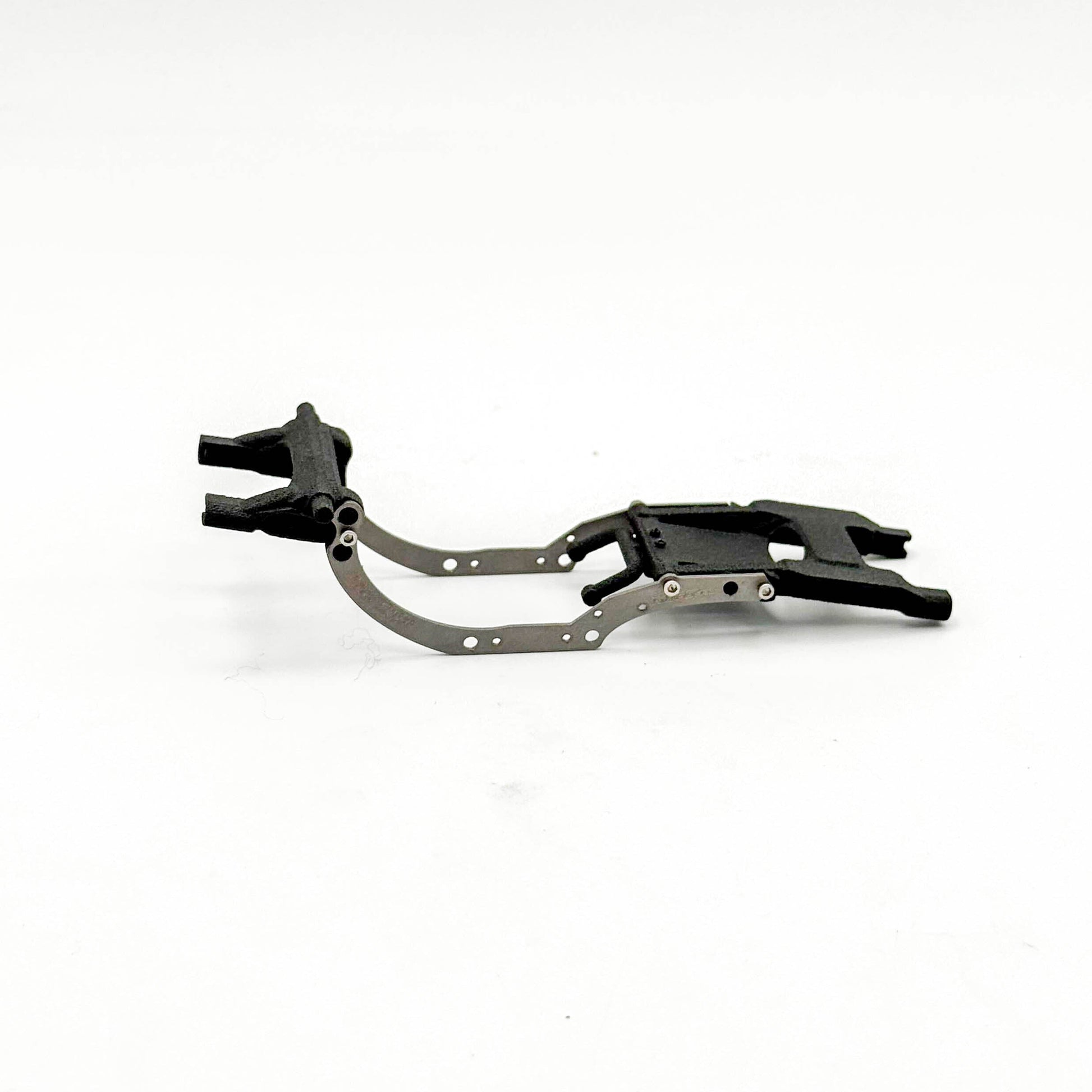

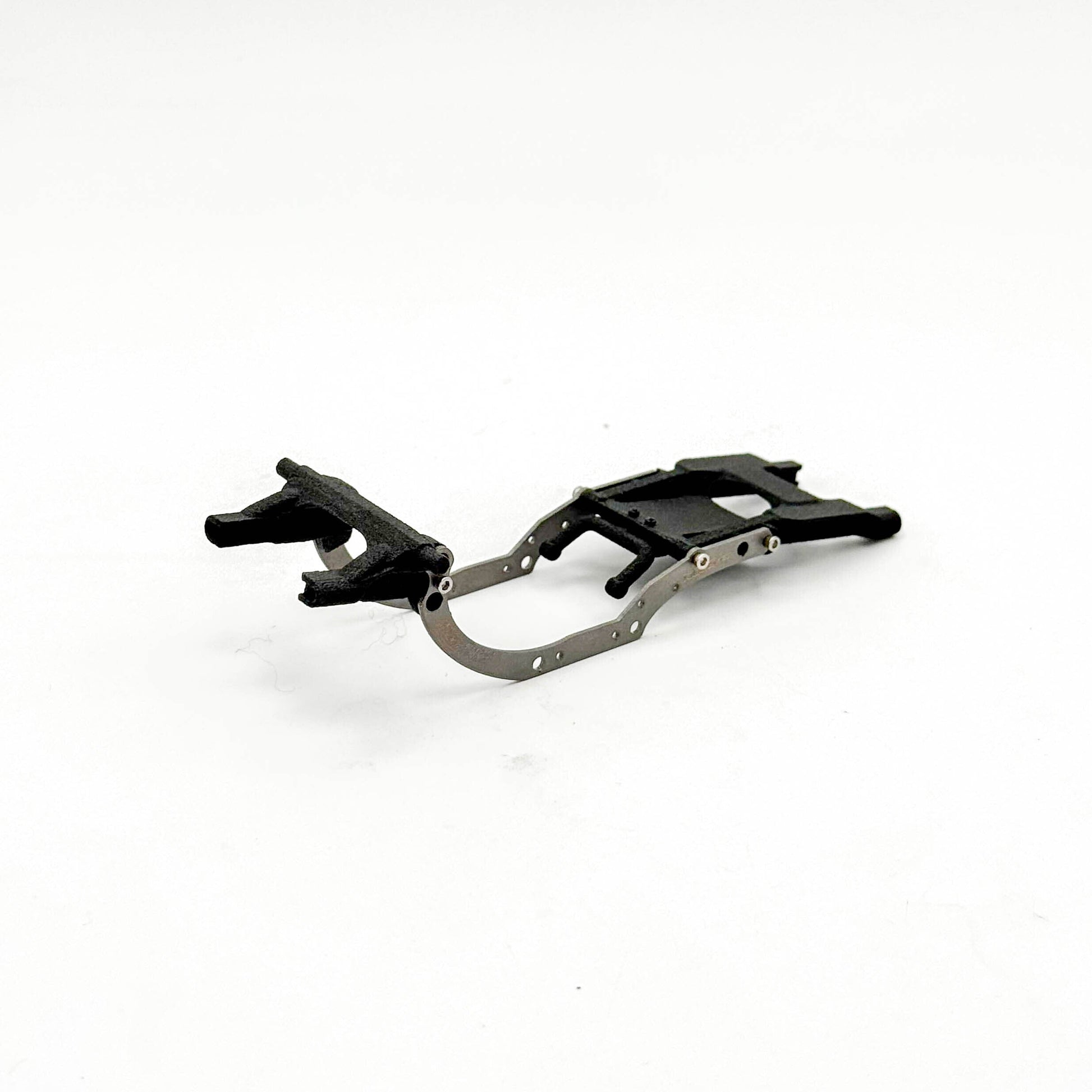

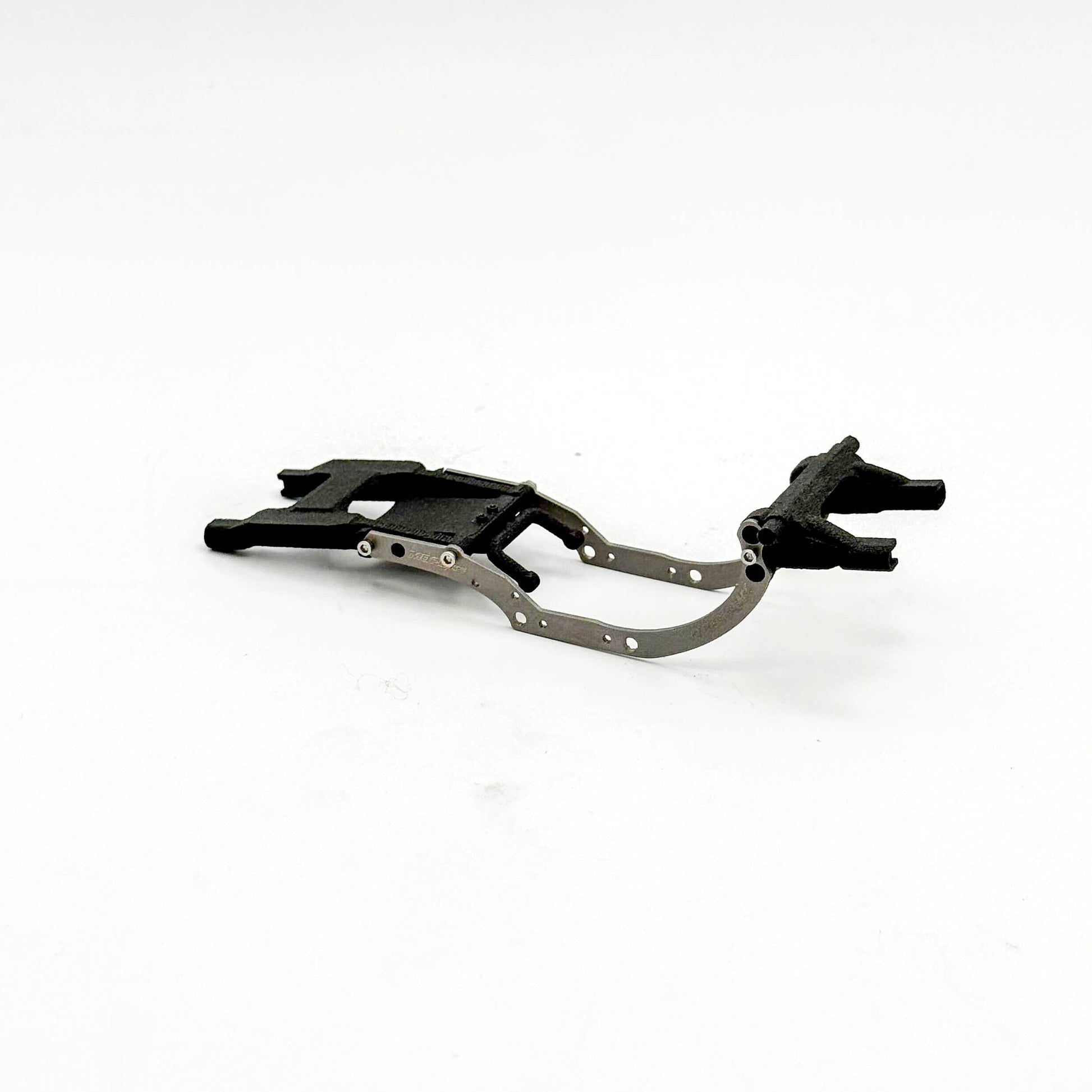

• Titanium- 8g (3g heavier than stock)

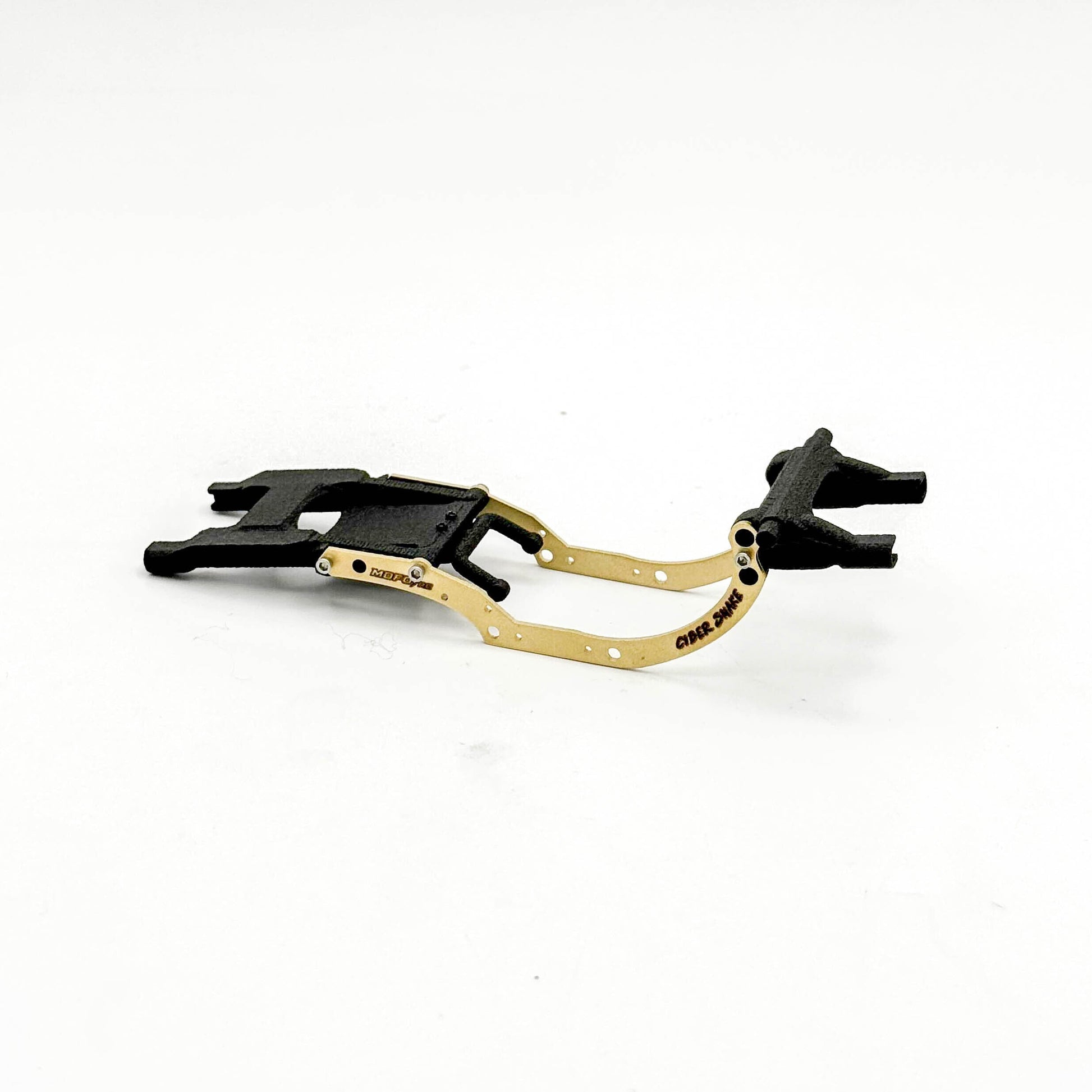

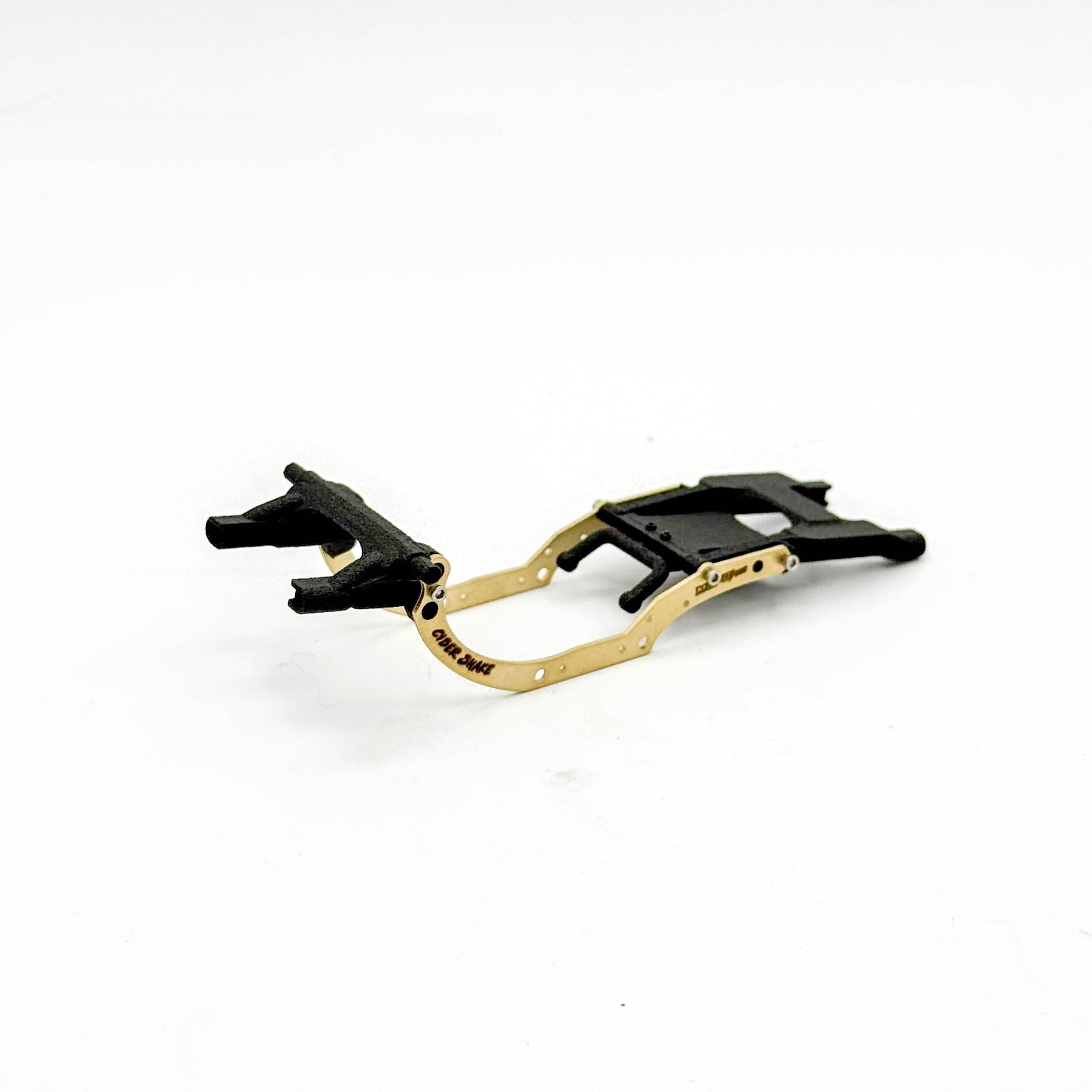

• Brass- 11g (5g heaver than stock)

RTR Compatibility: Bronco, JLU, K10 all okay.  Tacoma rear links are longer than +6 so a chassis only is best. The front links are the same as the CJ7, but the stock rear links are shorter. A CJ7 chassis is shorter so if you wish to use a body, this will not be compatible as the chassis is longer.

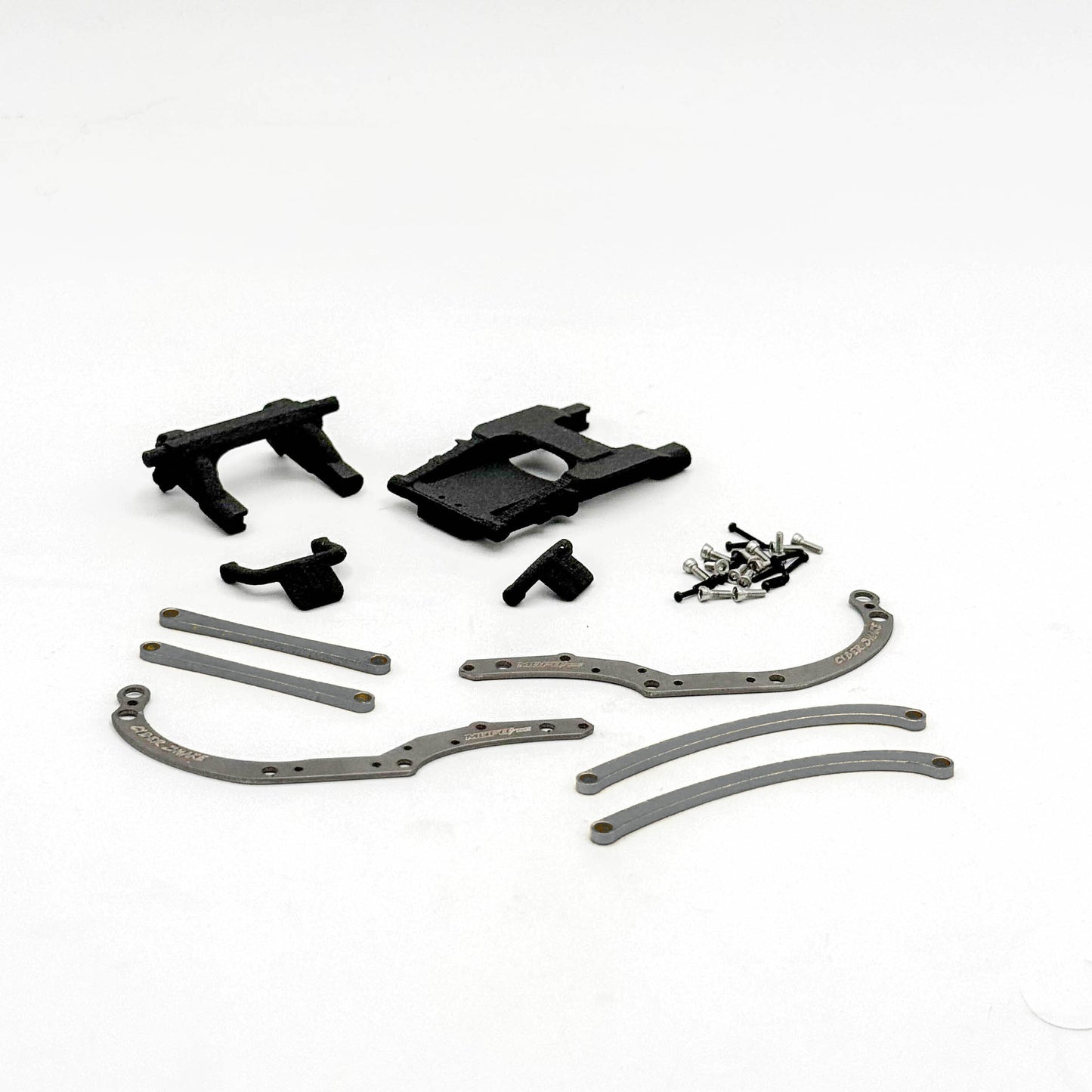

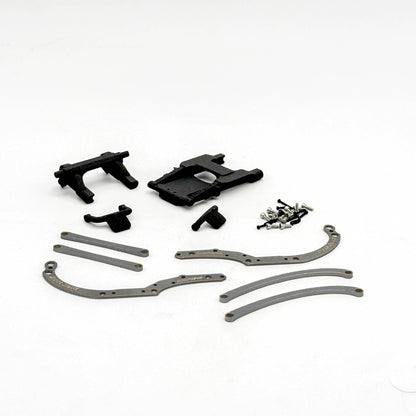

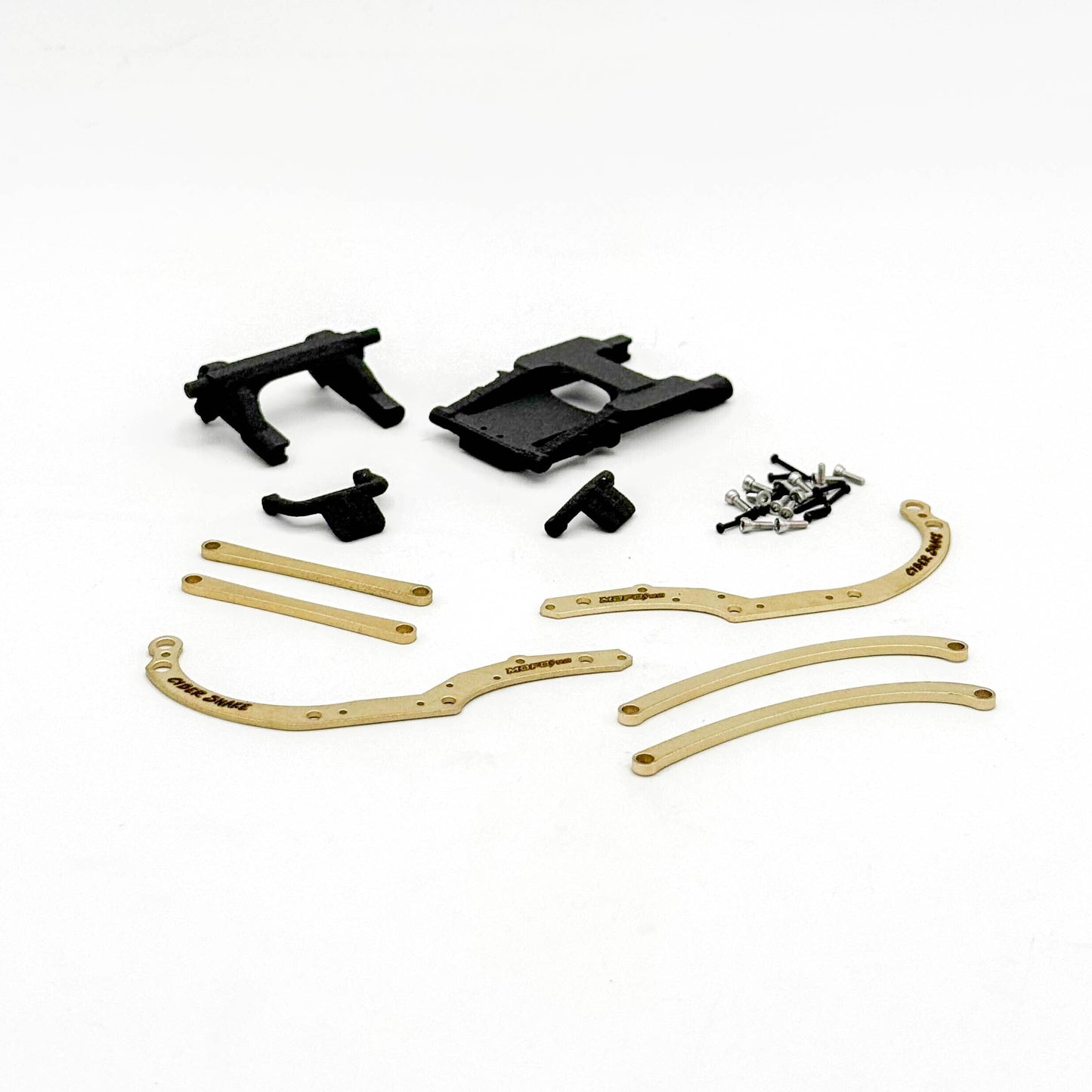

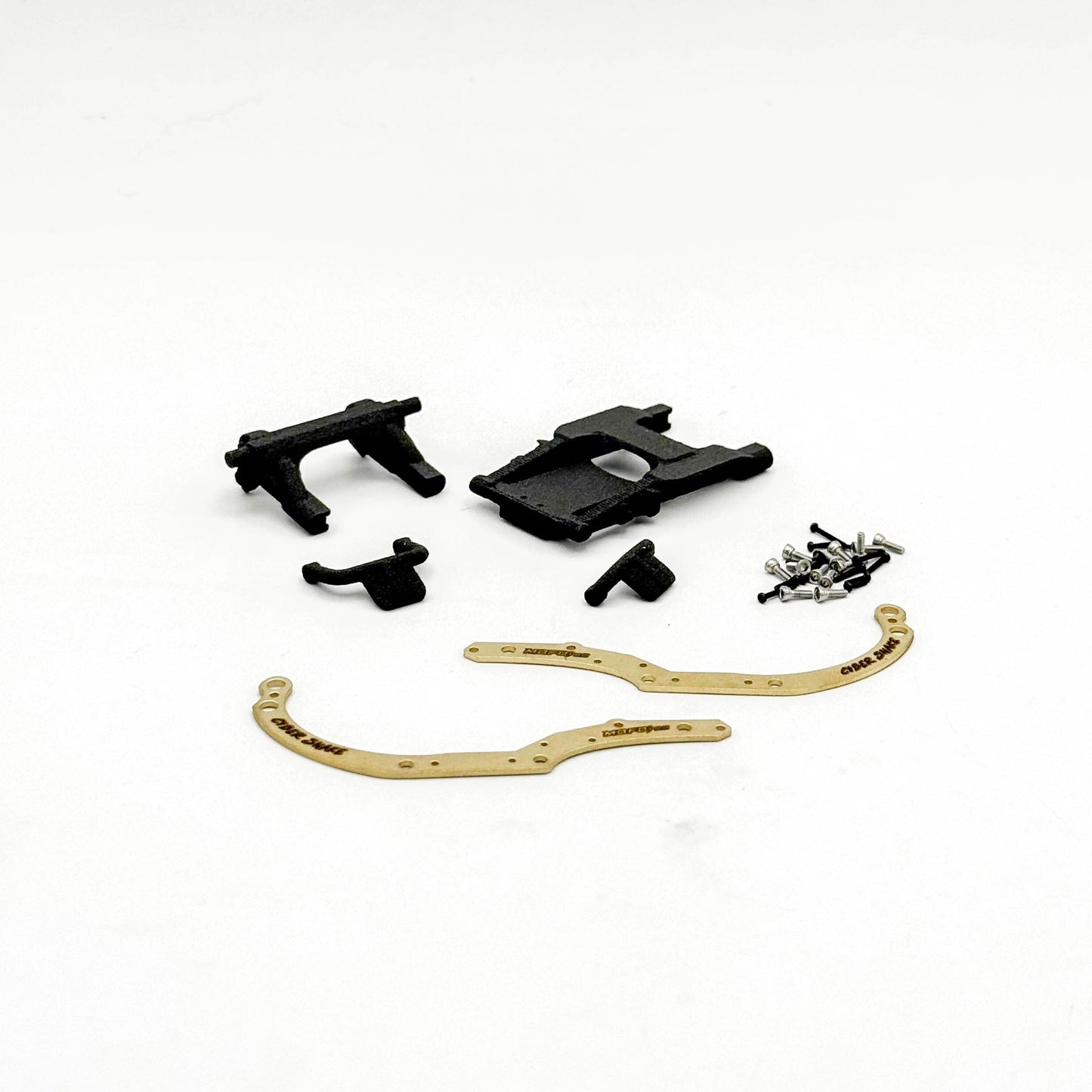

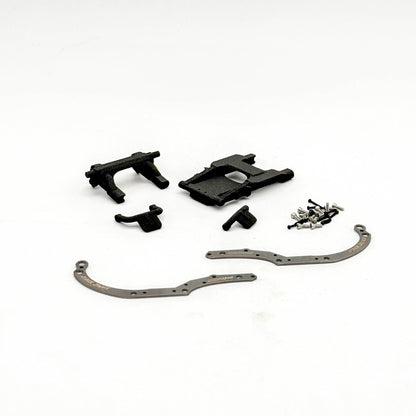

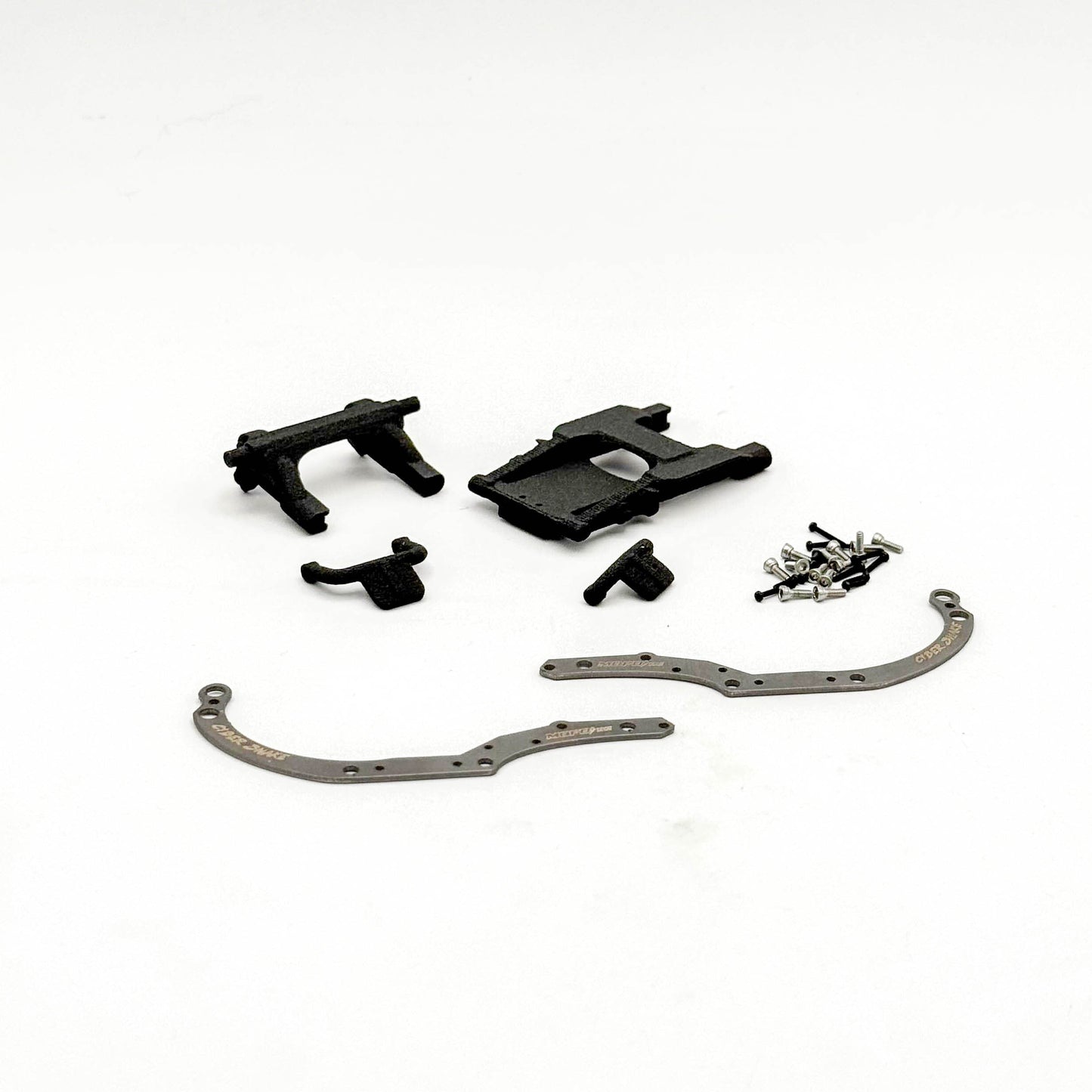

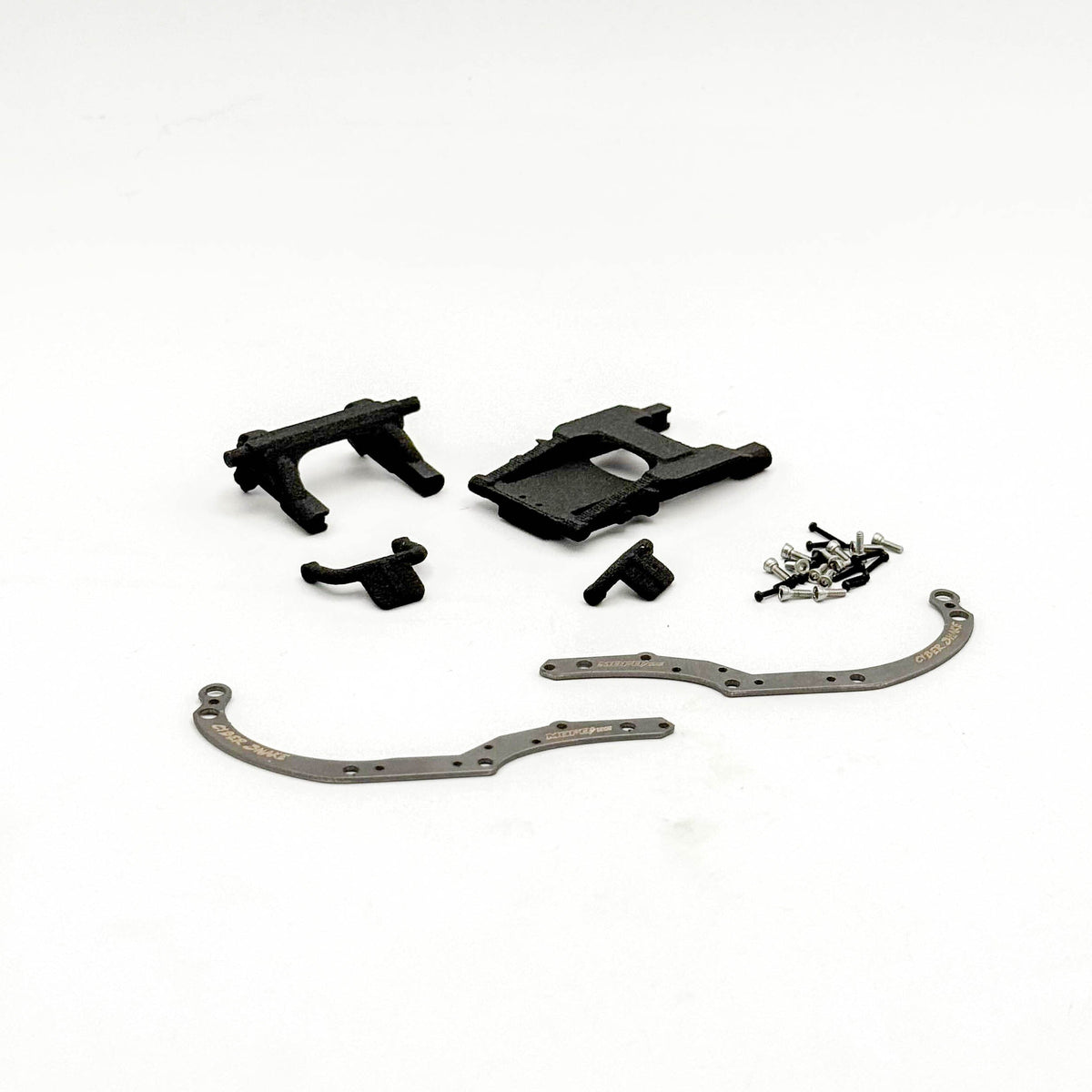

Includes

• 1x Front 2.0 Brace
• 1x Rear 2.0 Brace with swappable captured upper link mounts
• 1x Stock length captured upper link mount (long arms)
• 1x +6mm length captured upper link mount (short arms)
• 2x Cyber Snake Frame rails
• M1 & M1.4 Hardware
• Optional: +6mm Front/Rear Lower Link Set in matching material.
  • 2x Front Lower Links
  • 2x +6mm Rear Lower Links
  • O-rings for additional link support if desired
  • Links utilize stock link balls, not included.

Replacement Parts

Note: We've done our best to try various link combinations and there are plenty of clearances for different link setups to the best of our knowledge.
