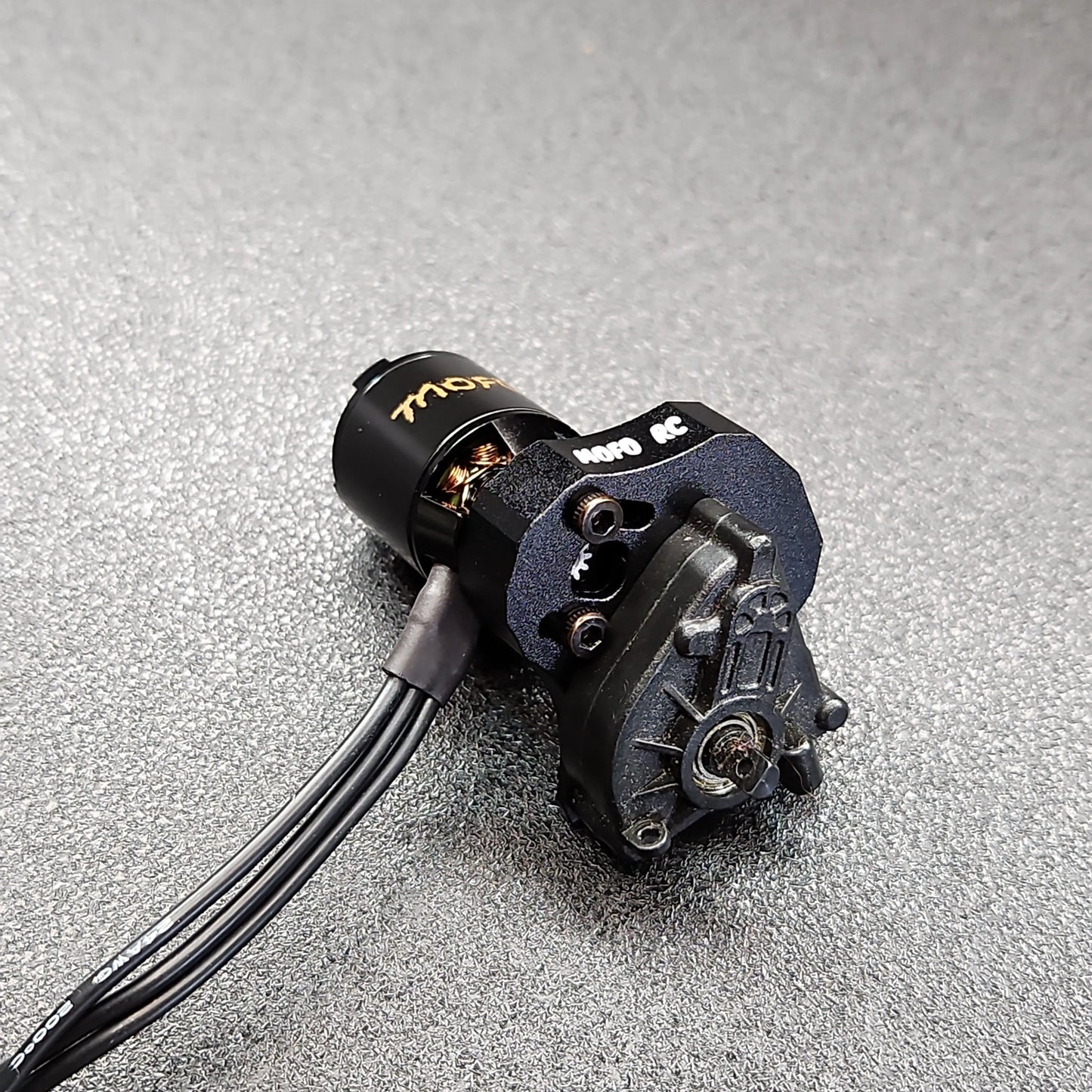

The NanoBam is our most popular nano/compact sized brushless motor. With more torque and a small speed increase over our NanoBeast, it is the perfect all-around setup for most vehicles. With our LCG mount, you can often fit extras such as interiors in a small body.
Includes
Mofo RC | NanoBam Motor w/ Pinion of Choice
Mofo RC | 9mm Aluminum Forward Facing Mount
Specs and Dimensions
KV
3500
Voltage
2-3s Lipo
Bolt Pattern
9mm
Poles
12 Pole, 9 Slot
Stator Diameter/Length
12mm x 11mm
Shaft Diameter
1.5mm (Accepts Press-Fit Pinions Only)
Case Diameter/Length
16.3mm x 21mm
Weight
16 grams
Wire Length
125mm
Connector
Standard PH2.0 3 pin
Notes: This combo may require some plastic trimming in stock vehicles or moving of components like the battery tray.
