Mofo RC | NanoBeast 3200kv Brushless Motor + Standard LCG Mount/Transmission (For Axial® SCX24™/AX24™)
Mofo RC | NanoBeast 3200kv Brushless Motor + Standard LCG Mount/Transmission (For Axial® SCX24™/AX24™)
Regular price
$94.99 USD
Regular price
Sale price
$94.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The NanoBeast is our most compact brushless motor, delivering impressive power despite its size. Measuring only 14.6mm in diameter and 20.5mm in length, it’s designed to fit into the tightest spaces. Its dimensions have been precisely optimized to provide maximum power, speed, and smooth throttle control within the smallest possible form factor.

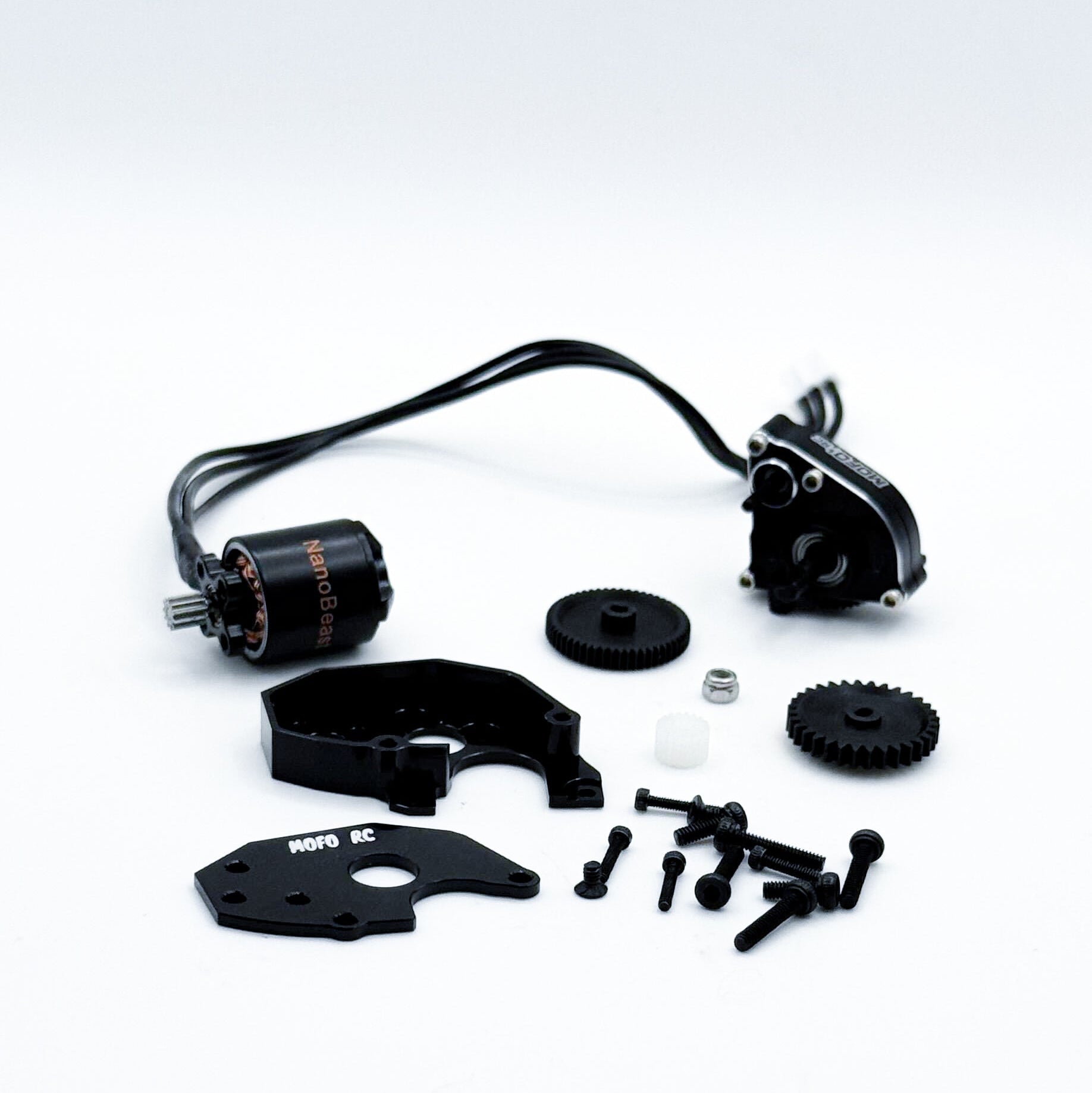

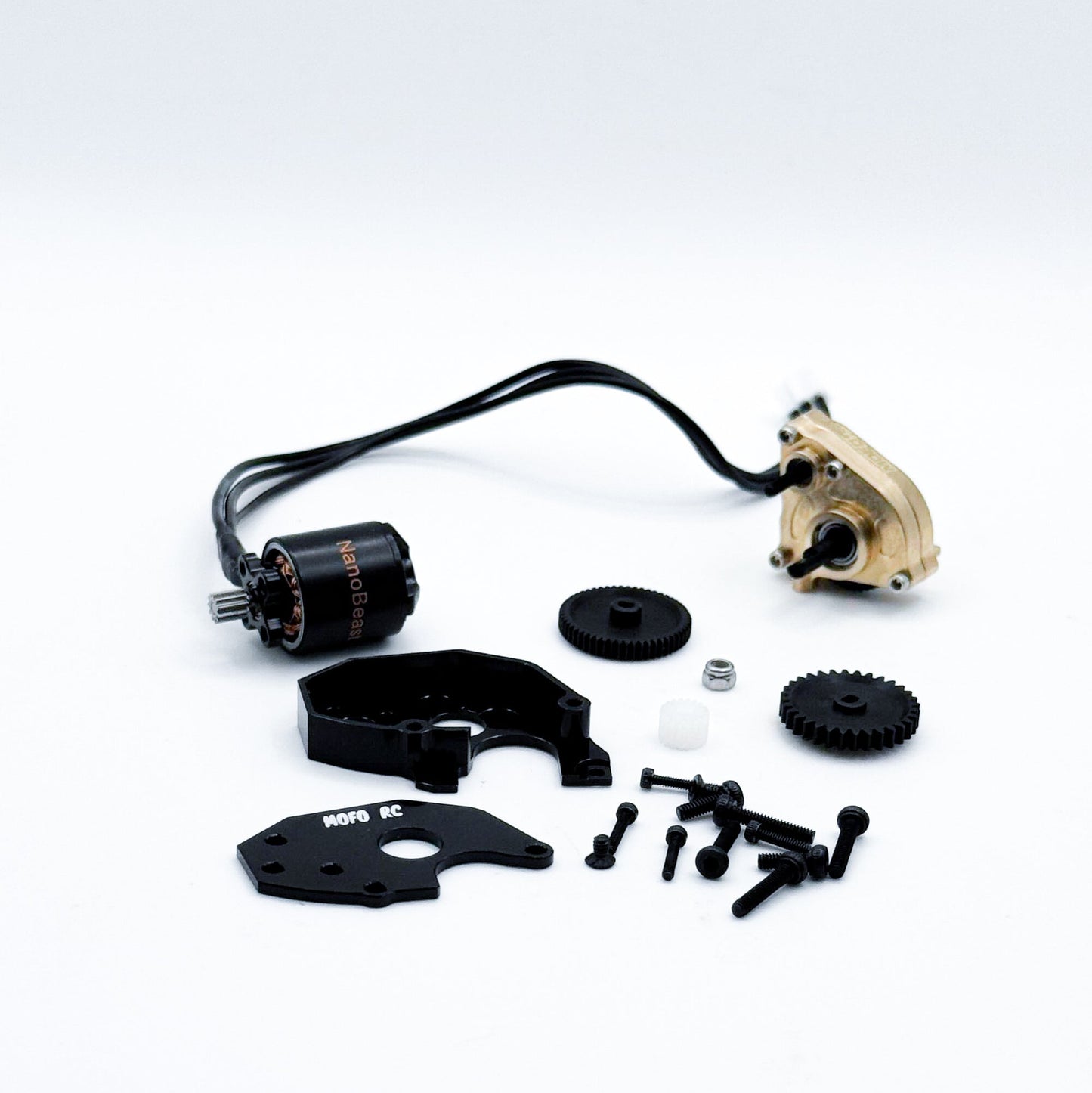

Includes
- Mofo RC | NanoBeast Motor w/ Mod.3 11t Pinion
- Mofo RC | 9mm Aluminum LCG Motor Mount w/Transfer Gear

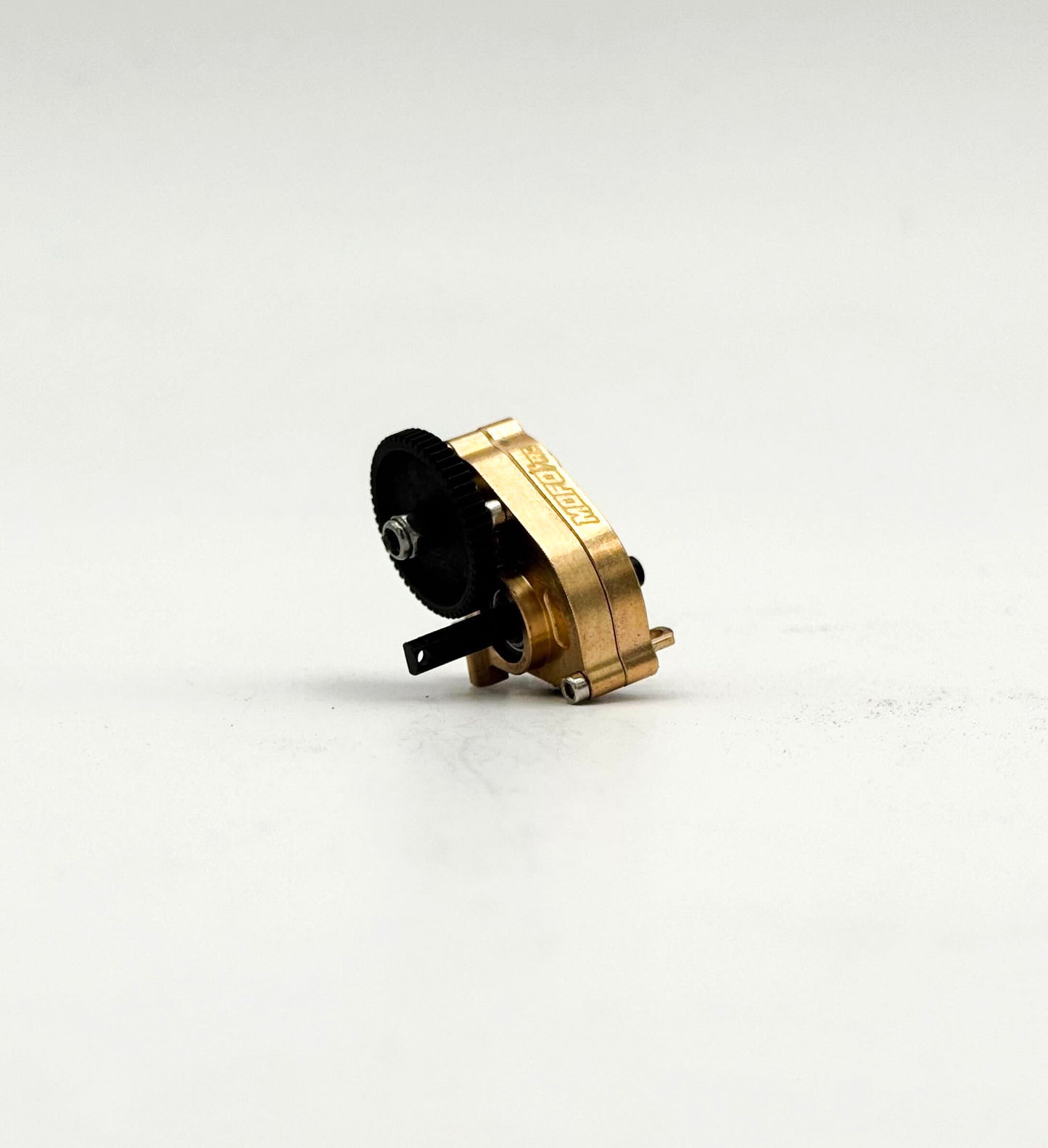

- Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
Specs and Dimensions
| KV | 3200 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 11mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 14.6mm x 20.5mm |
| Weight | 13 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
