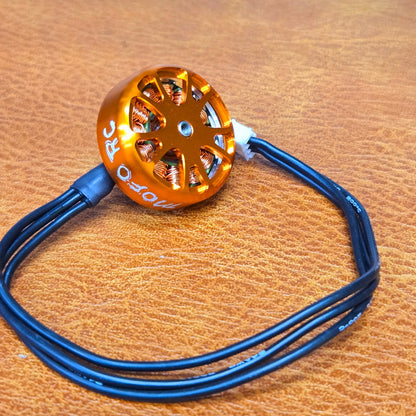

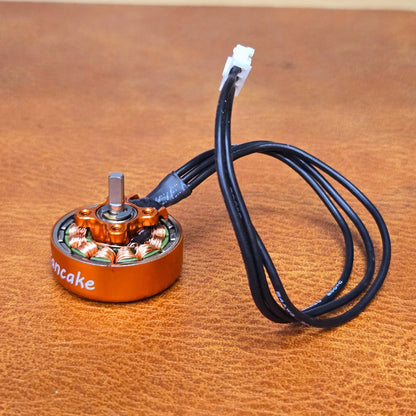

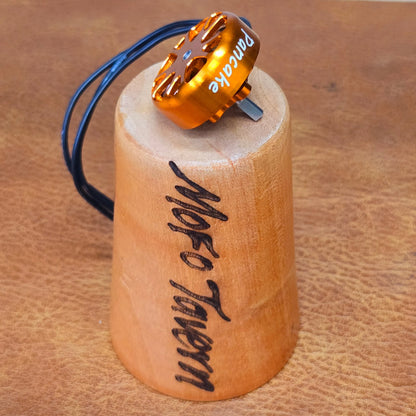

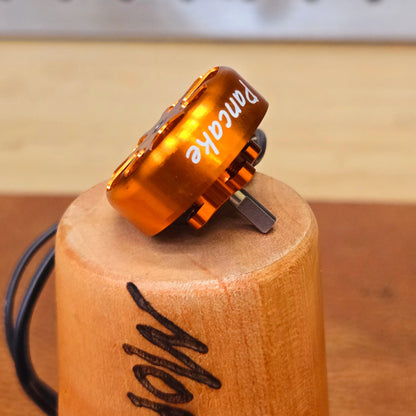

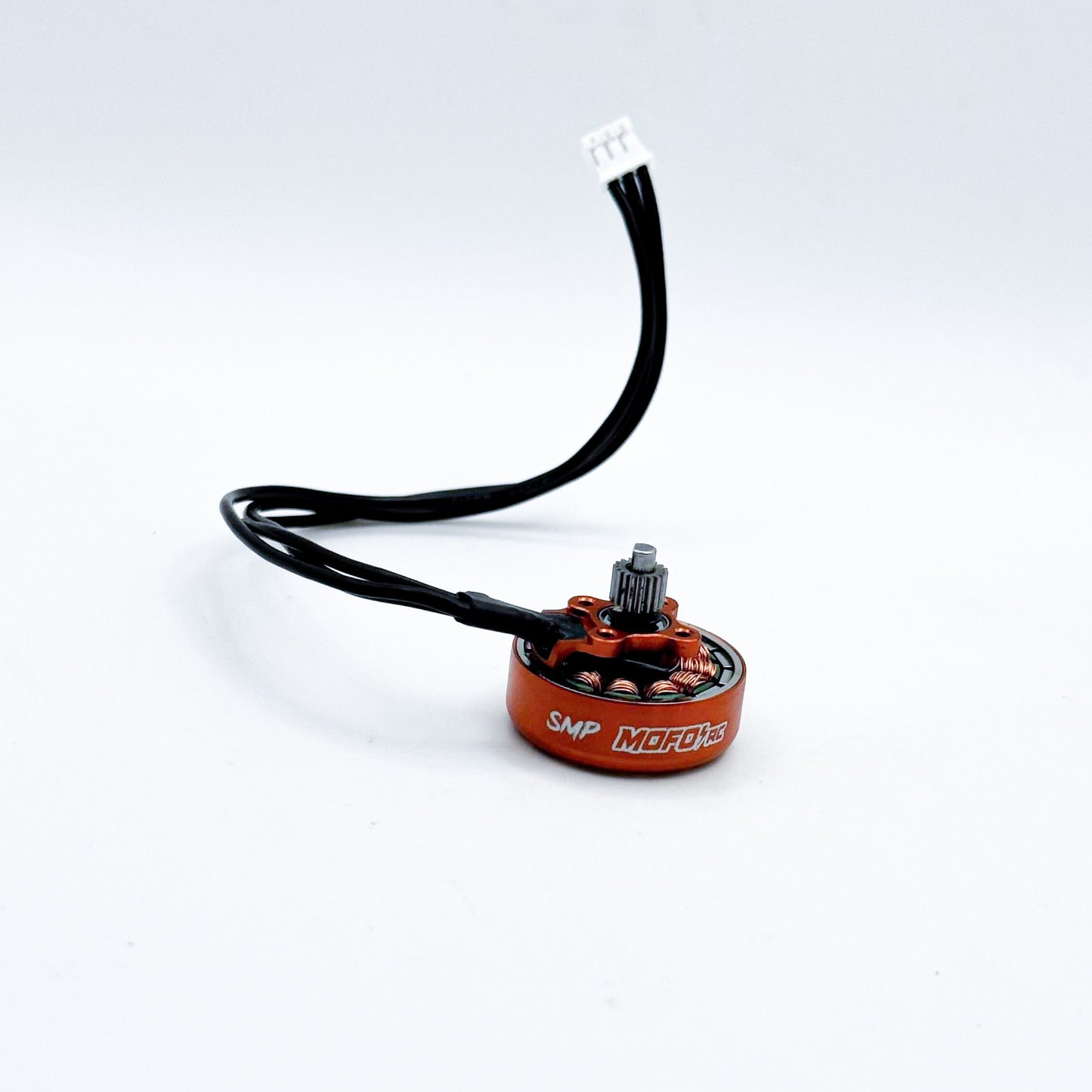

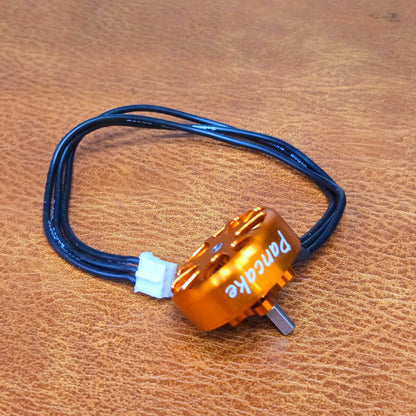

Mofo RC | SMP 1700Kv Brushless Pancake Motor
Mofo RC | SMP 1700Kv Brushless Pancake Motor
Regular price
$35.99 USD
Regular price
Sale price
$35.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The SMP Motor from Mofo RC features a 1700 Kv rating and supports 2s, 3s, and even 4s power configurations. Renowned for its exceptional smoothness and precision, it delivers substantial torque and refined low-speed control, particularly when paired with the Rockwolf ESC.
Click here for the Motor Mount
Specs and Dimensions
| KV | 1700 |
| Voltage | 2-4s Lipo |
| Poles | 14 Pole, 12 Slot |
| Stator Diameter/Length | 20mm x 4mm |
| Shaft Diameter | 3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions) |
| Case Diameter/Length | 25.6mm x 13.4mm |
| Weight | 18 grams |
| Wire Length | 160mm |
| Connector | Standard PH2.0 3 pin |
Gear Options
- Mod.3
- 18t Pinion Gear- Standard
- 20t Pinion Gear- Slight Speed Boost
- Mod.5
- 11t Pinion Gear- Standard
- 13t Pinion Gear- Slight Speed Boost
