Mofo Rc

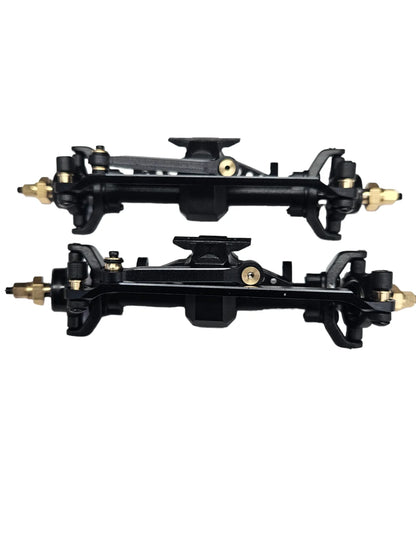

X15 Front and Front Nylon Axle Set For 4 wheel steering Scx24 / AX24

X15 Front and Front Nylon Axle Set For 4 wheel steering Scx24 / AX24

Regular price $99.99 USD
Regular price $99.99 USD Sale price $99.99 USD
Sale Sold out

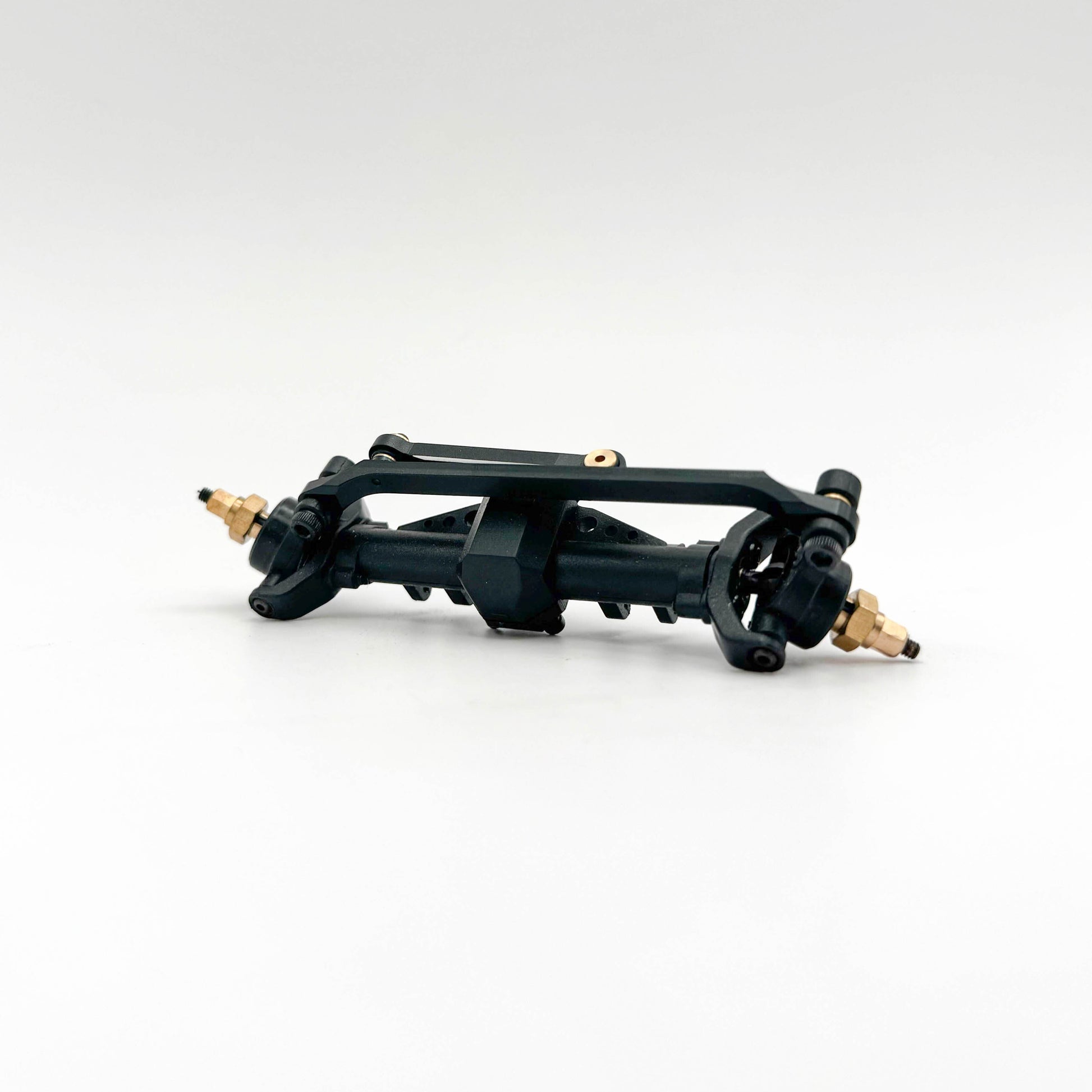

This is the V2 Nylon Front and Front X15 axle Set for 4 wheel steering Axial Scx24 / Ax24

READ FULL DESCRIPTION

Check out the steering comparison here

X15 Axles from Mofo RC,  These new axles are the 1 ton equivelant of a real axle scaled down into the 24th scale dimension. EVERY OTHER AXLE THUS FAR - has been a 1/2 ton axle compared to these. The power demands and crazy gear ratios we send at axles just dont hold up.... NOT ANY MORE! The X15 is a 7.5mm per side extension in width when compared to the stock scx24 / ax24 axles for a total of 15mm extra width.  A few notable changes from V1, These axles are underdriven. See below. Also the V2 does not require changing out to 1.6mm link balls these now work with all standard 1.4mm scx24 / ax24 links and link balls and shocks.

Click Here for the X15 Brass Upgrades. There will be many more to come.

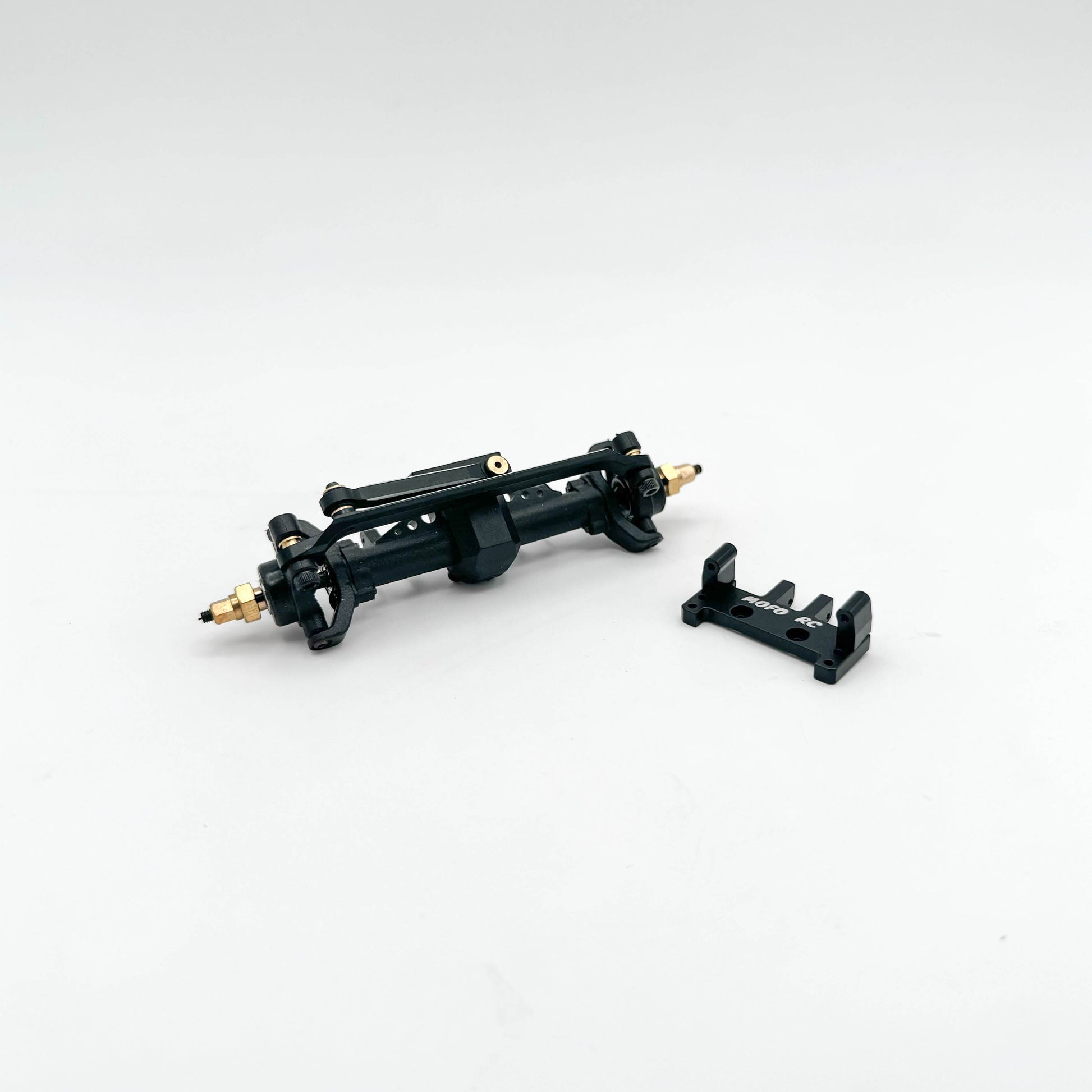

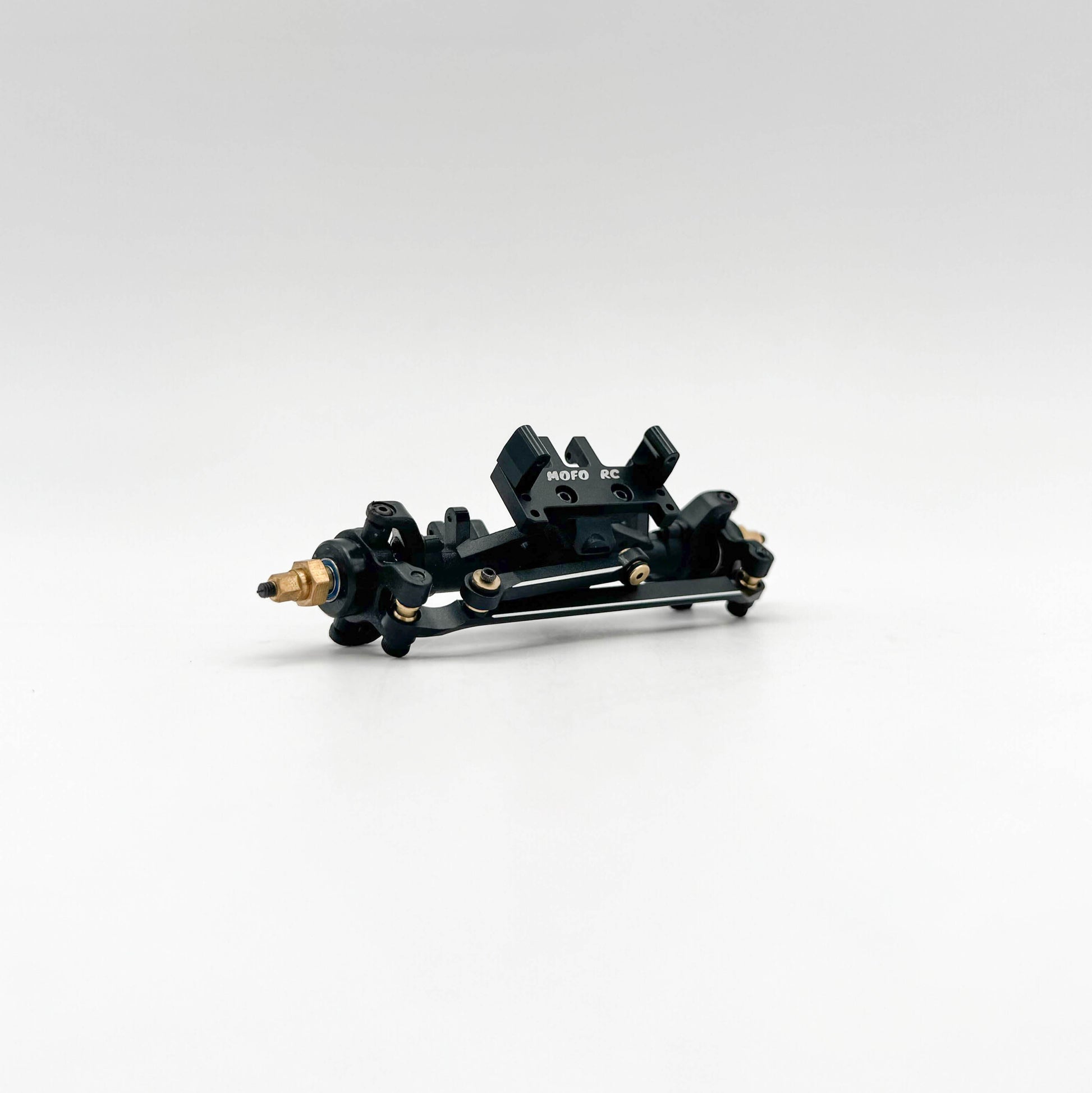

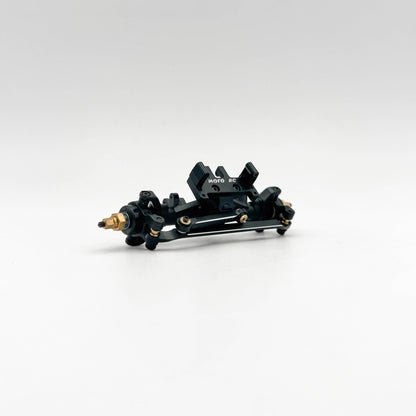

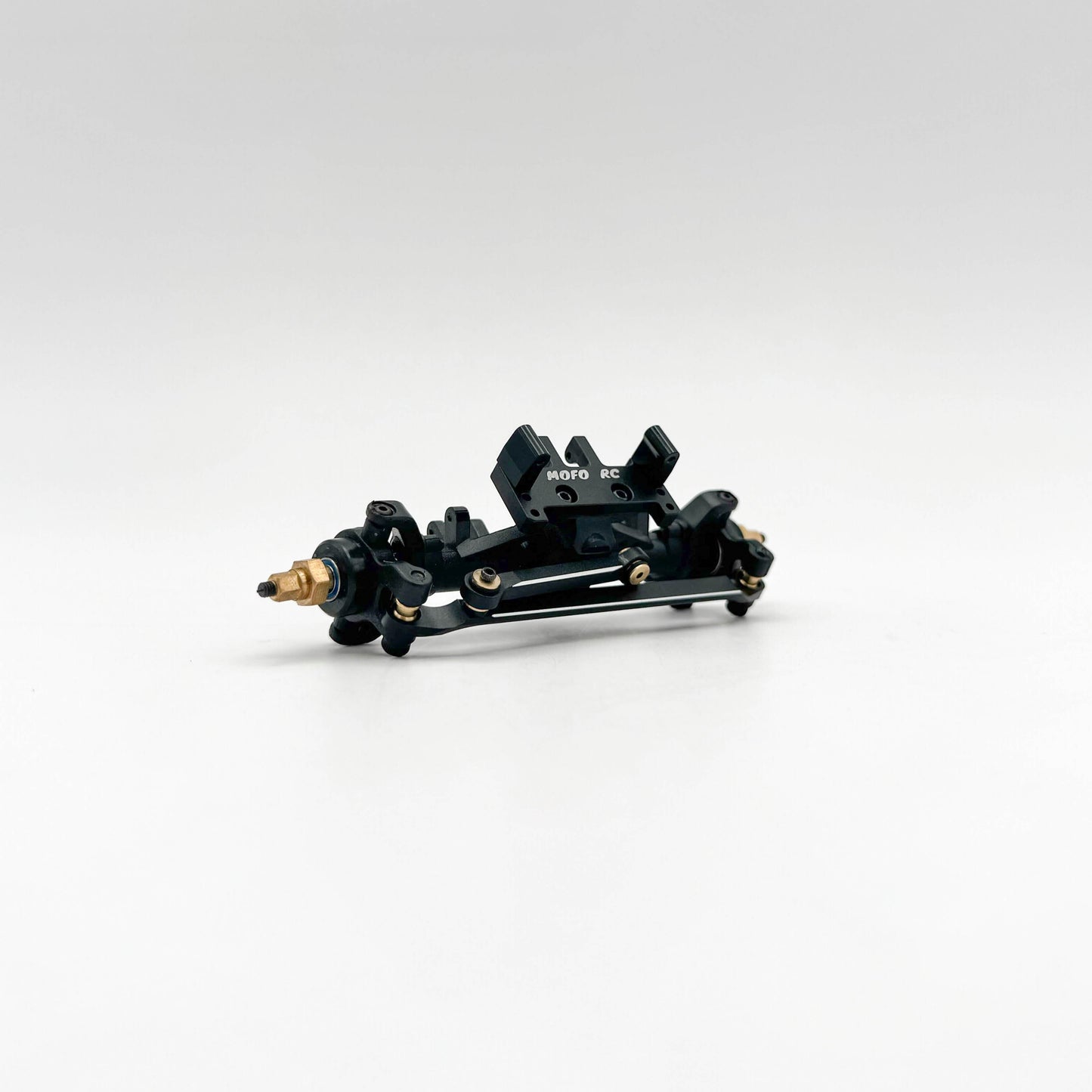

These new axles come pre-loaded with full high speed bearing kits... They come out of the box with a Mofo Rc Adapted Stronger Top Bolt Designed servo mount that includes the "BSME" Best Servo Mount Ever Made from mofo rc for X15s. Tons have Copied our revolutionary mount design that allows you to adjust the mouting depth of your steering servo forwards or backwards for clearance on your scx24 and ax24.

The CVD Axle joints in the front axles are nearly THREE times the diameter of the stock scx24 and ax24 axle shafts, And Nearly twice the size of all the aftermarket scx24 CVD Joints.

The axle shafts have a larger diameter thread pitch as well, However the inculded Brass axle to wheel nuts use the standard 4mm tool for increased Wheel choice options. Please use loctite on the wheel nuts as these do not have Nylon locks. Should you wish to use Nylon lock nuts these also include a set of them as well. And will accept any TRX4-m based fake hub wheel nuts.

Axle housings are Nylon for a nice slippery surface with for ease of going over rocks.

Axles should accept all scx24 links and shocks and are in the same locations as the stock axles to reduce unwanted binding.

Included is the new super high clearance steering link as well to reduce the chance of Clobbering it onto rocks.

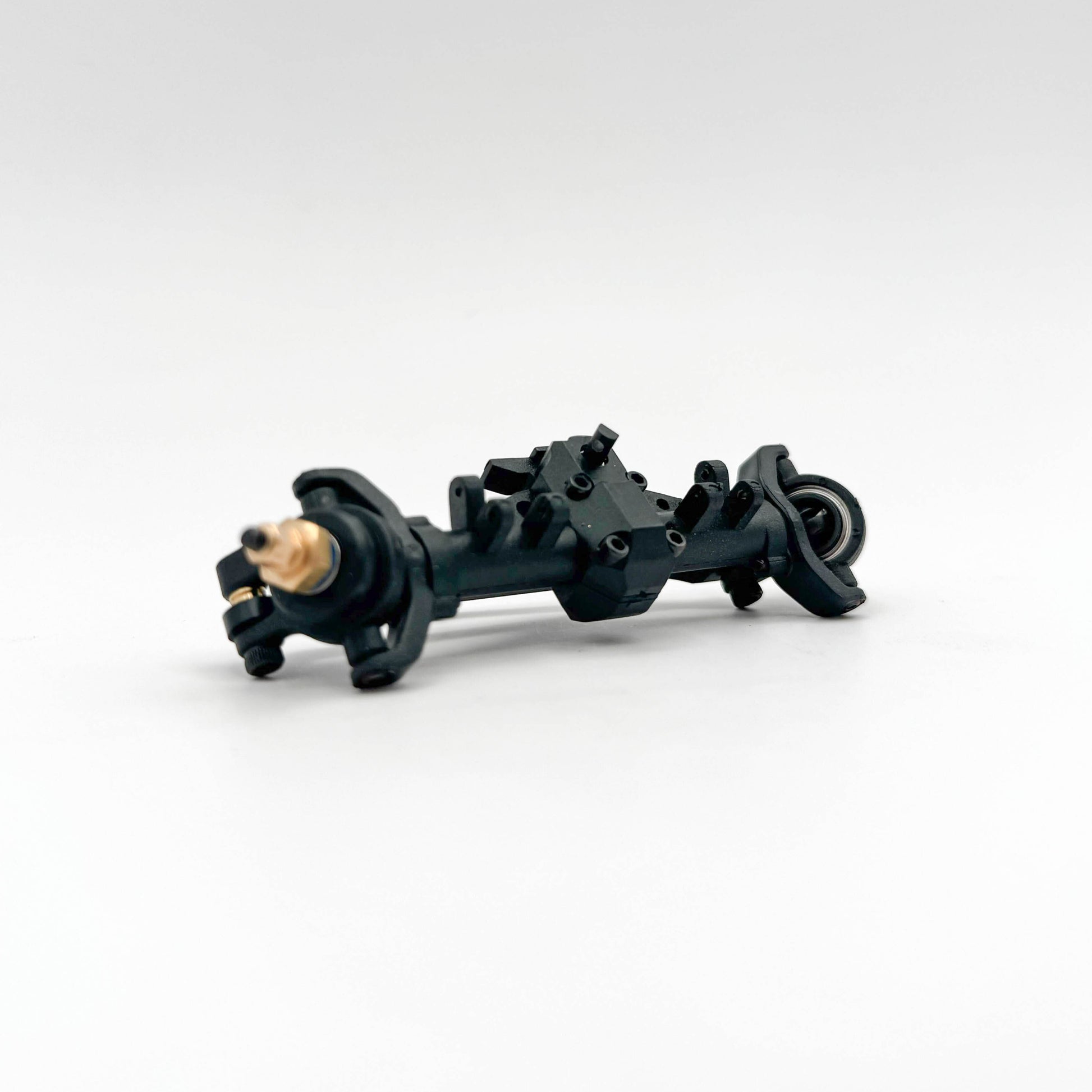

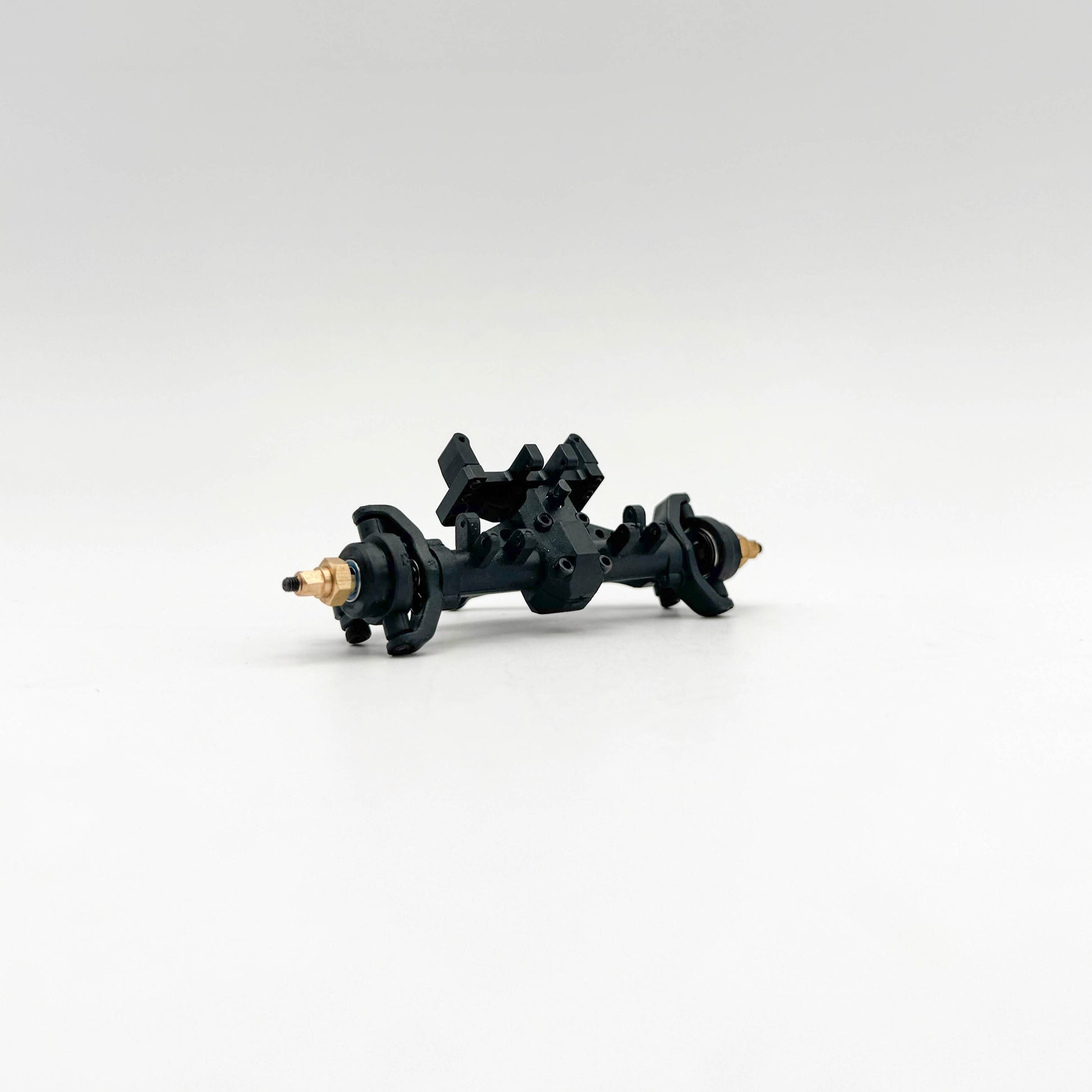

Diff gears drop out of the back of the axle housings to reduce the amount of junk getting stuck into the bolt heads and hitting rocks and provide a nice clean smooth surface.

Brass Wheel Hexes, Hex pins, And Brass Wheel nuts are included. The axles are Worm gear driven and can use any standard or aftermarket gears including under / overdrive worm gears sold at mofo rc, Included are Underdrive 50% pitch Steel top gear and Brass lower gear locker both front and rear for super smooth operation with no break in, Much higher torque and to provide a failure point in a serious Brushless Bind up situation of wheel stuckness. To Speed them back up if so desired you can install the stock gears from any scx24 in the front and rear, Or only up front to provide instant overdrive in front. Or any combo of gearing so desired. If you do not want to be underdriven do this when first greasing up the axles.

Everything is pre-installed except for the steering servo mount. YOU WILL need to dissassemble the axles and grease the internals we recommend COW RC UDDER BUTTER

Some things you will want and are not included are as follow, A good set of driver tools, .050, 1.5, 4.0 box for included brass wheel nuts, 5.0 box if using the included nylon lock wheel nuts. The stock scx24 link screws can be a bit short and do not grab well. Consider m1.4x10mm screws for the lower links, the stock upper link screws will work fine for rear and front 4 link uppers and included is a m1.4x12mm for those using the stock front upper Y-link. Some axle grease. They are shipped DRY and must be lubed. Loctite for brass wheel nuts and other parts going into aluminum you dont want falling out later.

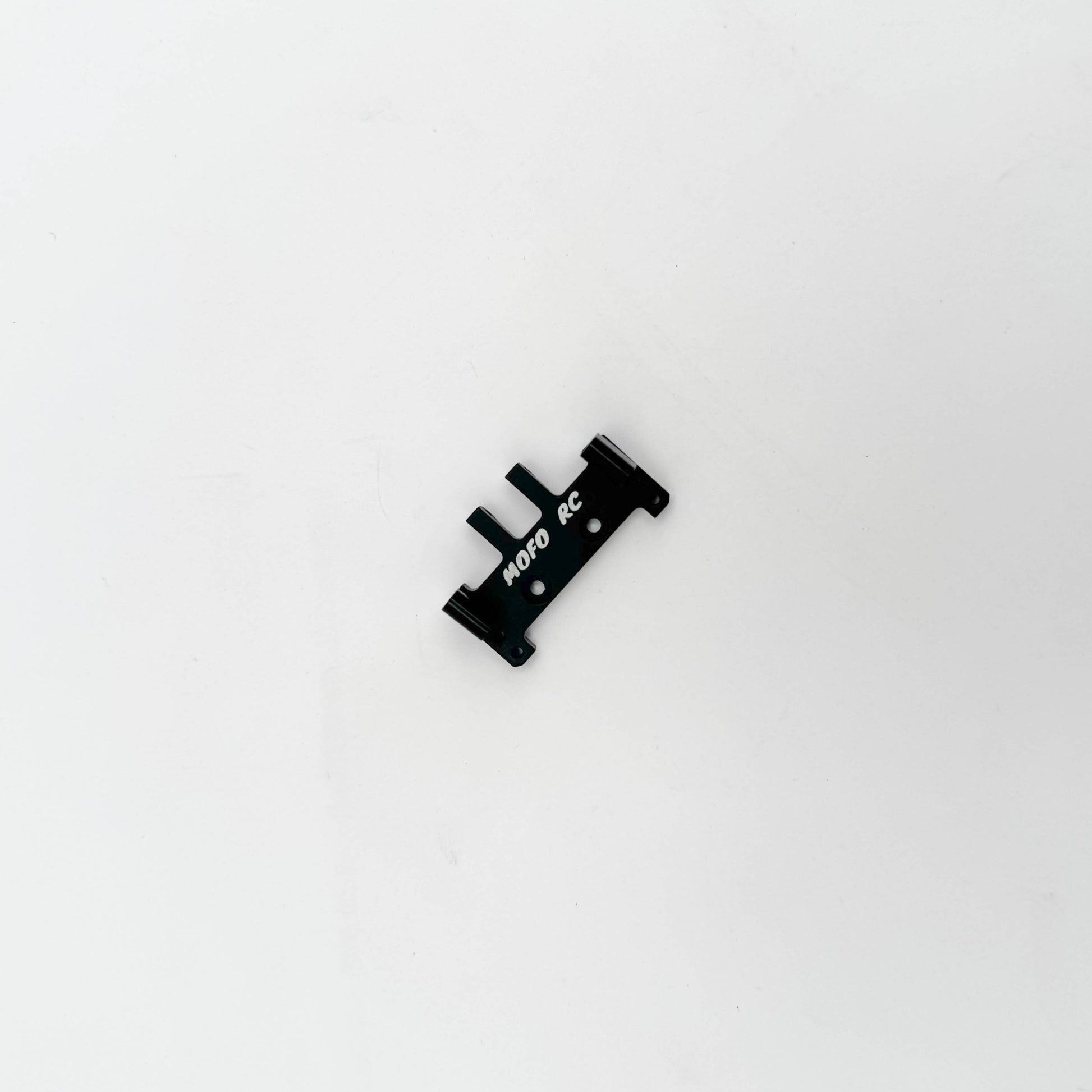

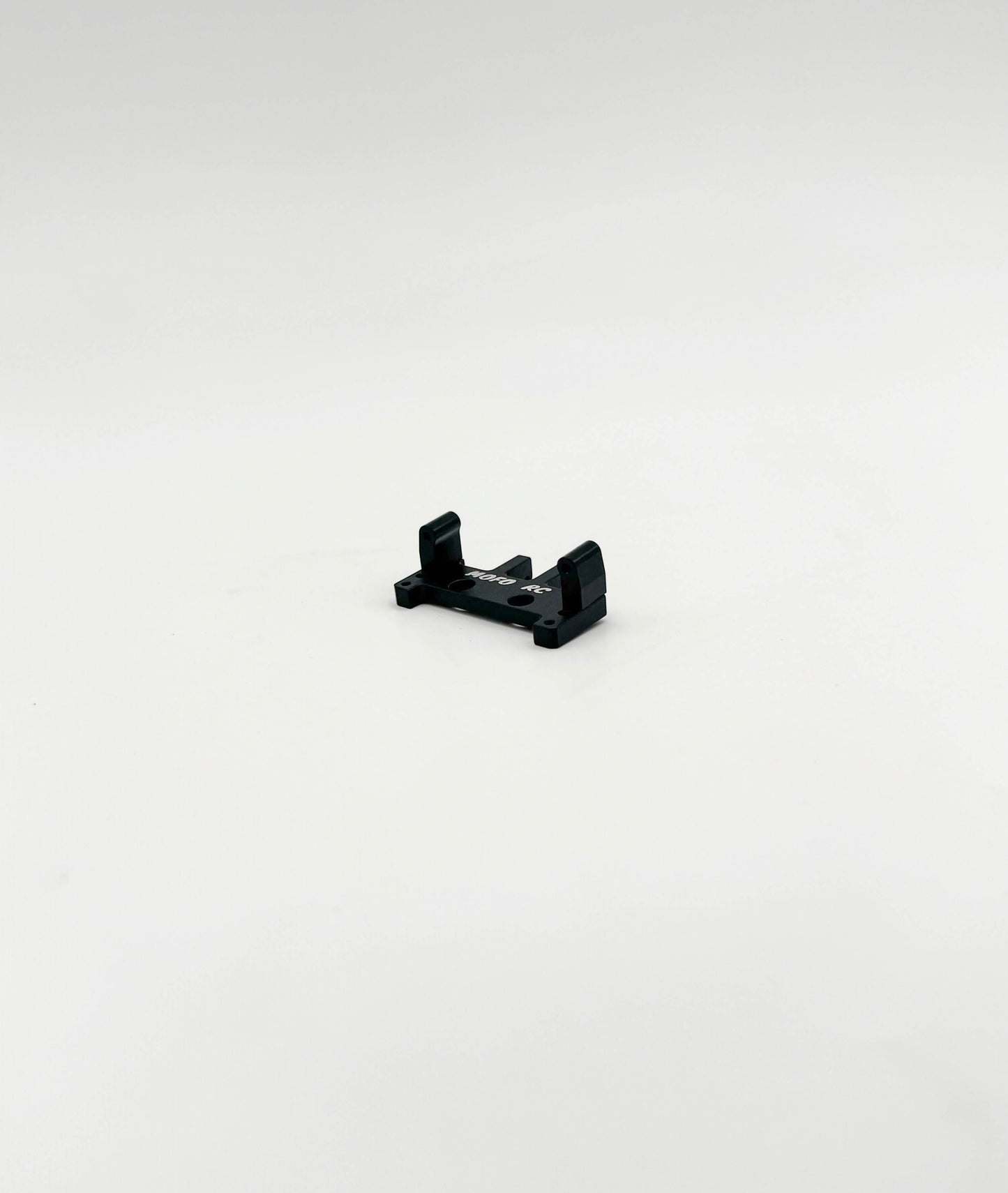

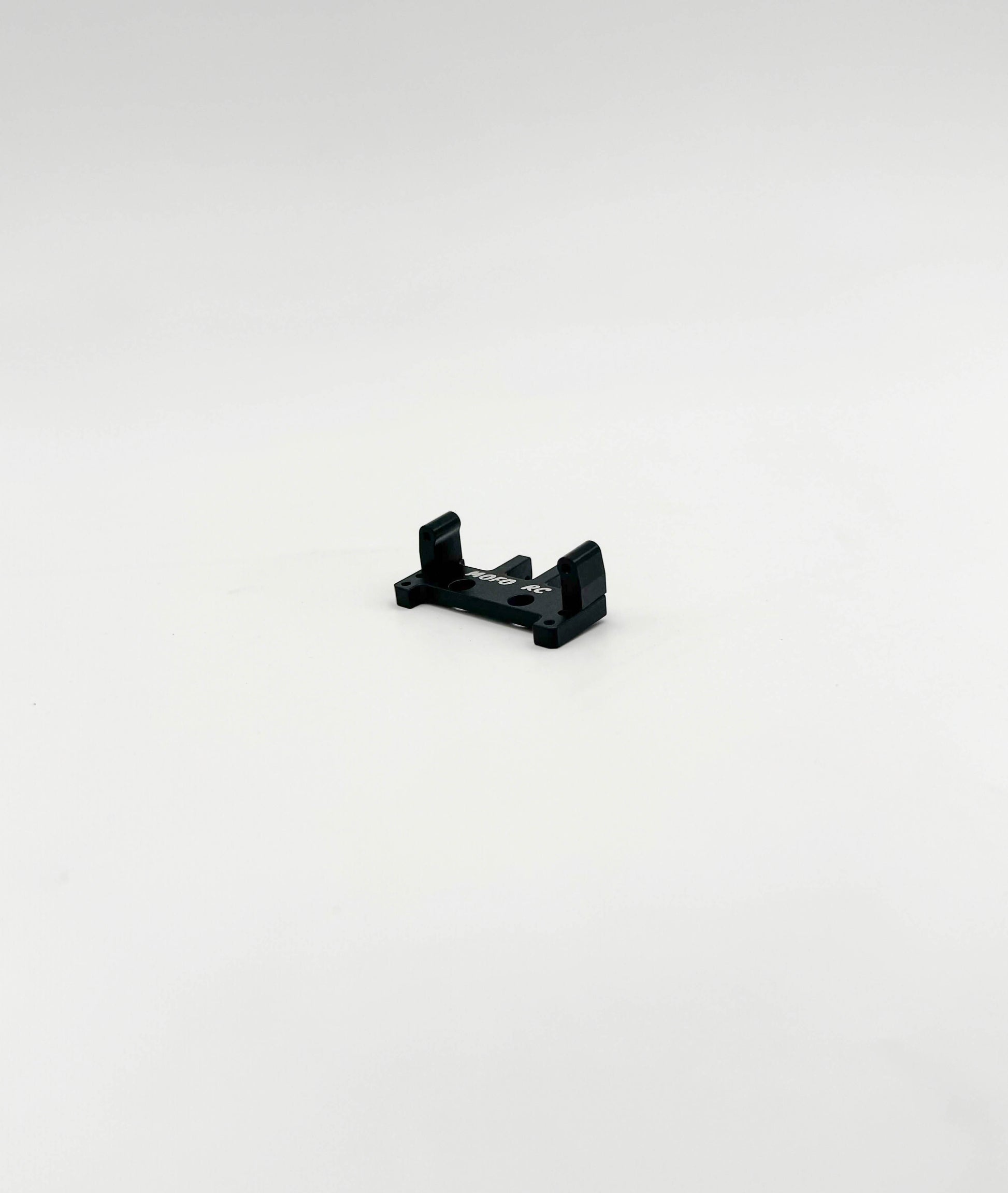

The Included BSME style servo mount will fit nearly every servo on the market. BUT it can be a little tricky to install. You must install the plate to the axle first, Then install the included screws to hold the servo upright posts. Then install your servo. TAKE YOUR TIME, If you destroy the upright posts they are available right HERE

Here is a usefull screw and nut pack should you be found wanting.

Weights of complete axles

*Each Front Axle 35g
